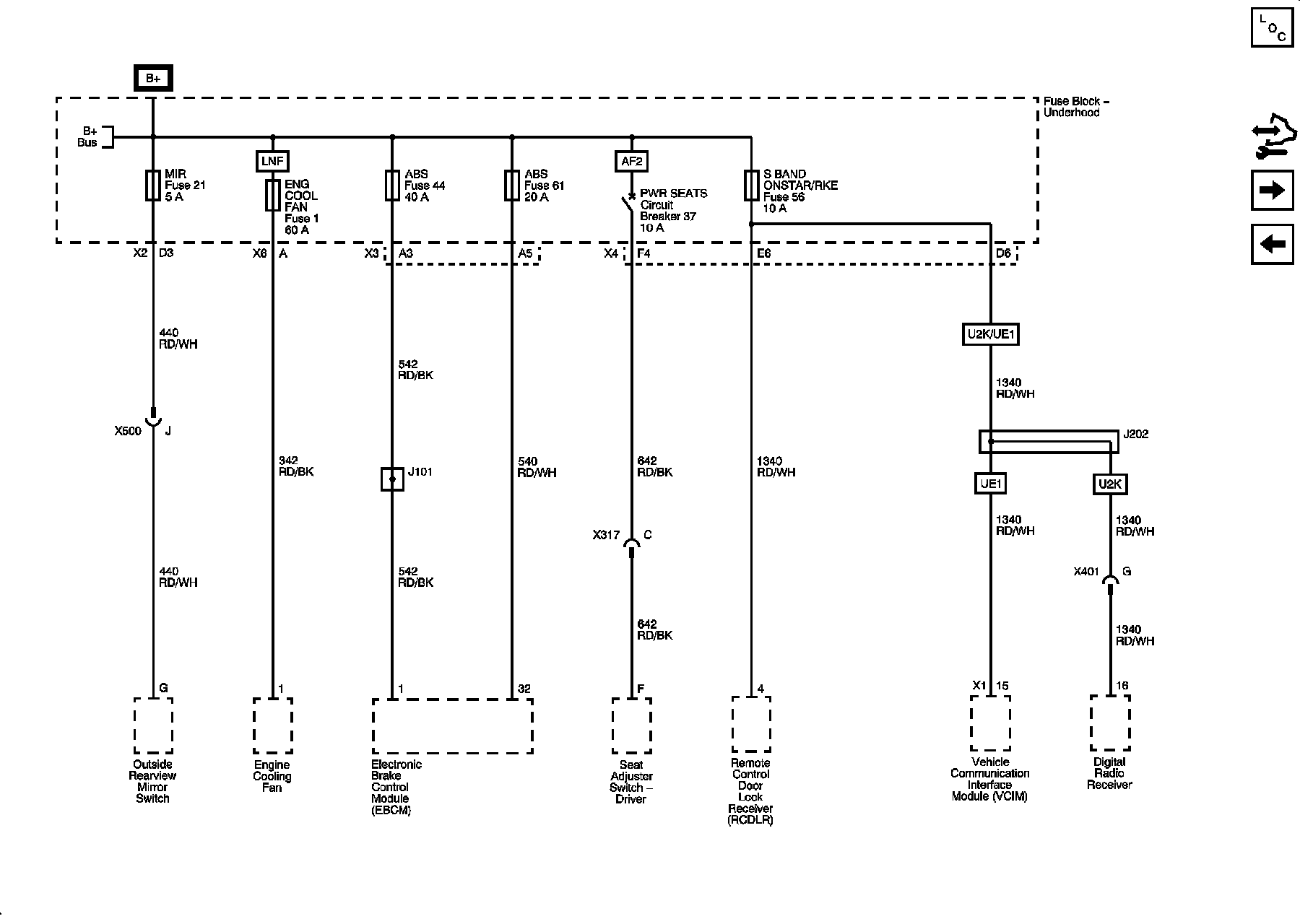

Power Distribution Diagram 6




Power Distribution Schematics

MIR, ENG COOL FAN, ABS, S-BAND ONSTAR/RKE Fuses and PWR SEATS Circuit Breaker
