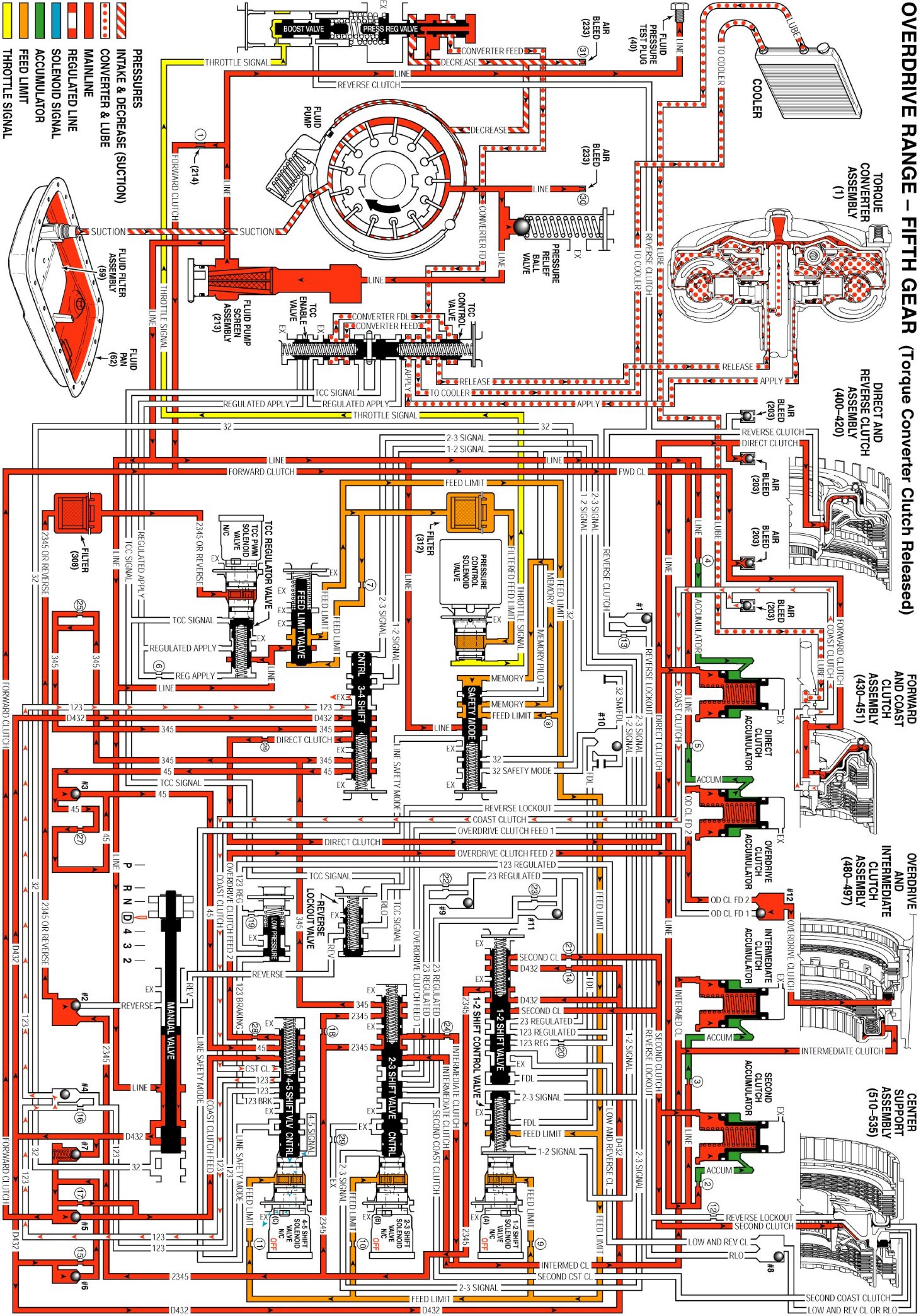

Overdrive Range, Fifth Gear - Torque Converter Clutch Released




Overdrive Range, Fifth Gear - Torque Converter Clutch (TCC) Released

Overdrive Range, Fifth Gear - Torque Converter Clutch (TCC) Released:
