Home >> Pontiac >> 2009 >> Solstice L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Transmission Speed Sensor, A/T >> Automatic Transmission Input Speed Sensor (ISS), Wiring Harness Side (M82)

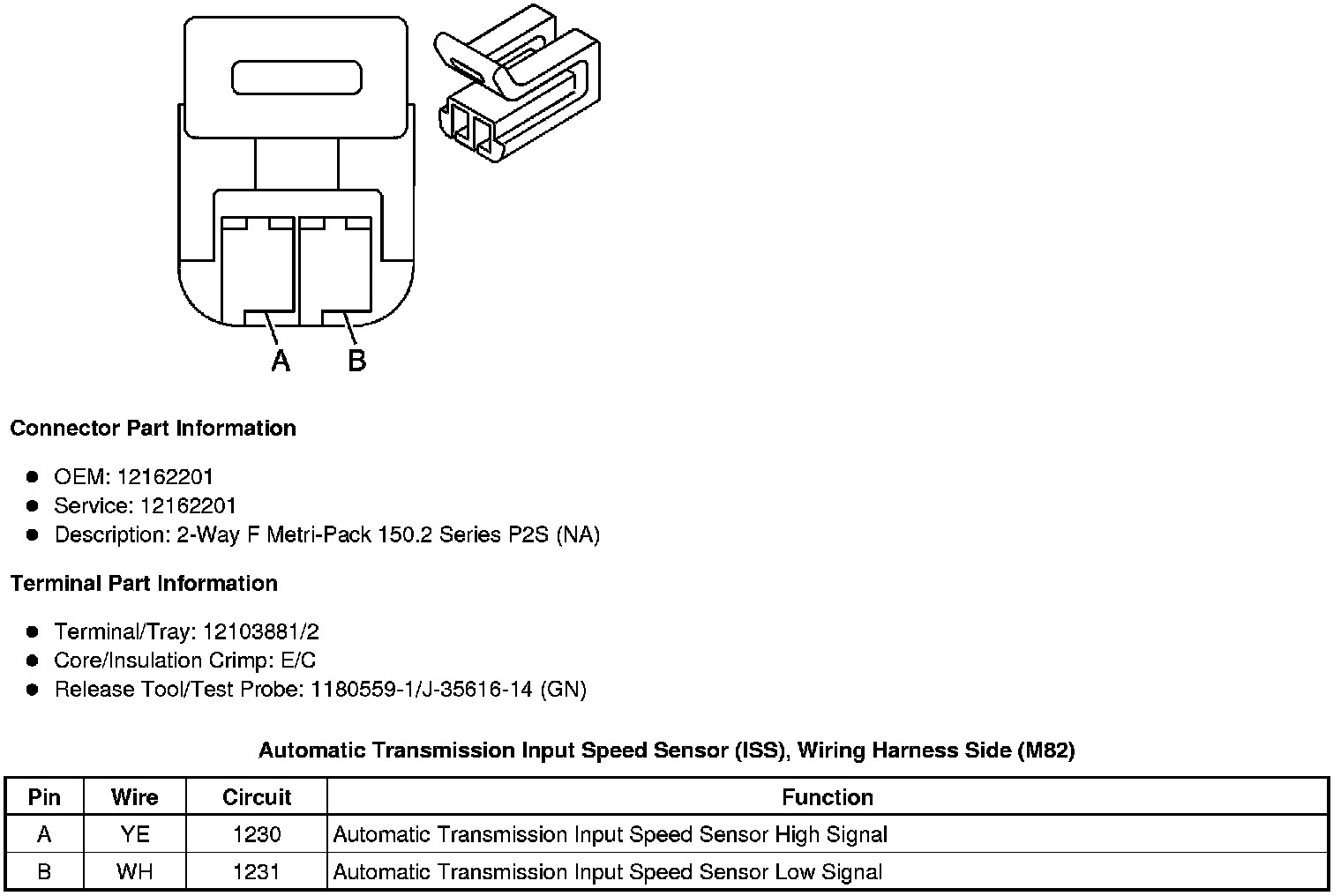

Automatic Transmission Input Speed Sensor (ISS), Wiring Harness Side (M82)

Component Connector End Views

Automatic Transmission Input Speed Sensor (ISS), Wiring Harness Side (M82)
