Home
>>
Pontiac
>>
2009
>>
Solstice L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
X200 - X299
>>
X208
X208

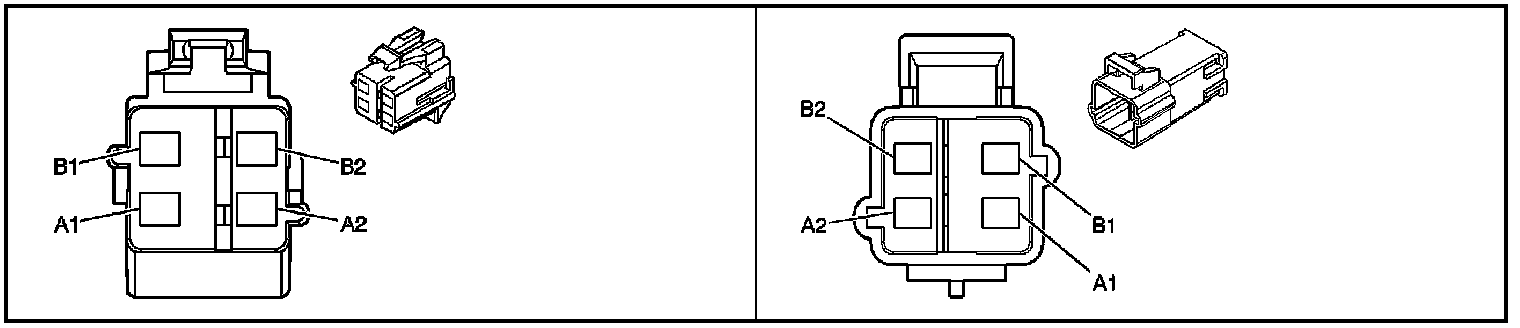

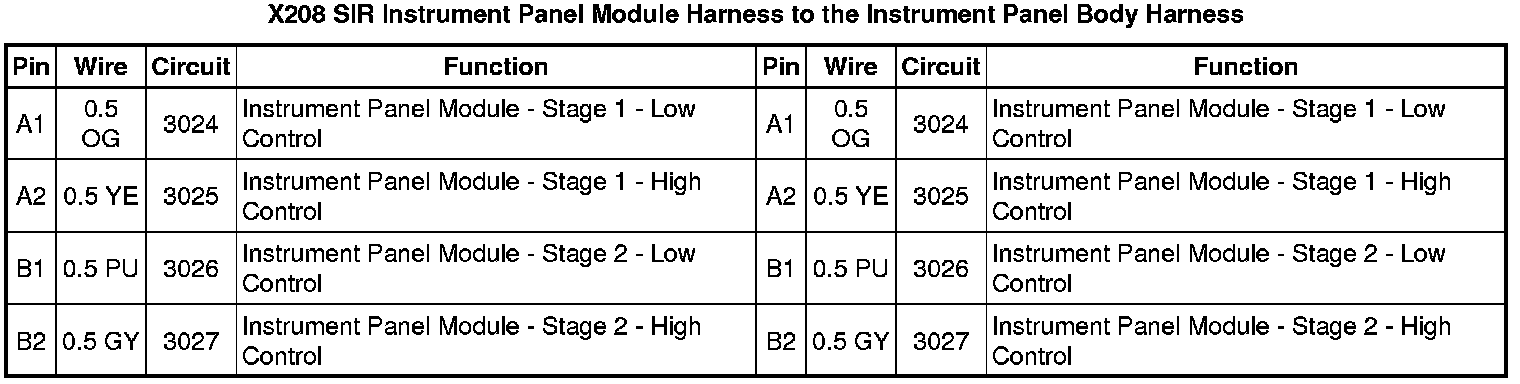

X208 SIR Instrument Panel Module Harness to the Instrument Panel Body Harness
