Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Pontiac
>>
2009
>>
Solstice L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Fuel Injector
>>
Diagrams
>>
Fuel Injector 4
Fuel Injector 4

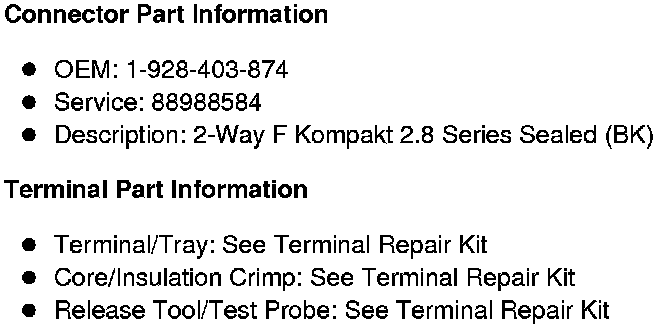

Component Connector End Views

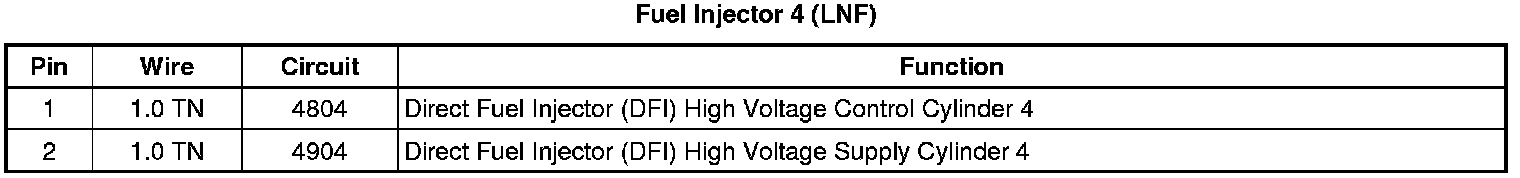

Fuel Injector
4 (LNF)
