Pontiac
>>
2009
>>
G8 V8-6.2L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution Diagrams
>>
G308
G308

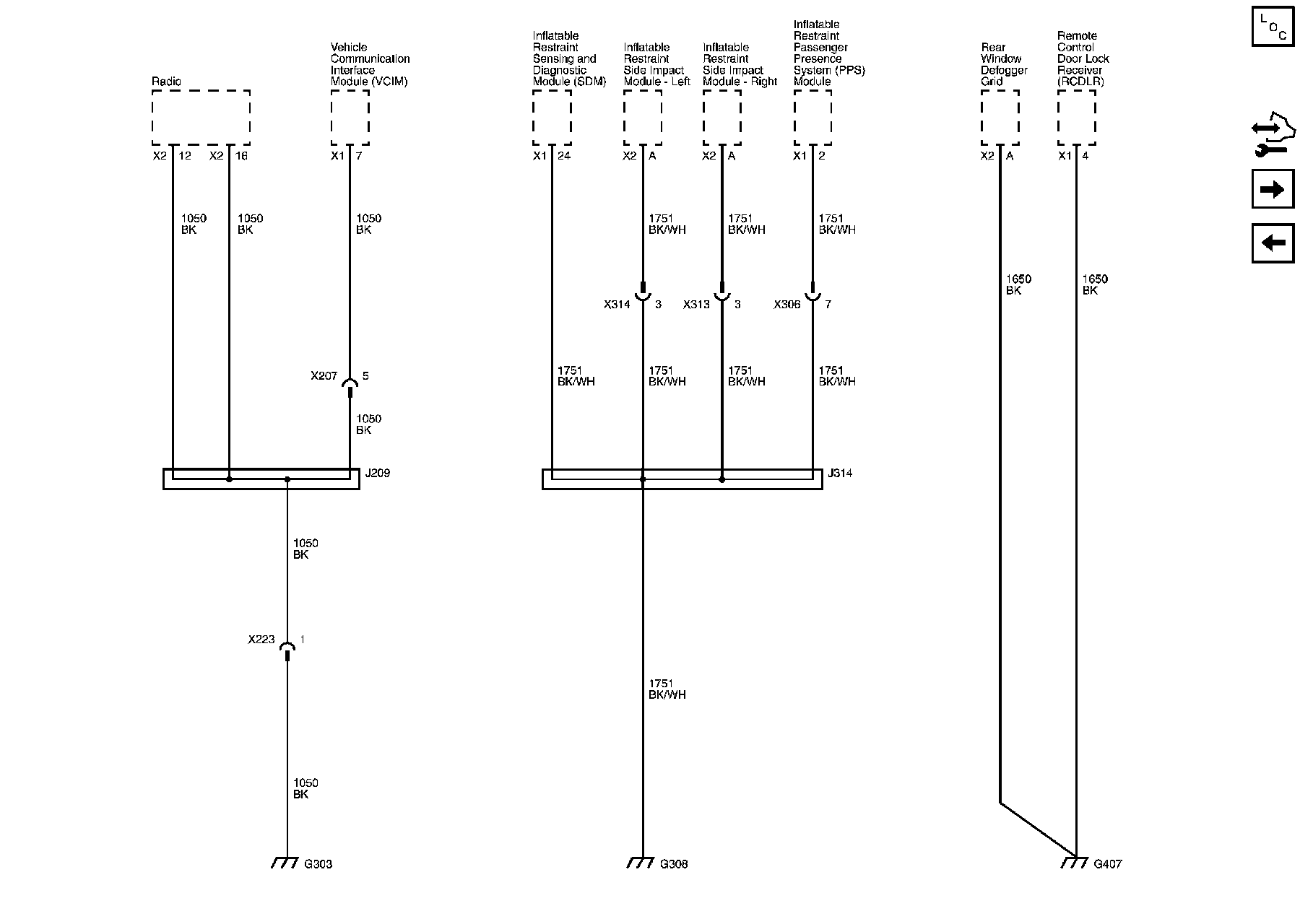

Ground Distribution Schematics
G303, G308 and G407
