Engine Mount Bracket Replacement - Right

Engine Mount Bracket Replacement - Right Side

Removal Procedure

Special Tools

EN 46114 Engine Lift Brackets

Danger: To avoid any vehicle damage, serious personal injury or death when major components are removed from the vehicle and the vehicle is supported by a hoist, support the vehicle with jack stands at the opposite end from which the components are being removed and strap the vehicle to the hoist.


Warning: Refer to Safety Glasses Warning (Safety Glasses Warning).

1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (Service and Repair).
2. Remove the engine splash shield. Refer to Engine Splash Shield Replacement (Service and Repair).




3. Remove the lower engine mount retaining nuts (1).
4. Lower the vehicle.




5. Position the EN 46114 (2) on the engine (1).

Caution: Refer to Fastener Caution (Fastener Caution).

6. Install the EN 46114 to cylinder head retaining bolts (3) and tighten to 50 Nm (36 lb ft).

Note: Use a suitable tool to raise the engine.

Note: When lifting the engine assembly, observe the clearance between the rear of the engine assembly and the dash panel.

7. Raise the engine until the weight of the engine is removed from the right hand engine mount.

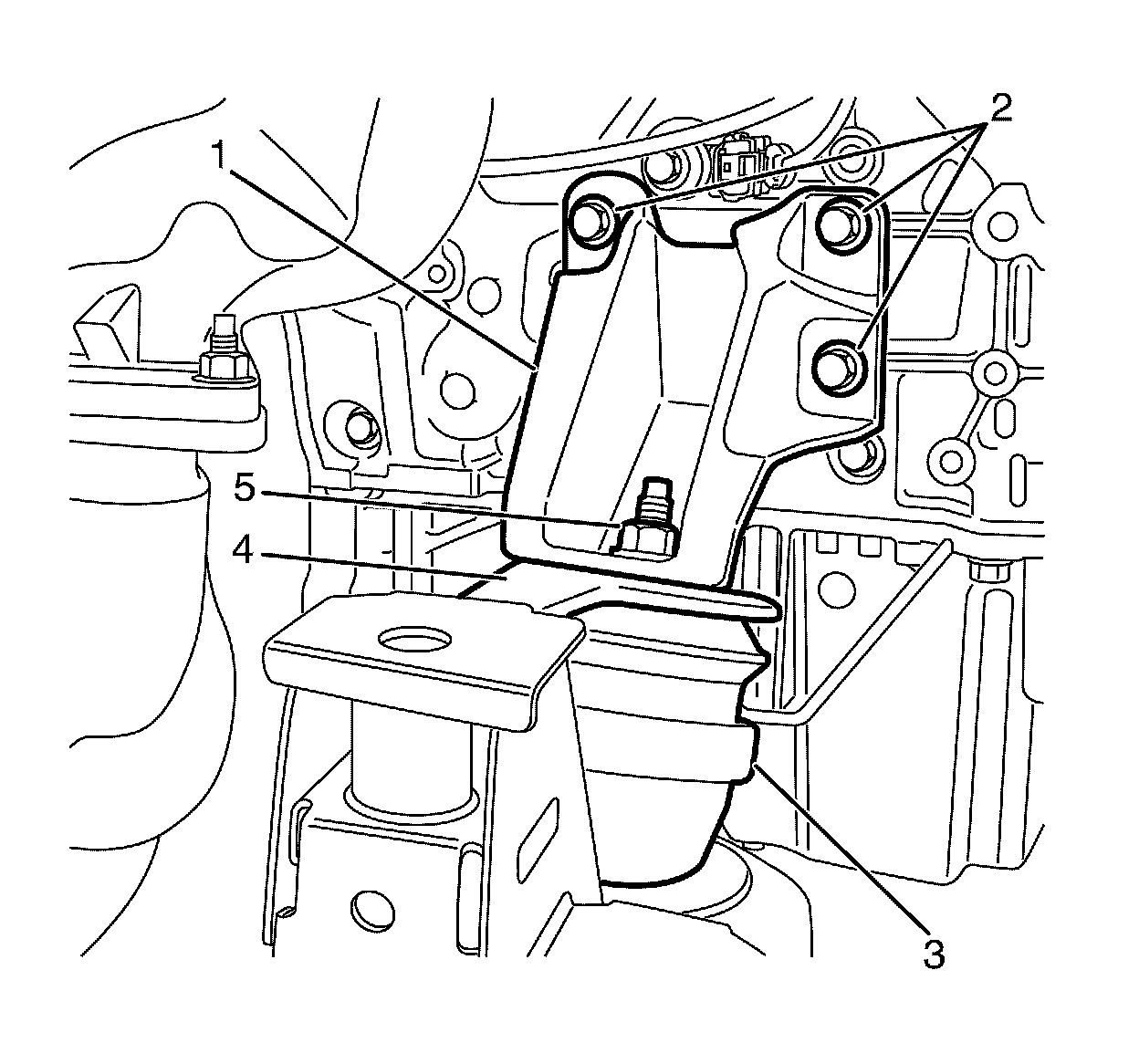

8. Remove the right hand engine mount to engine mount bracket retaining nut (5).

Important: If required, raise the engine further to provide adequate space.


Important: When lifting the engine assembly, observe the clearance between the rear of the engine assembly and the dash panel.


9. Remove the right hand engine mount (3) from the right hand engine mount bracket (1).

Note: DO NOT distort or bend the right hand engine mount heat shield (4).

10. Remove the right hand engine mount bracket to cylinder block retaining bolts (2).
11. Remove the right hand engine mount bracket (1).

Installation Procedure





Note: DO NOT distort or bend the right hand engine mount heat shield (4).

1. Install the right hand engine mount bracket (1).

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the right hand engine mount bracket to cylinder block retaining bolts (2) and tighten to 60 Nm (44 lb ft).
3. Position the right hand engine mount (3) on the right hand engine mount bracket (1).
4. Install the right hand engine mount to engine mount bracket retaining nut (5) and tighten to 80 Nm (59 lb ft).
5. Lower the engine until the weight is resting on the right hand engine mount.

Danger: To avoid any vehicle damage, serious personal injury or death when major components are removed from the vehicle and the vehicle is supported by a hoist, support the vehicle with jack stands at the opposite end from which the components are being removed and strap the vehicle to the hoist.


Warning: Refer to Safety Glasses Warning (Safety Glasses Warning).

6. Raise the vehicle.




7. Install the engine mount to front sub-frame retaining nut (1) and tighten to 80 Nm (59 lb ft).
8. Install the engine splash shield. Refer to Engine Splash Shield Replacement (Service and Repair).
9. Lower the vehicle to the ground.




10. Remove the EN 46114 to cylinder head retaining bolts (3).
11. Remove the EN 46114 (2) from the engine (1).
