Engine Mount Bracket Replacement - Left




Engine Mount Bracket Replacement - Left Side

Removal Procedure

1. Remove the left side engine mount. Refer to Engine Mount Replacement - Left Side (Service and Repair).

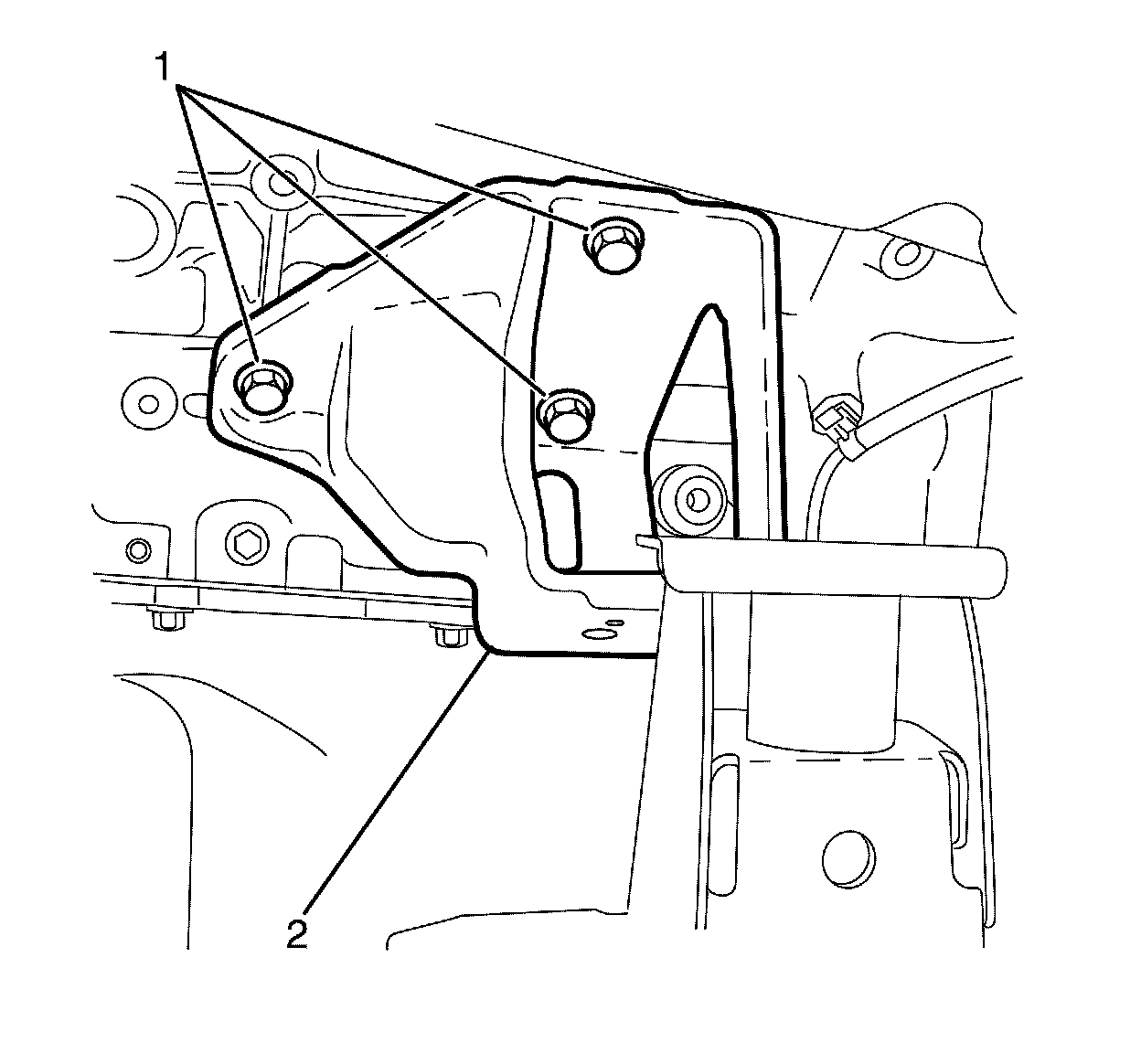

2. Remove the left side engine mount bracket to cylinder block retaining bolts (1).
3. Remove the left side engine mount bracket (2).

Installation Procedure




1. Install the left side engine mount bracket (2).

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the left side engine mount bracket to cylinder block retaining bolts (1) and tighten to 50 Nm (37 lb ft).
3. Install the left side engine mount. Refer to Engine Mount Replacement - Left Side (Service and Repair).
