Home
>>
Pontiac
>>
2009
>>
G8 V8-6.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Manual Transmission/Transaxle
Manual Transmission/Transaxle

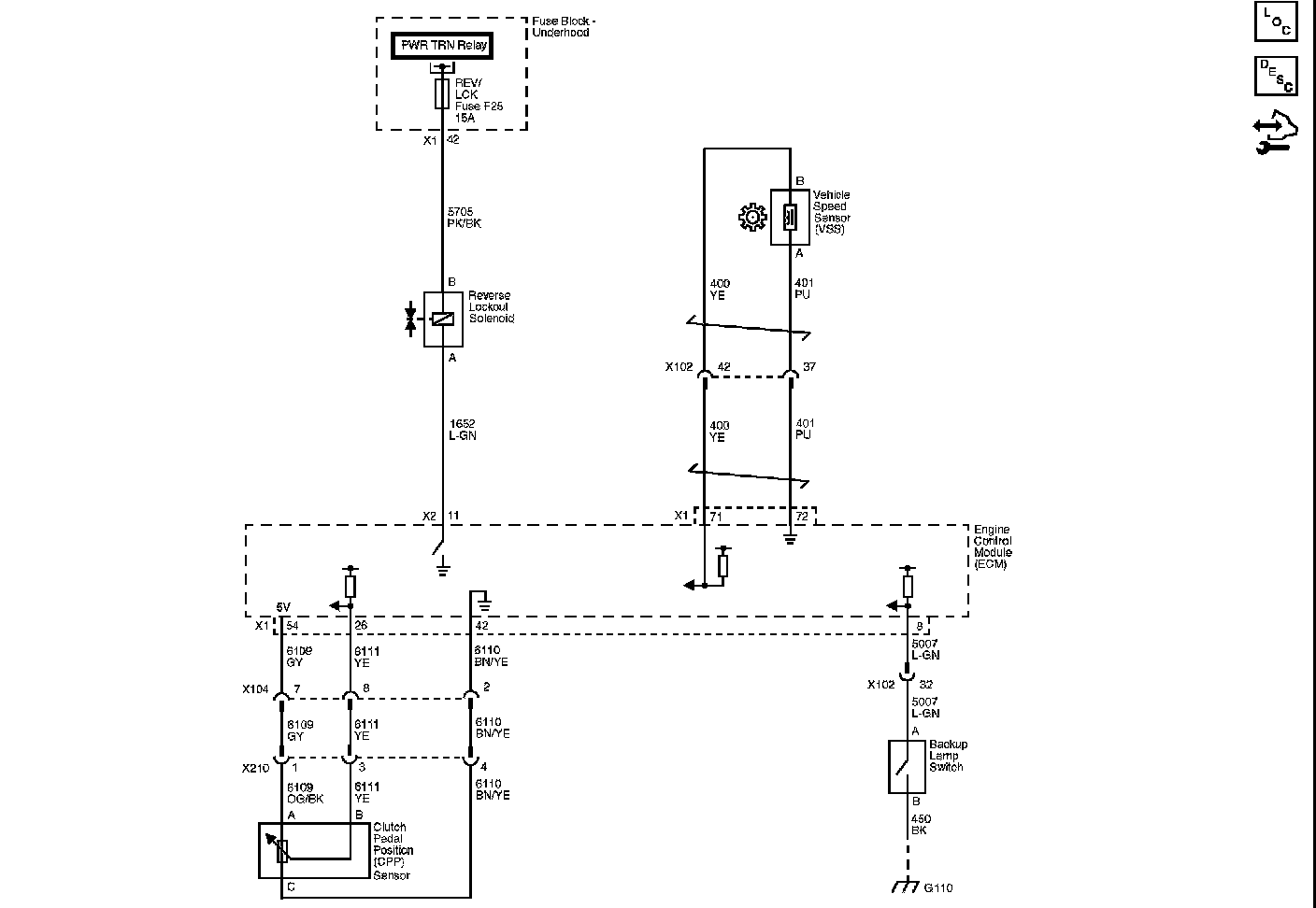

Manual Transmission Schematics
