Speaker
>>
Speaker - Right Front
Speaker - Right Front

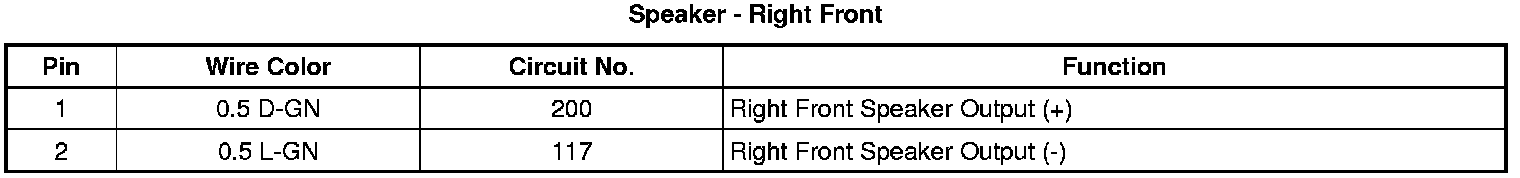

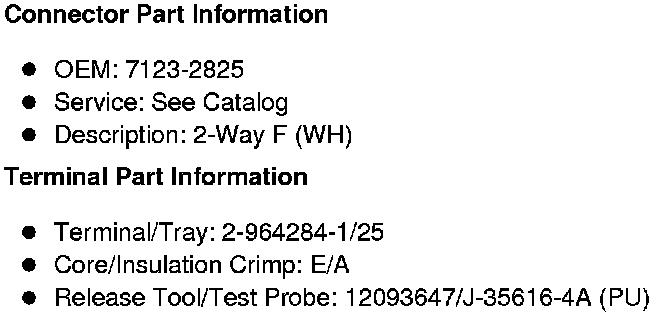

Component Connector End Views
Speaker - Right Front
