Multiple Junction Connector
>>
X400 - X499
>>
X403
X403

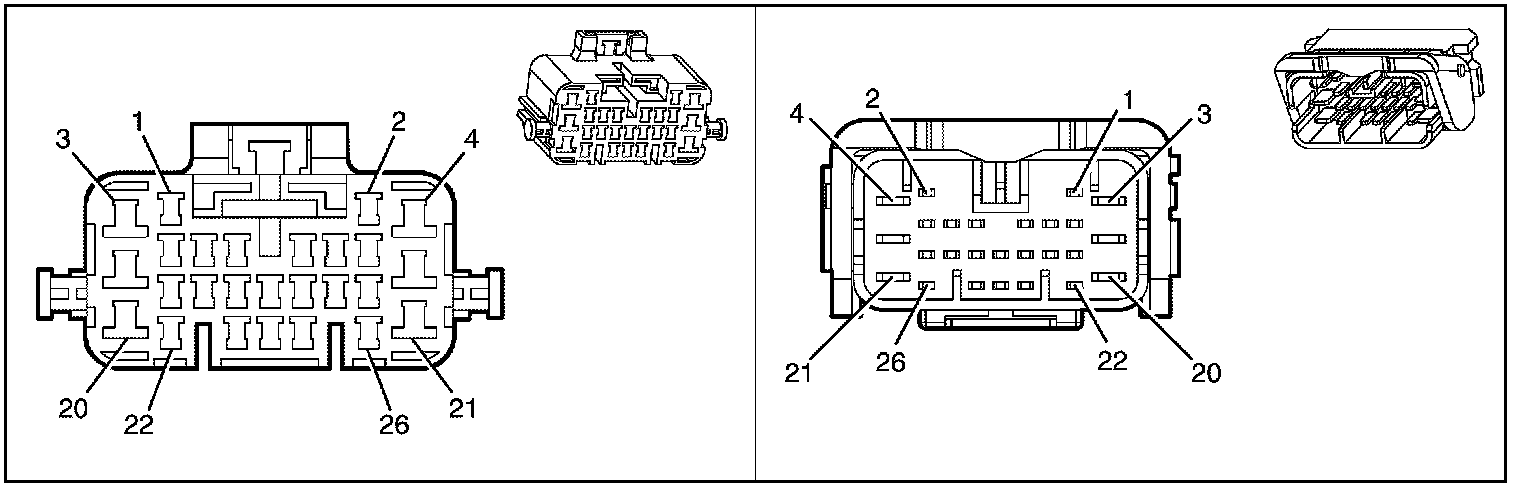

Inline Harness Connector End Views

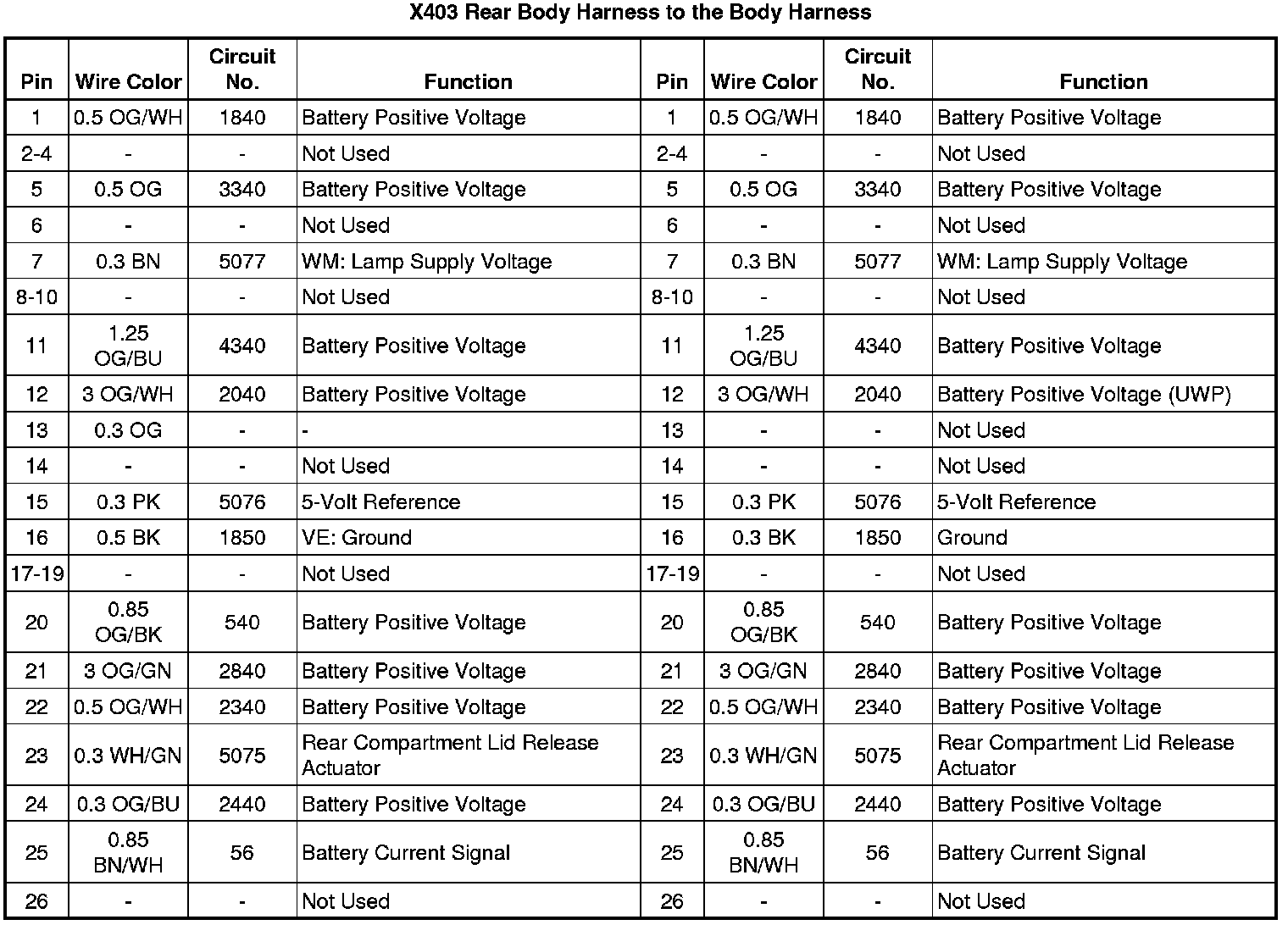

X403 Rear Body Harness to the Body Harness
