X160
X160

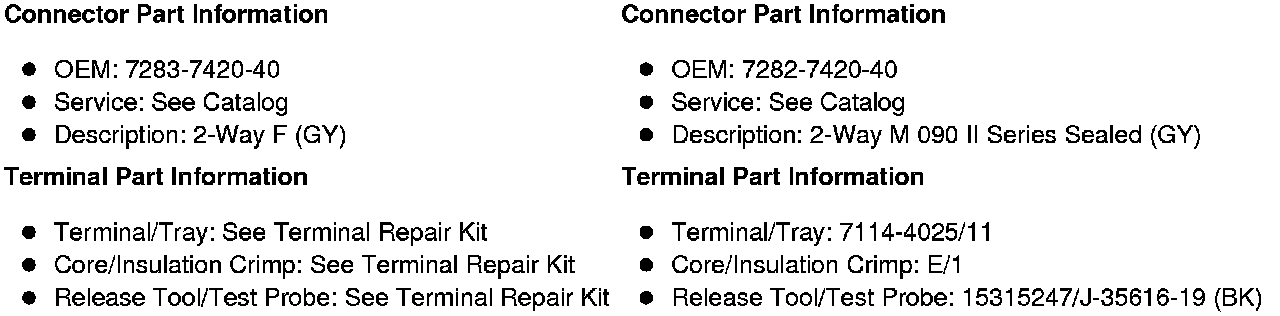

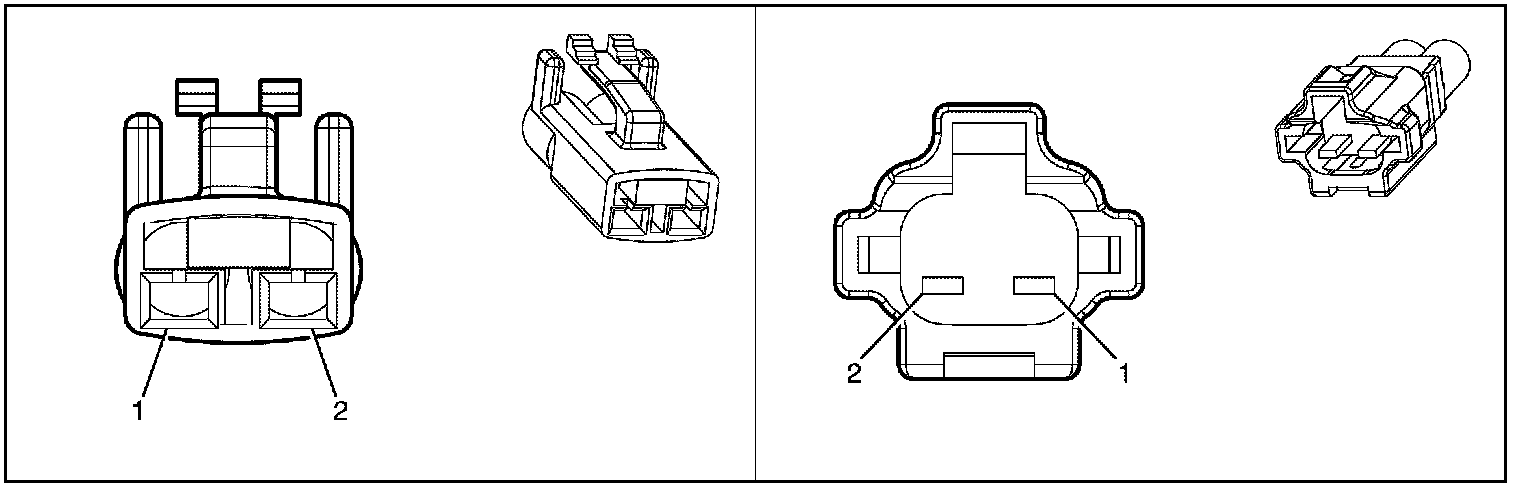

Inline Harness Connector End Views

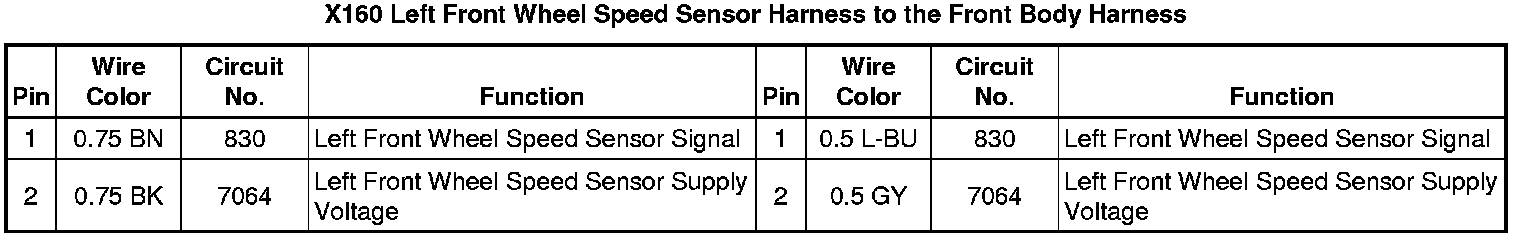

X160 Left Front Wheel Speed Sensor Harness to the Front Body Harness
