Automatic Transmission Output Shaft Speed (OSS) Sensor
Automatic Transmission Output Shaft Speed (OSS) Sensor

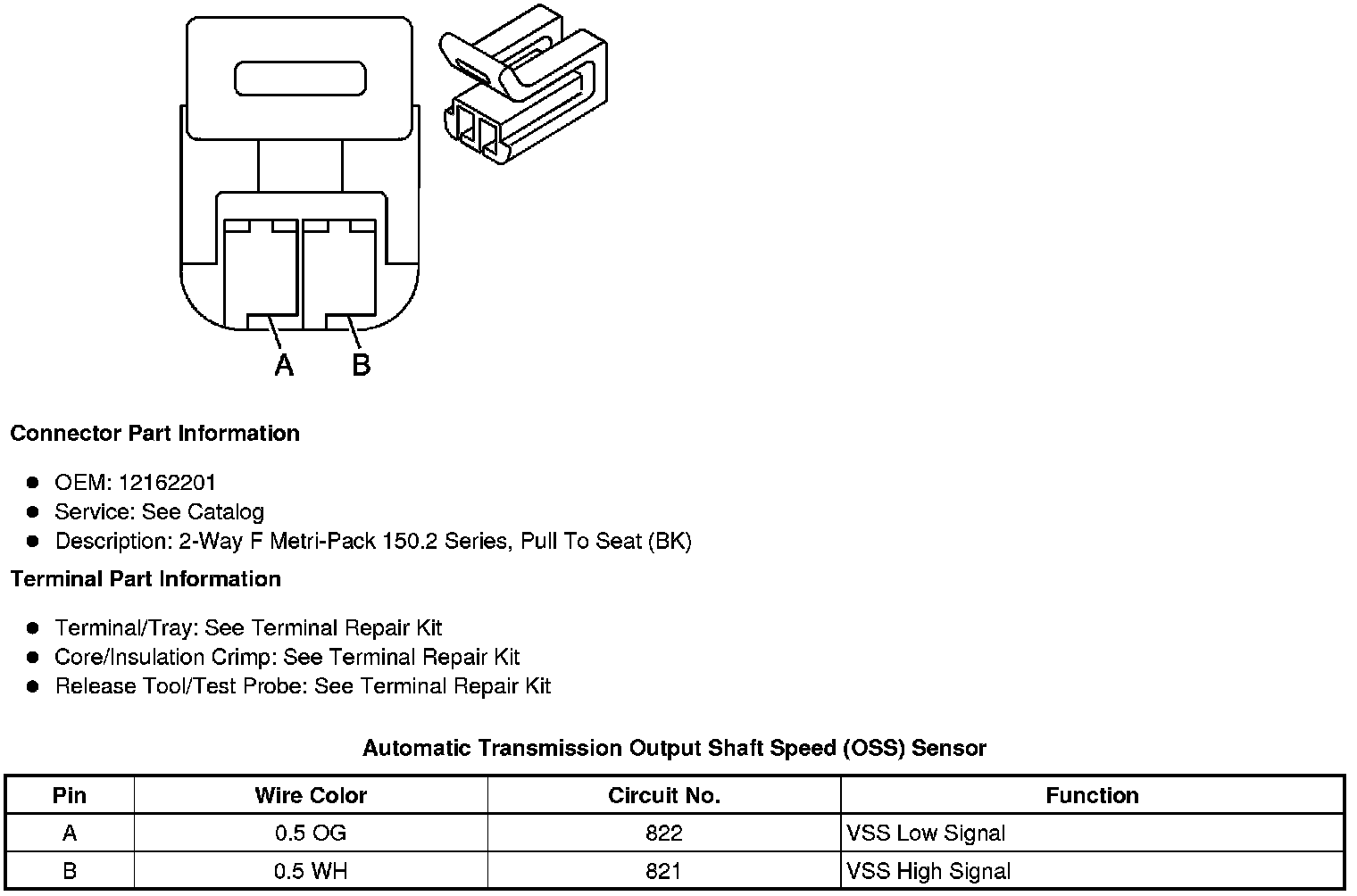

Component Connector End Views
Automatic Transmission Output Shaft Speed (OSS) Sensor
