Turn Signal Lamp
>>
Turn Signal Lamp - Right Rear

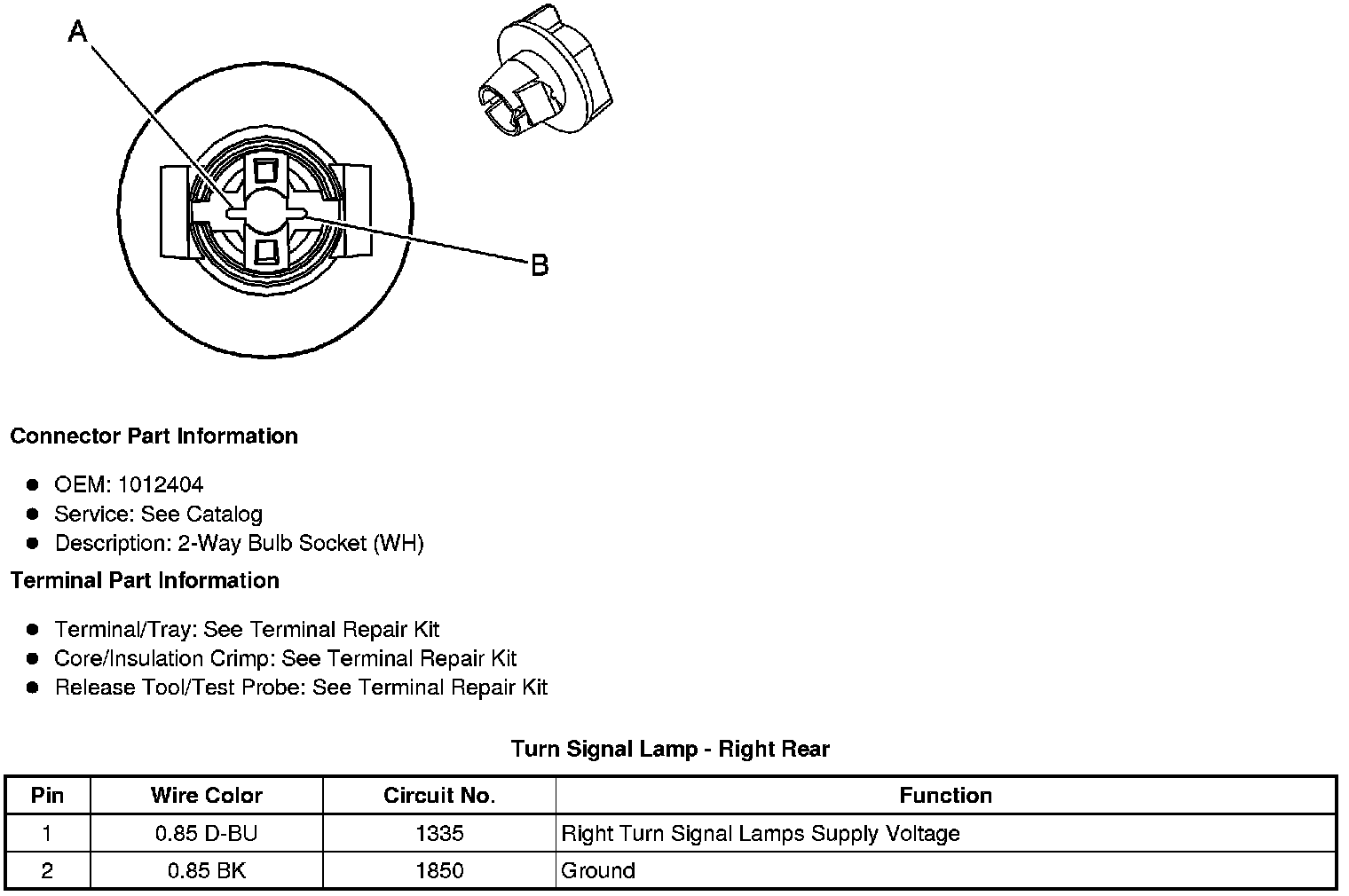

Turn Signal Lamp - Right Rear
Component Connector End Views
Turn Signal Lamp
- Right Rear
