Engine Mount Snubber Replacement

Engine Mount Snubber Replacement

Removal Procedure




1. Remove the air cleaner. Refer to Air Cleaner Assembly Replacement (Service and Repair).

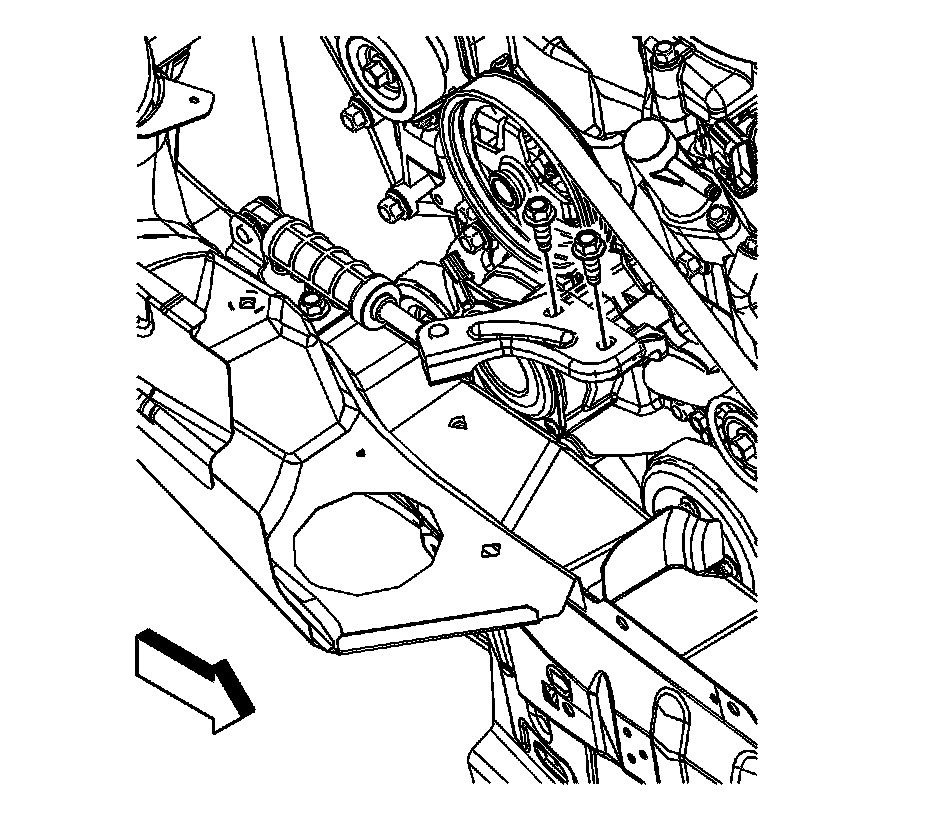

2. Remove the engine mount snubber to engine mount snubber bracket bolts.
3. Lift the engine mount snubber into the vertical position.

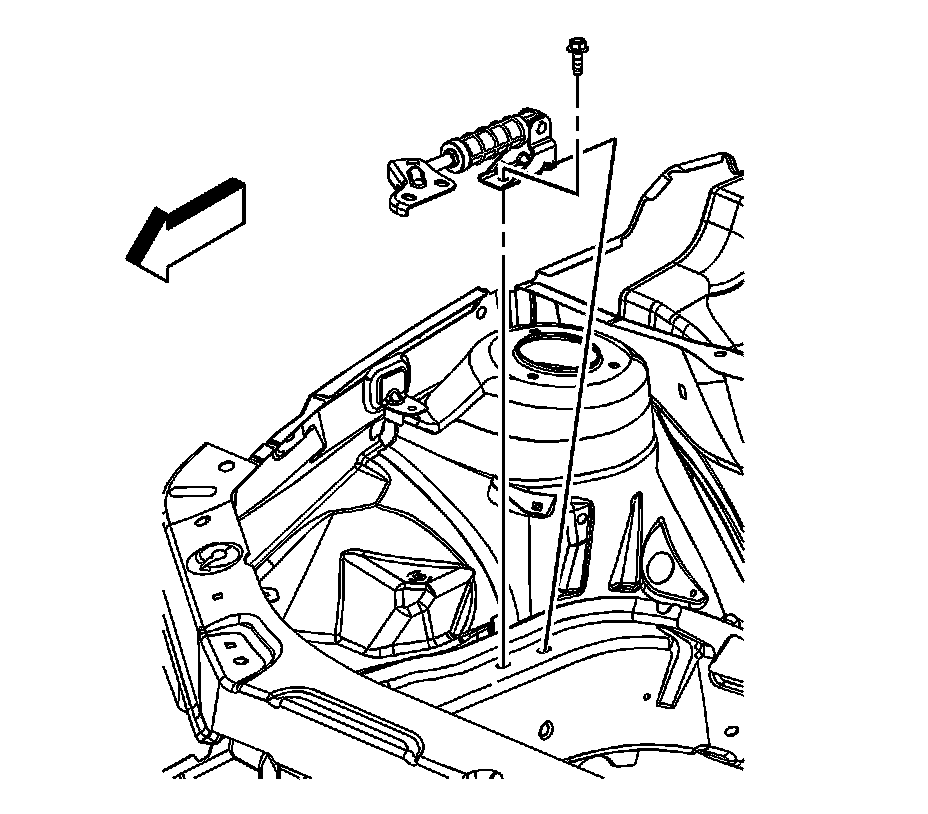

4. Remove the engine mount snubber to engine compartment side rail bolt.
5. Slide the engine mount snubber rearward and remove.

Installation Procedure




1. Position the engine mount snubber tab into the hole and slide the snubber forward until the bolt hole aligns.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install and tighten the engine mount snubber to engine compartment side rail bolt to 50 Nm (37 lb ft).
3. Push the engine mount snubber into the horizontal position.




4. Install the engine mount snubber to engine mount snubber bracket bolts and tighten to 50 Nm (37 lb ft).
5. Install the air cleaner. Refer to Air Cleaner Assembly Replacement (Service and Repair).
