Pontiac
>>
2009
>>
G6 V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
X200 - X299
>>
X214
X214

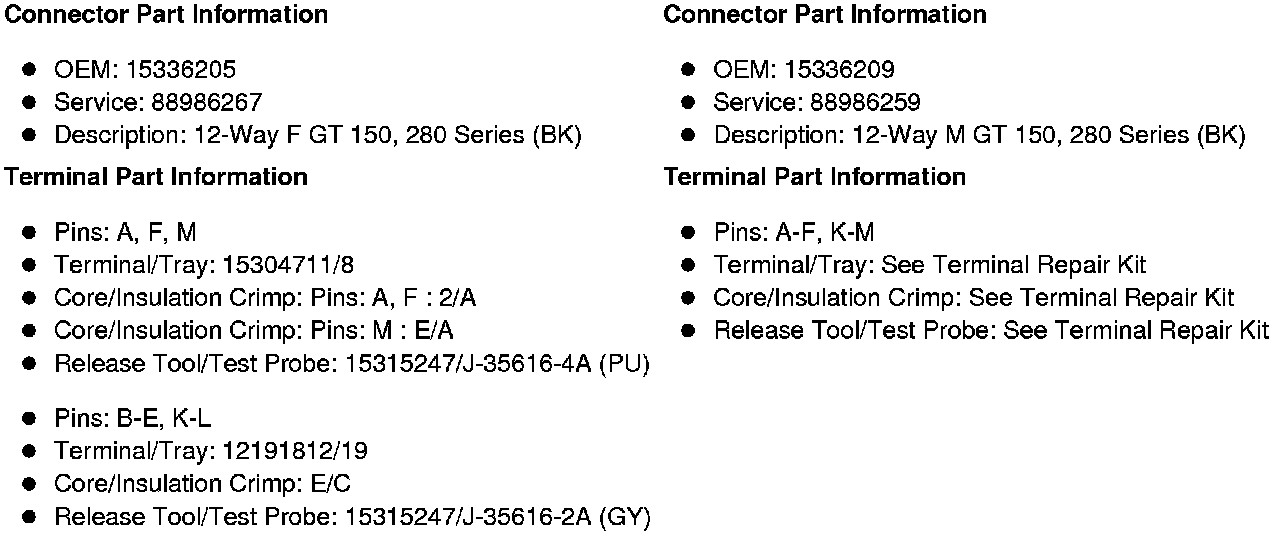

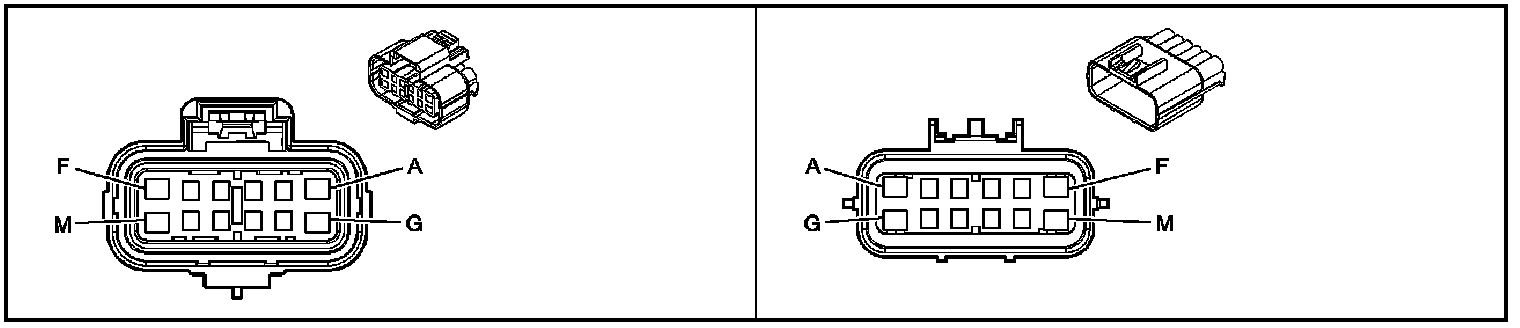

Inline Harness Connector End Views

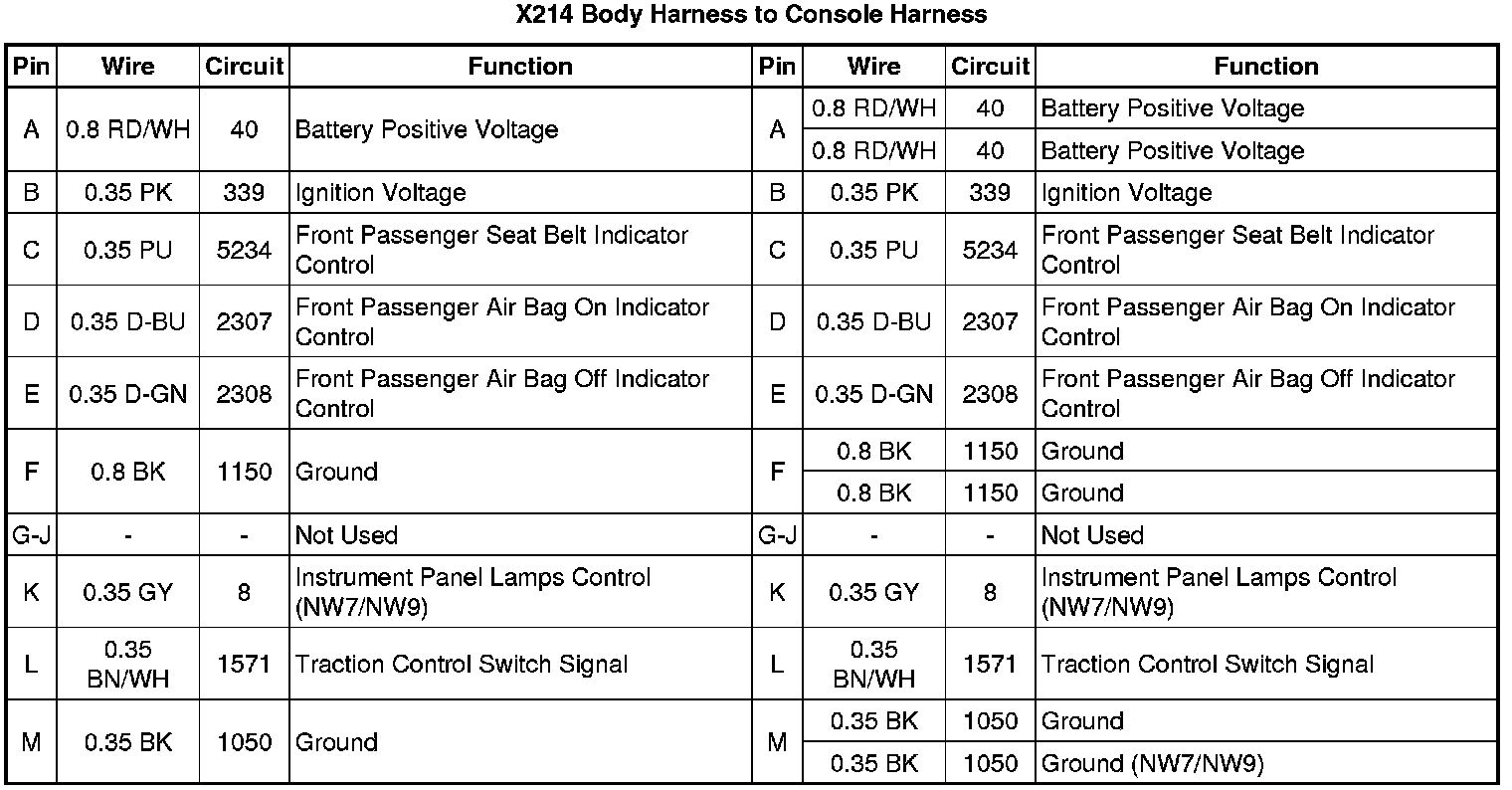

X214 Body Harness to Console Harness
