Engine Mount Bracket Replacement (Convertible)

Engine Mount Bracket Replacement (Convertible)

Removal Procedure




1. Remove the engine mount. Refer to Engine Mount Replacement (Coupe) (Service and Repair)Engine Mount Replacement (Convertible) (Service and Repair).

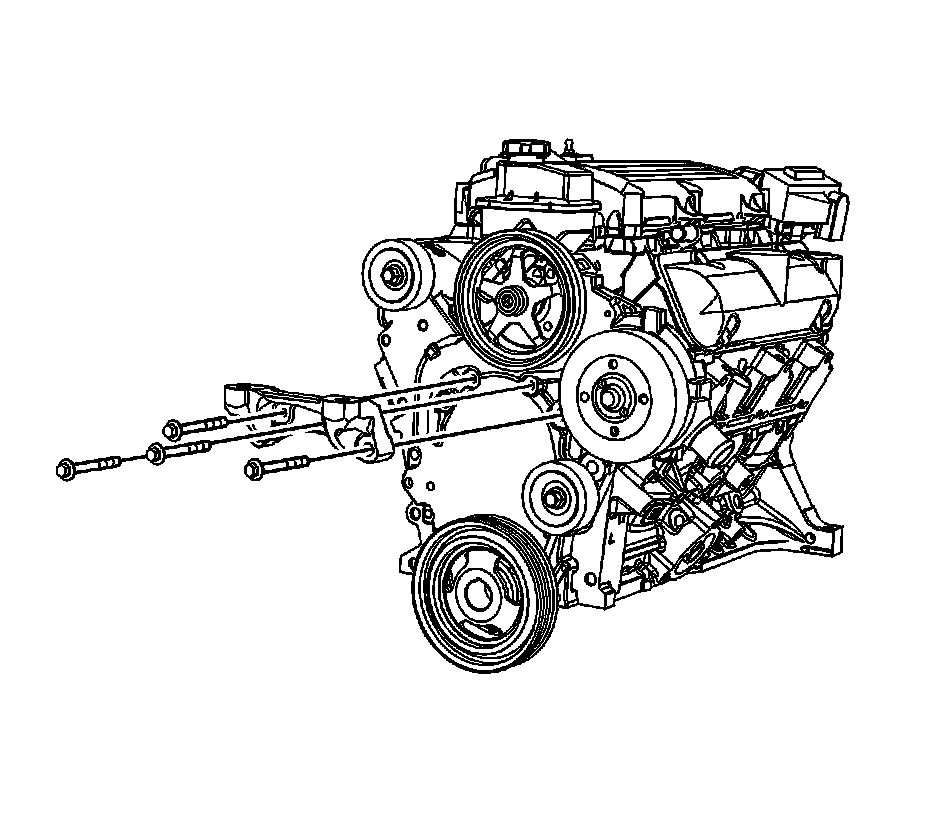

2. Remove the engine mount bracket bolts from the engine.
3. Remove the engine mount bracket.

Installation Procedure




1. Position the engine mount bracket to the engine front cover.
2. Hold the bracket firmly to the engine front cover and install the engine mount bracket bolts.

Caution: Refer to Fastener Caution (Fastener Caution).

3. Tighten the engine mount bracket bolts.

Tighten the bolts to 90 Nm (66 lb ft).

4. Install the engine mount. Refer to Engine Mount Replacement (Coupe) (Service and Repair)Engine Mount Replacement (Convertible) (Service and Repair).
