Antenna, Radio
Antenna, Radio
Component Connector End Views

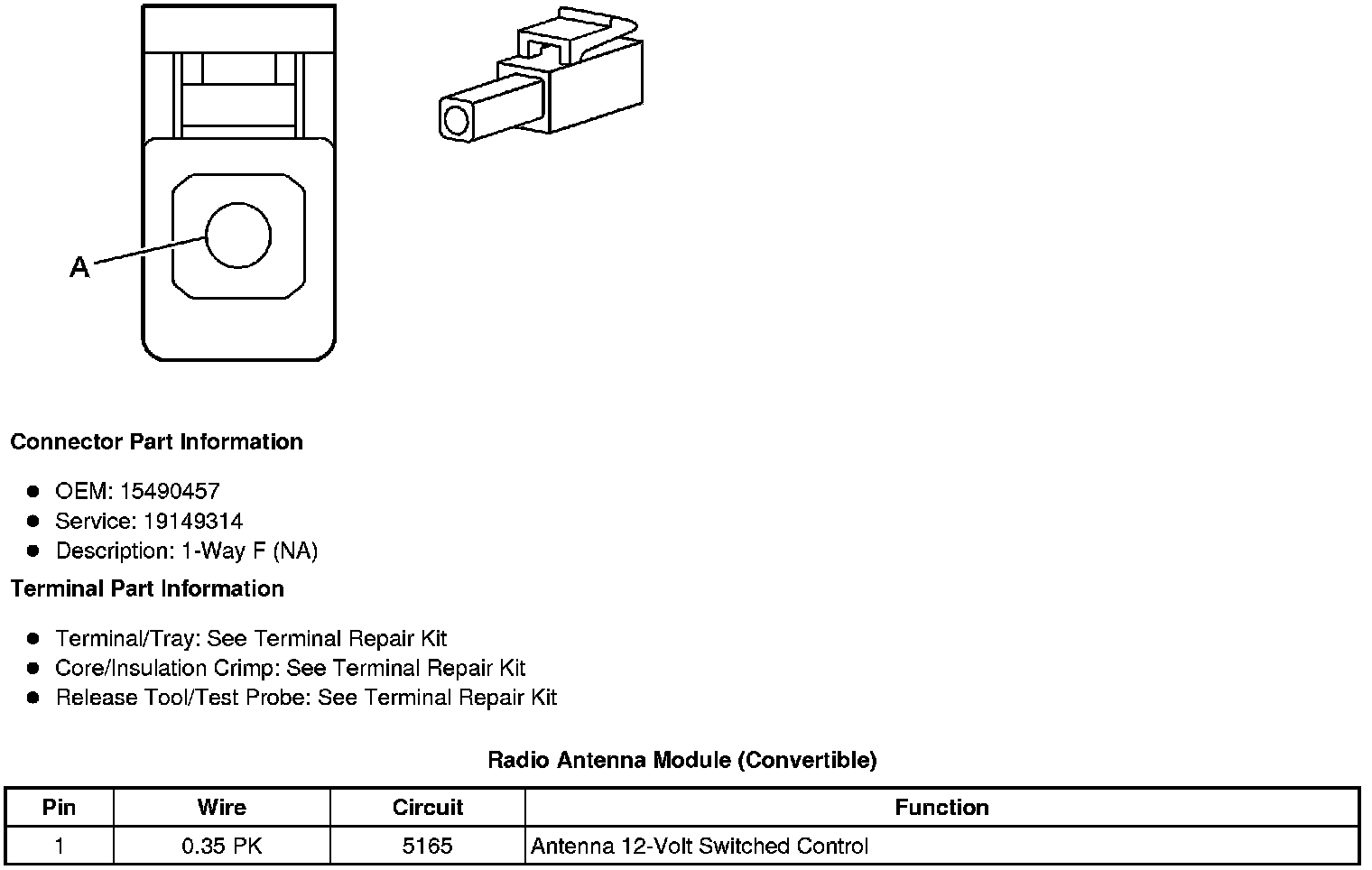

Radio Antenna Module (Convertible)

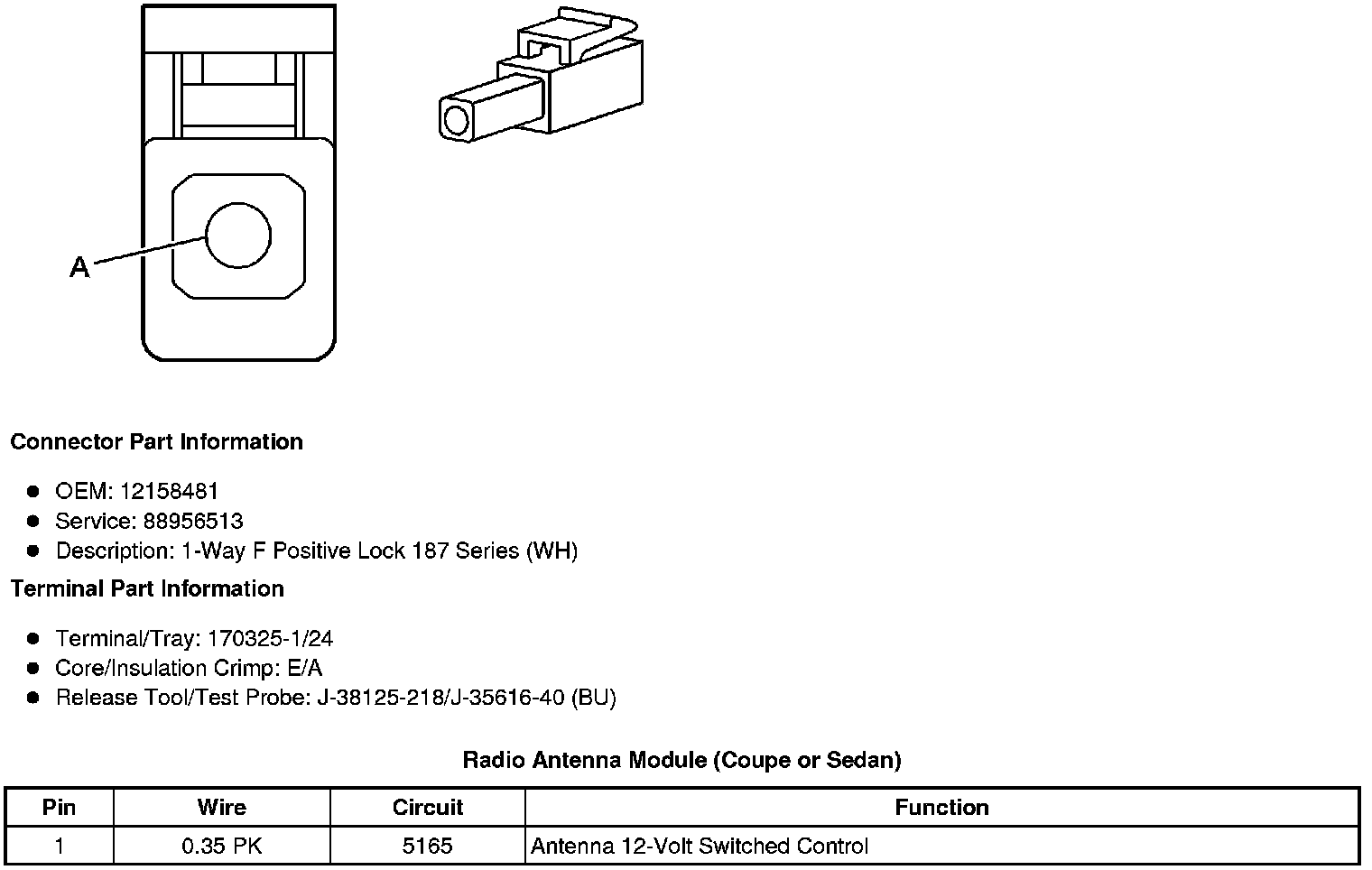

Radio Antenna Module (Coupe or Sedan)
