Transmission Fluid Pump Disassemble




Transmission Fluid Pump Disassemble

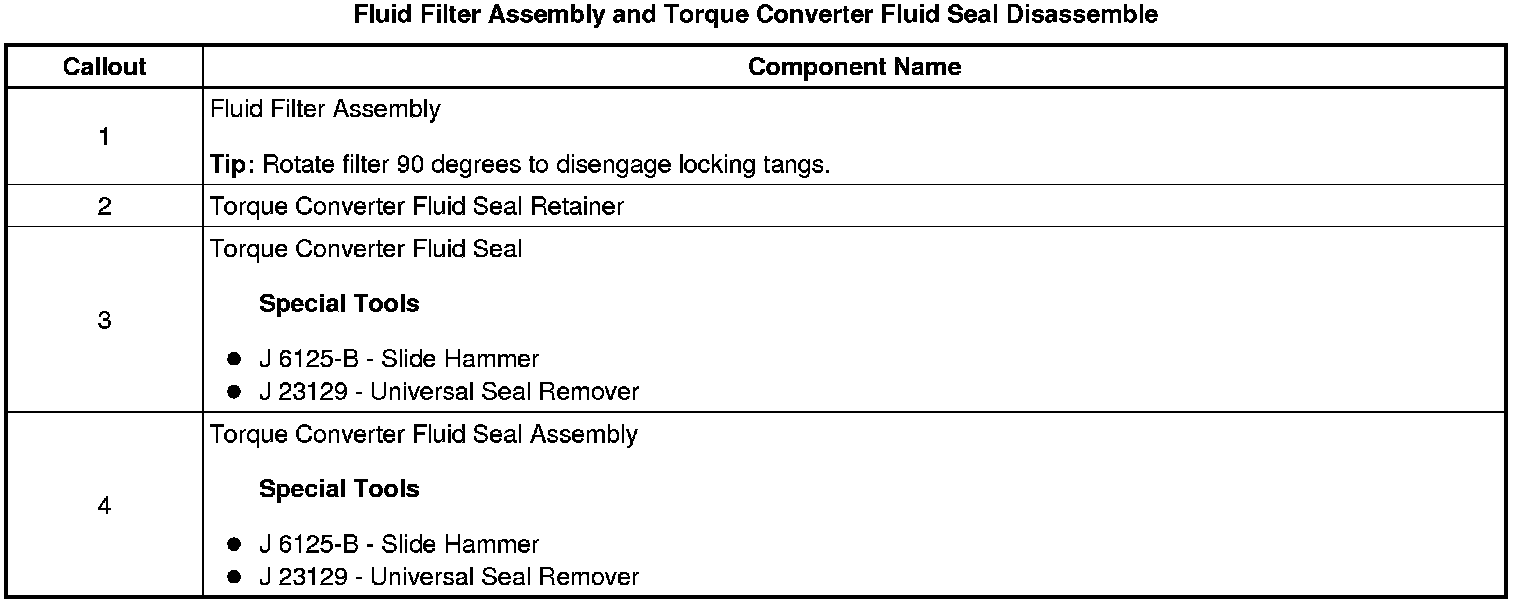

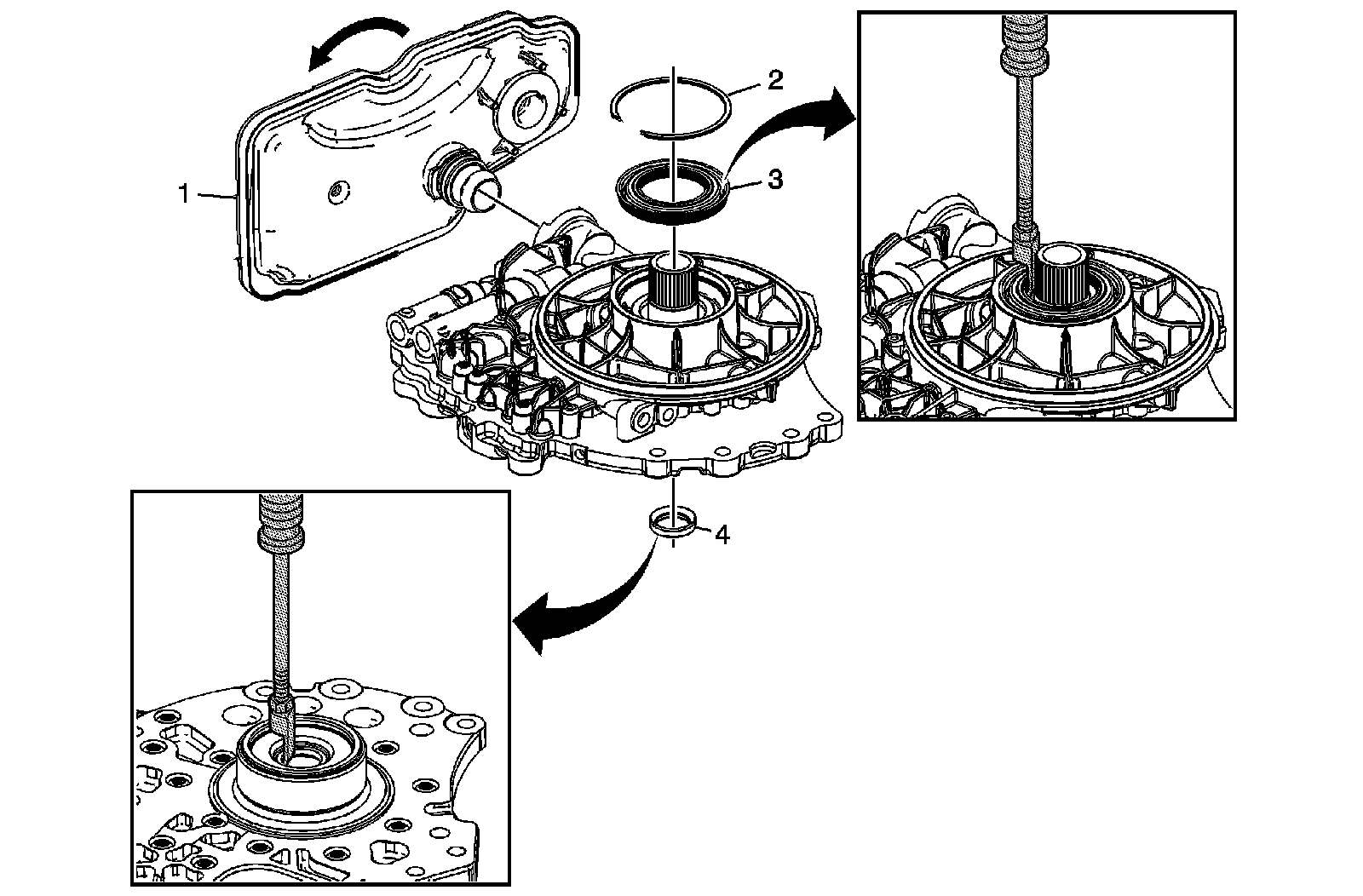

Fluid Filter Assembly and Torque Converter Fluid Seal Disassemble

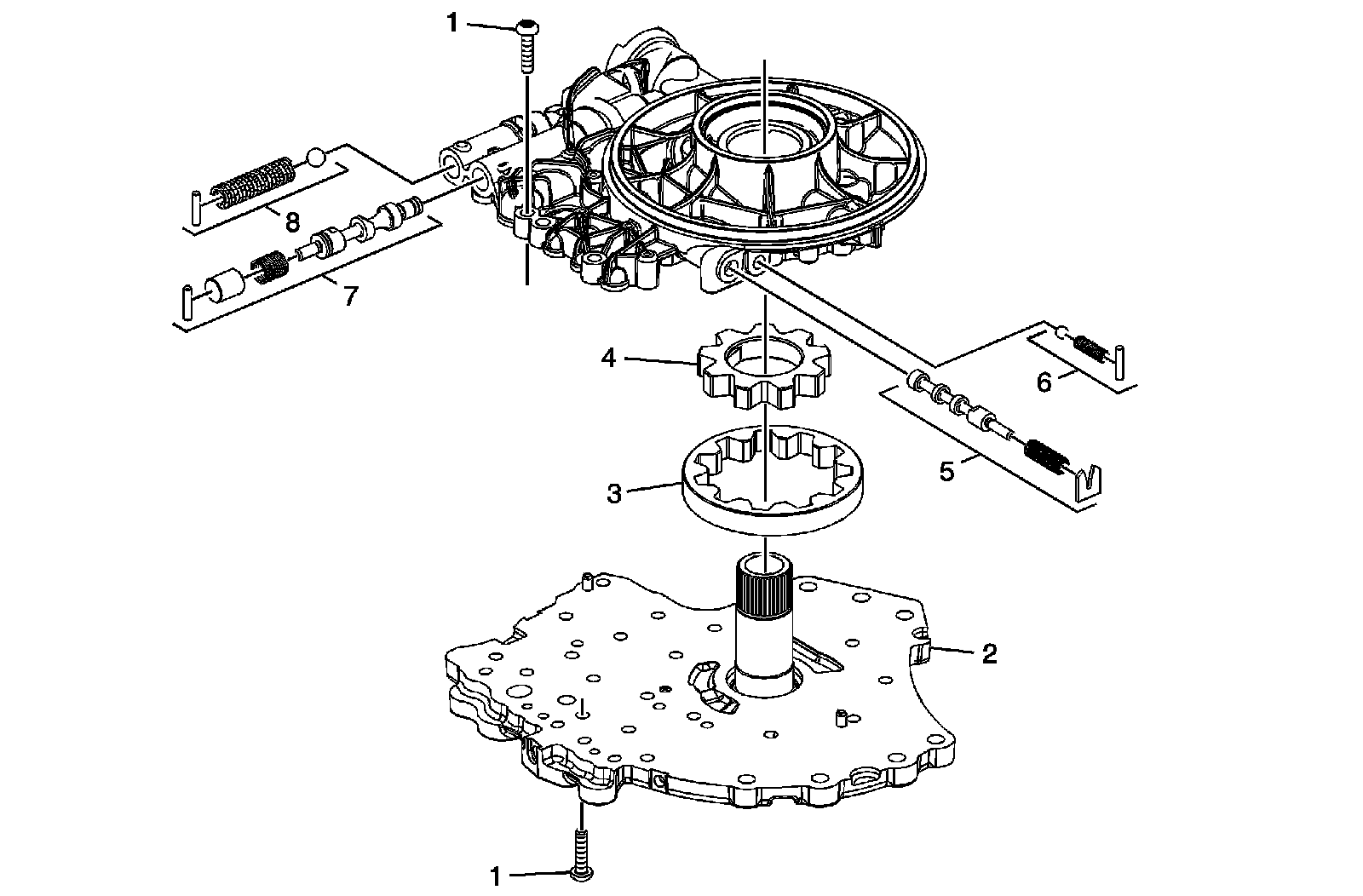

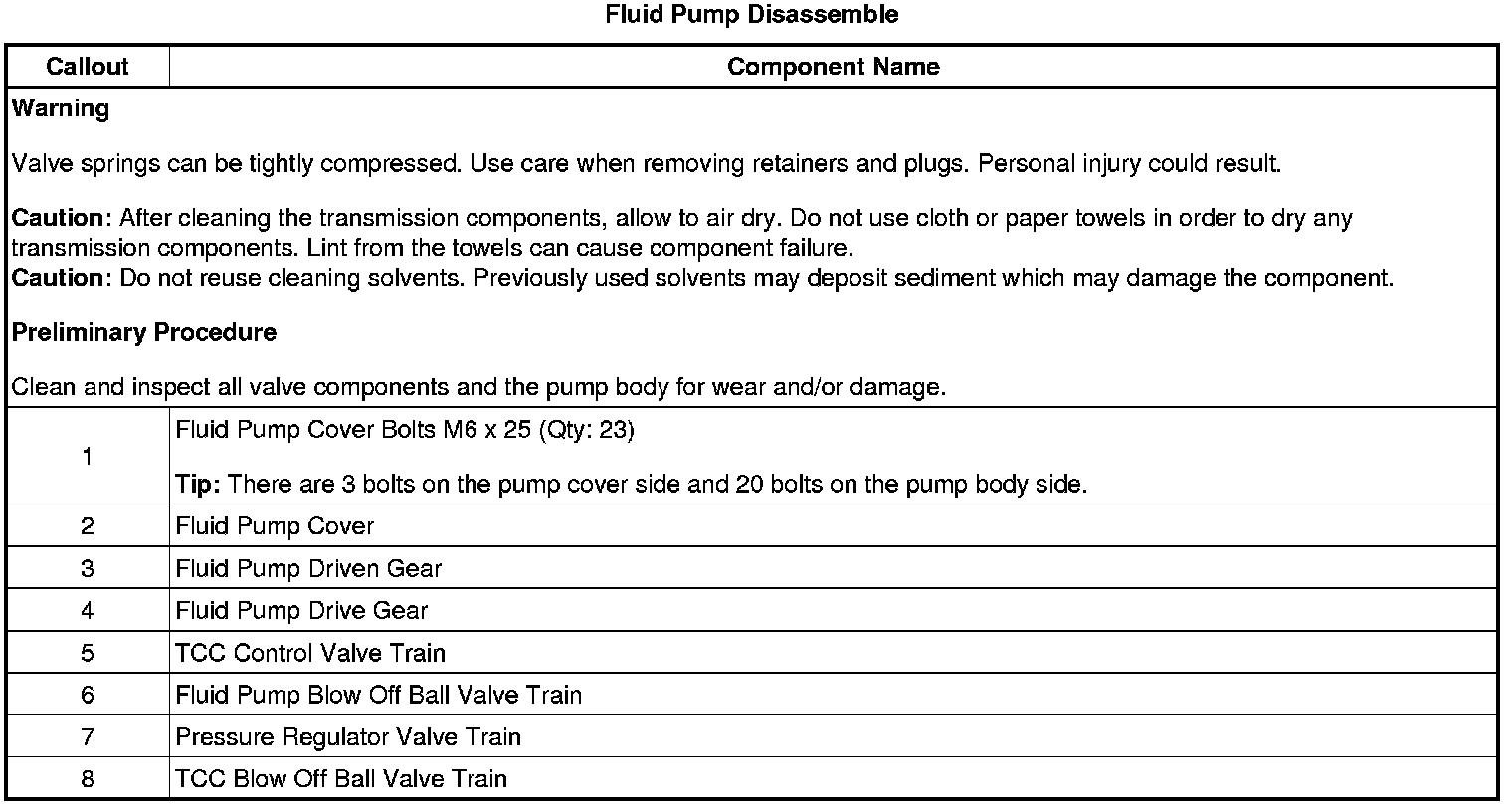

Fluid Pump Disassemble
