Pontiac
>>
2009
>>
G6 L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
Wiper and Washer Systems
Wiper/Washer Schematics

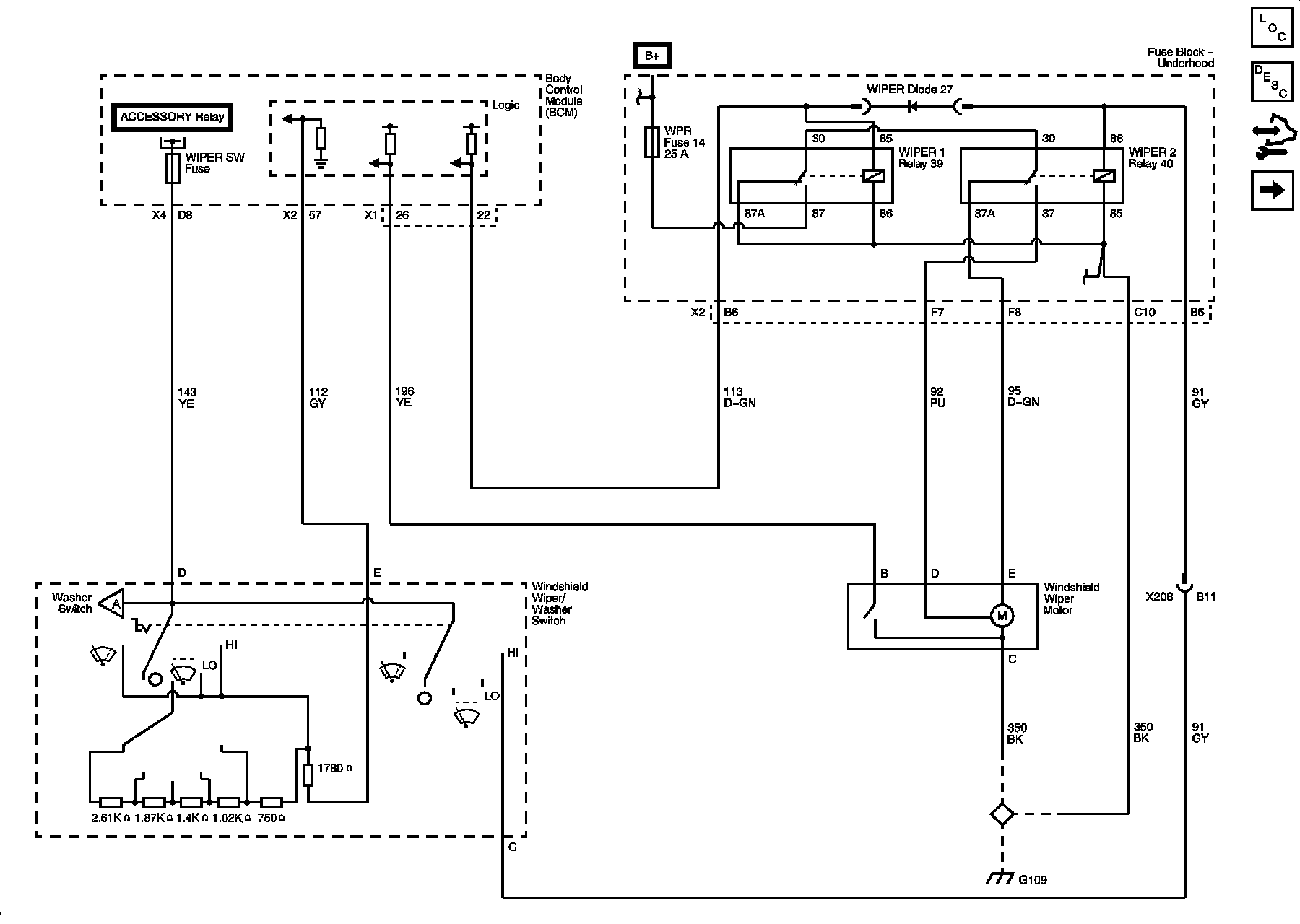

Wiper System

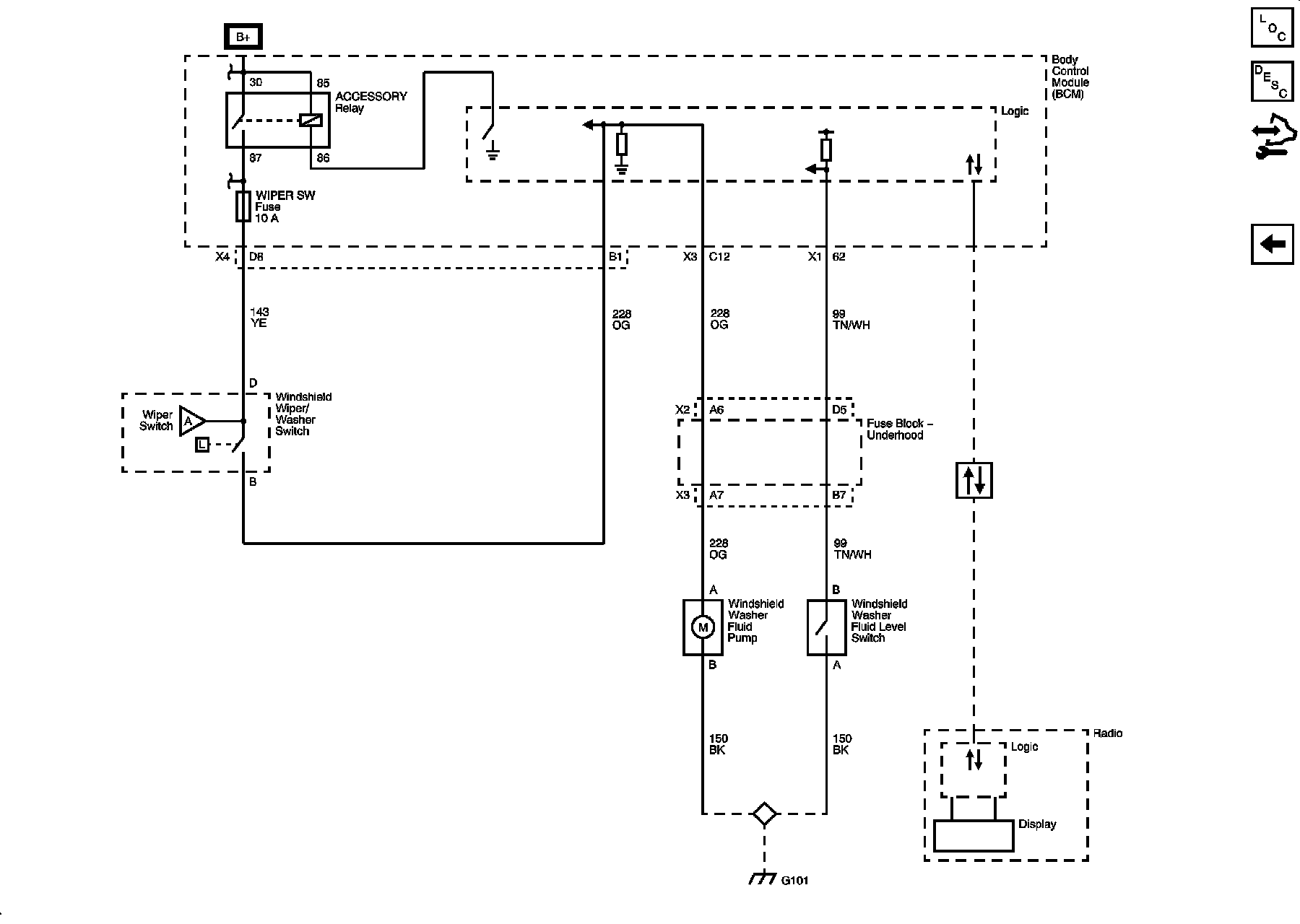

Washer System
