Home
>>
Pontiac
>>
2009
>>
G6 L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Map Light
Map Light
Component Connector End Views

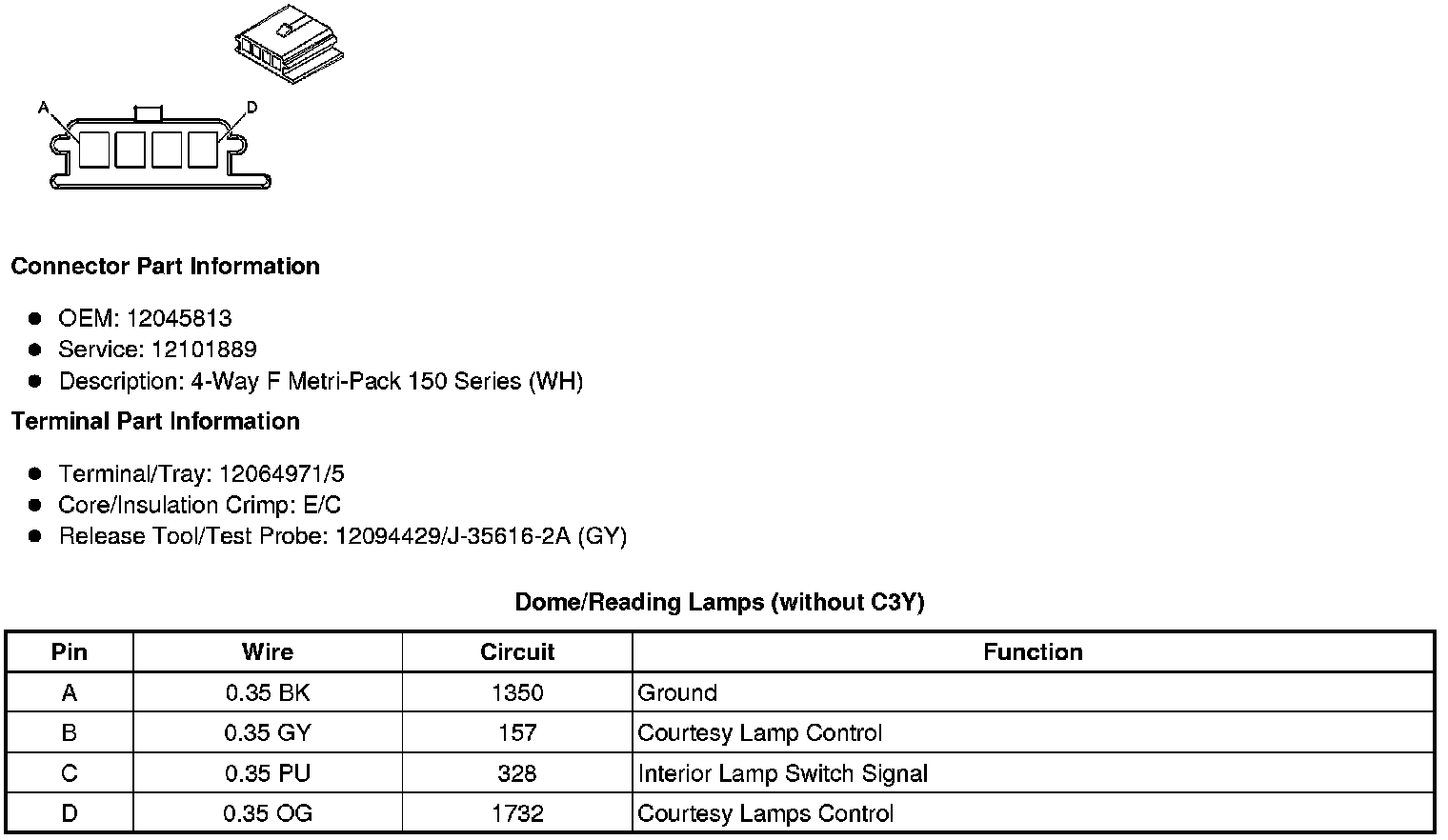

Dome/Reading Lamps (without C3Y)

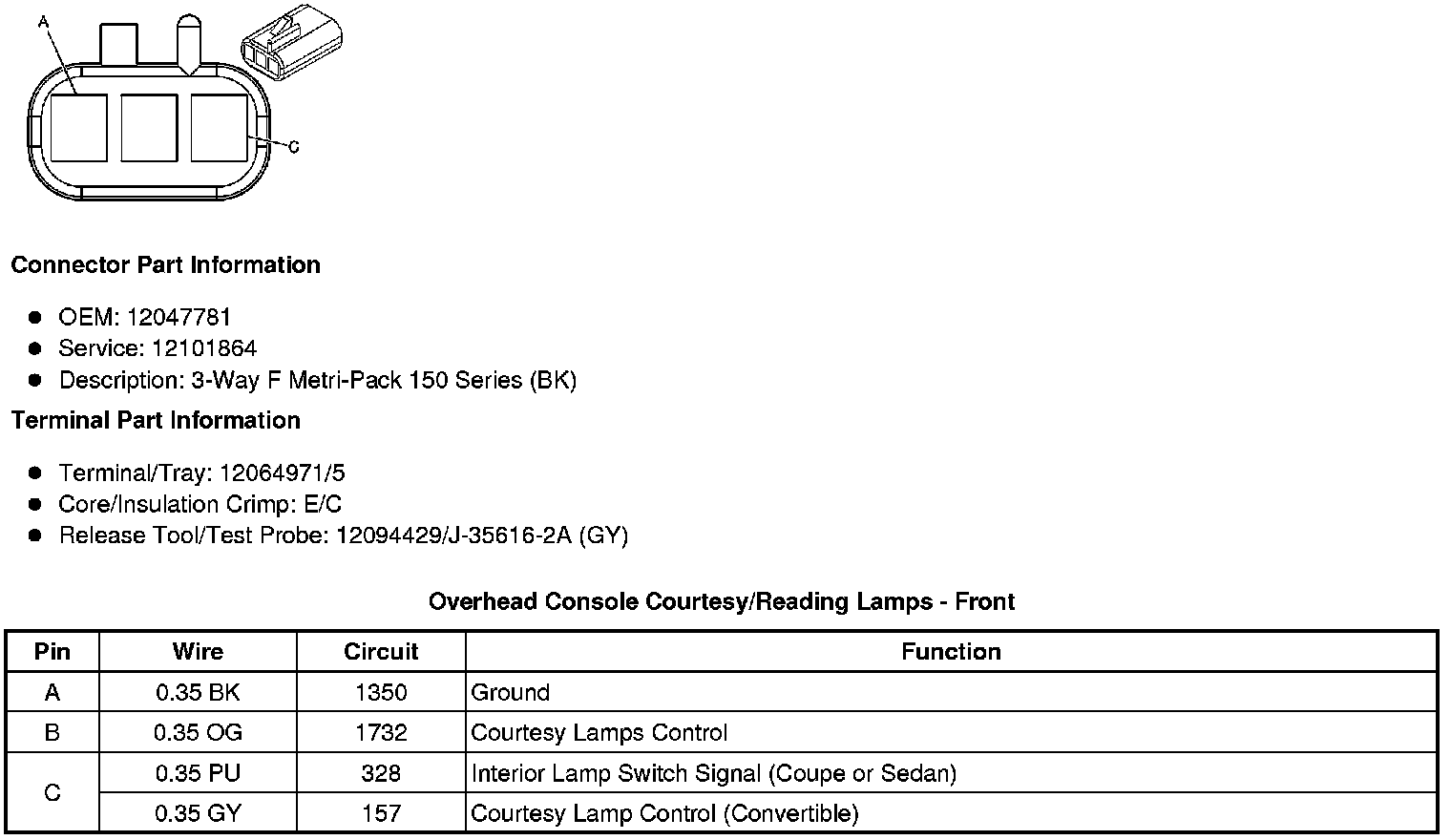

Overhead Console Courtesy/Reading Lamps - Front
