Home
>>
Pontiac
>>
2009
>>
G5 L4-2.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
Antilock Brakes / Traction Control Systems
Antilock Brake System Schematics
Power, Ground,

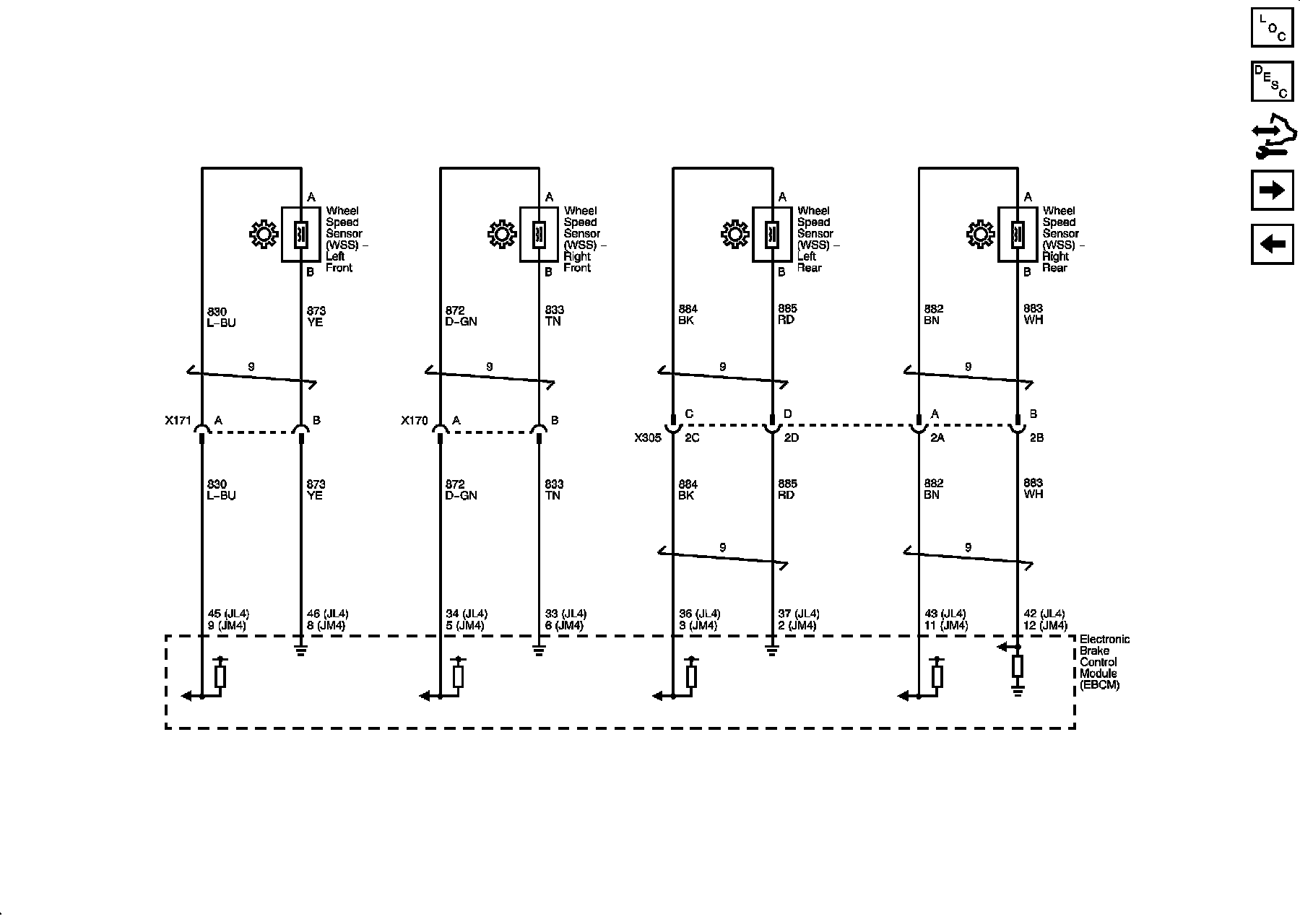

Wheel Speed Sensors
Indicators
Navigation Module
