Multiple Junction Connector
>>
X400 - X499
>>
X493
X493

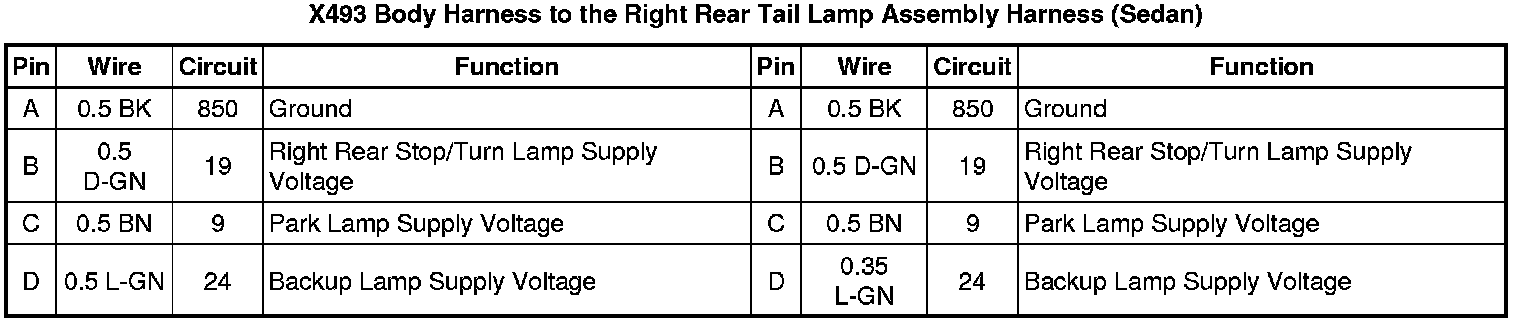

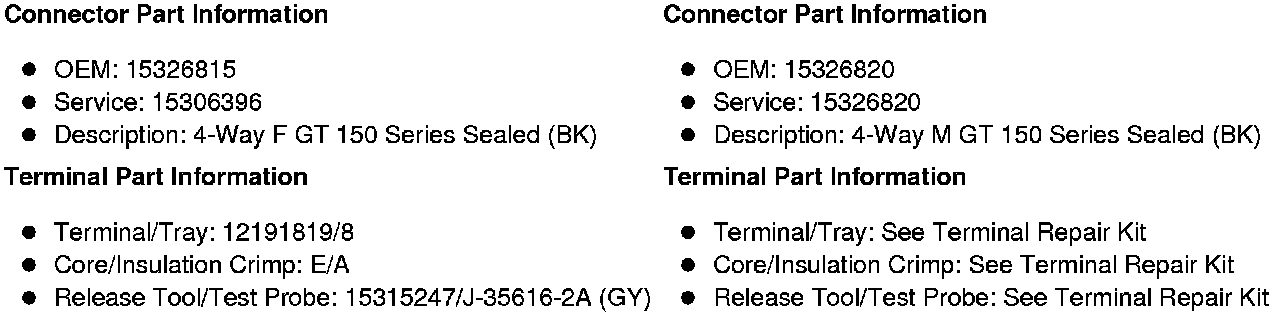

X493 Body Harness to the Right Rear Tail Lamp Assembly Harness (Sedan)
