Home
>>
Pontiac
>>
2009
>>
G5 L4-2.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
X300 - X399
>>
X321
X321

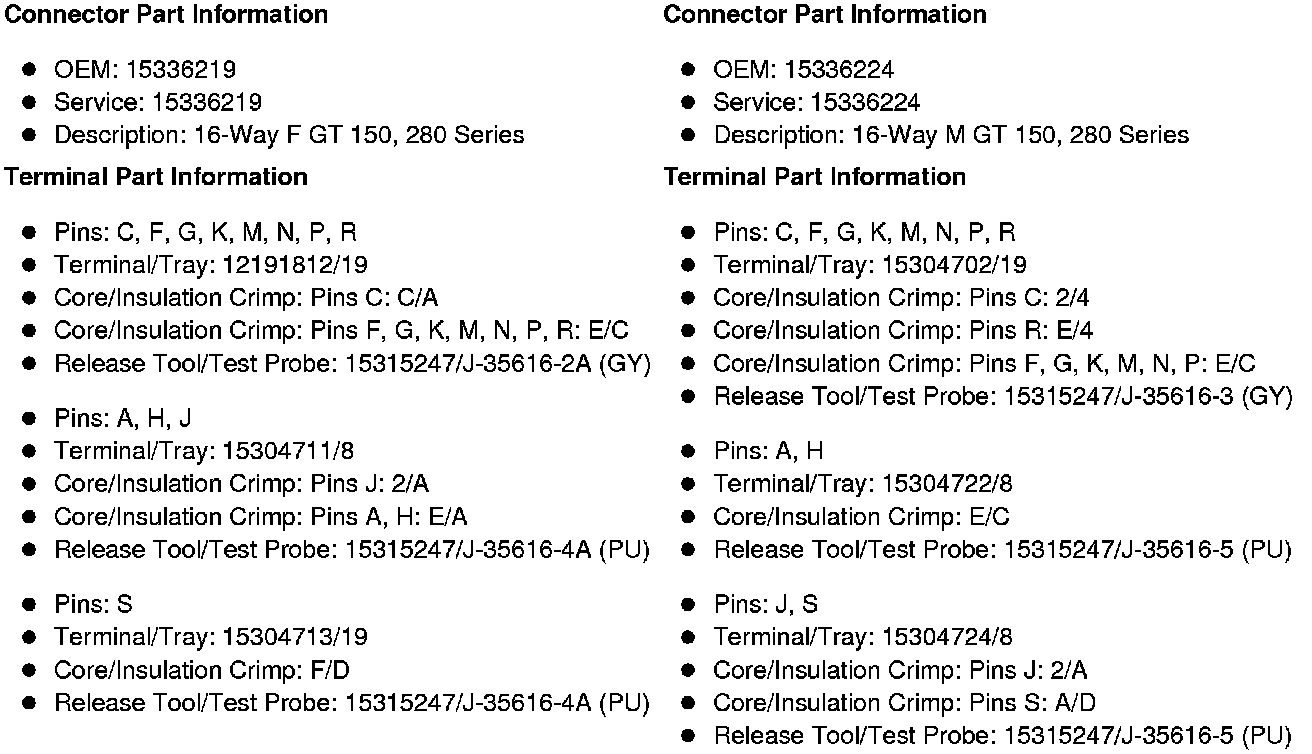

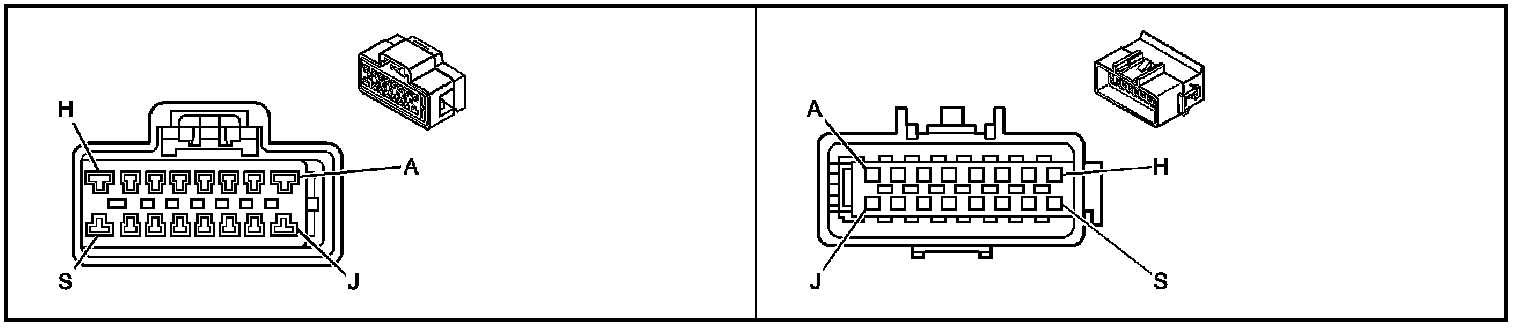

X321 Body Harness to the Headliner Harness (UE1)
X321 Body Harness to the Headliner Harness (without UE1)
