Home
>>
Pontiac
>>
2009
>>
G5 L4-2.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
X100 - X199
>>
X110
X110

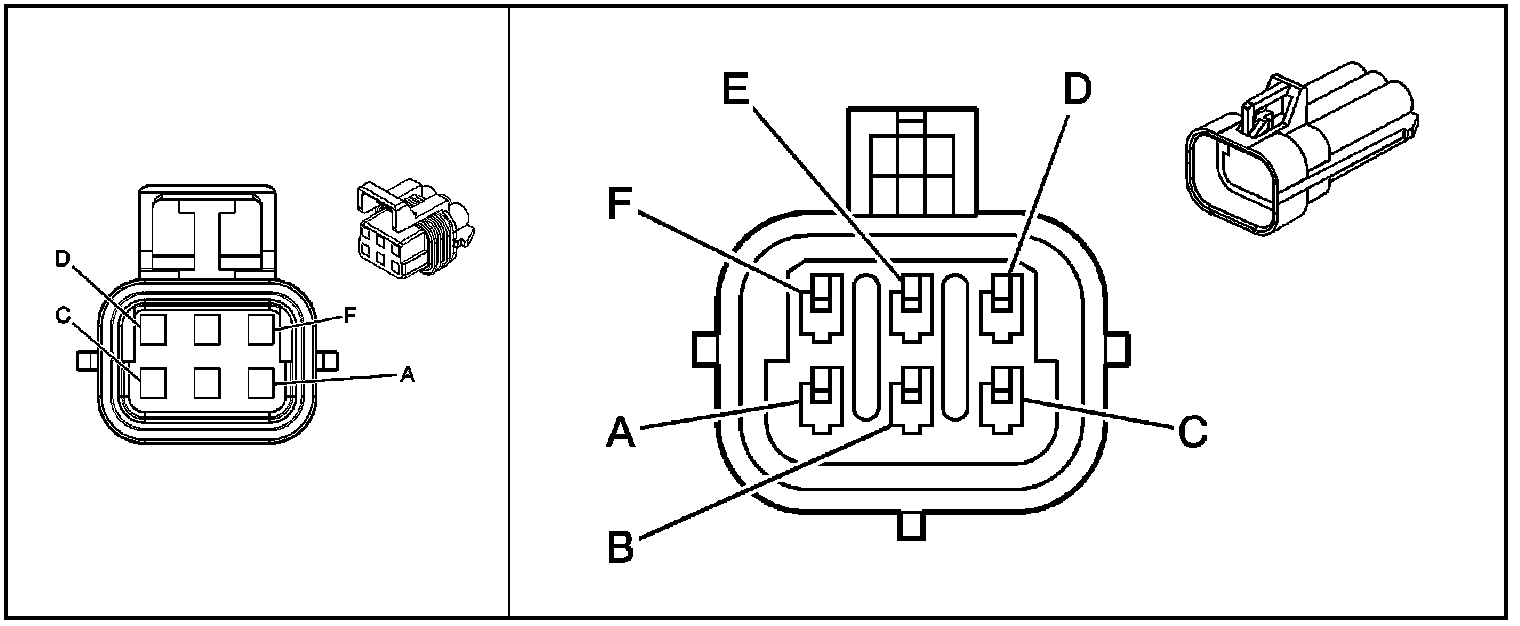

Inline Harness Connector End Views

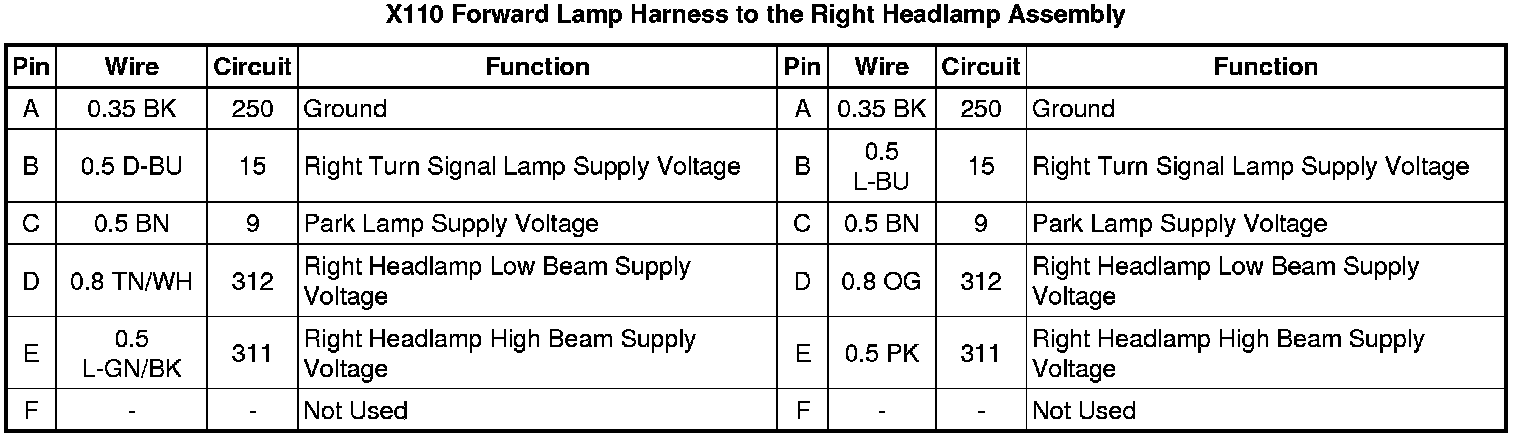

X110 Forward Lamp Harness to the Right Headlamp Assembly
