Accelerator Pedal Position Sensor
Accelerator Pedal Position Sensor

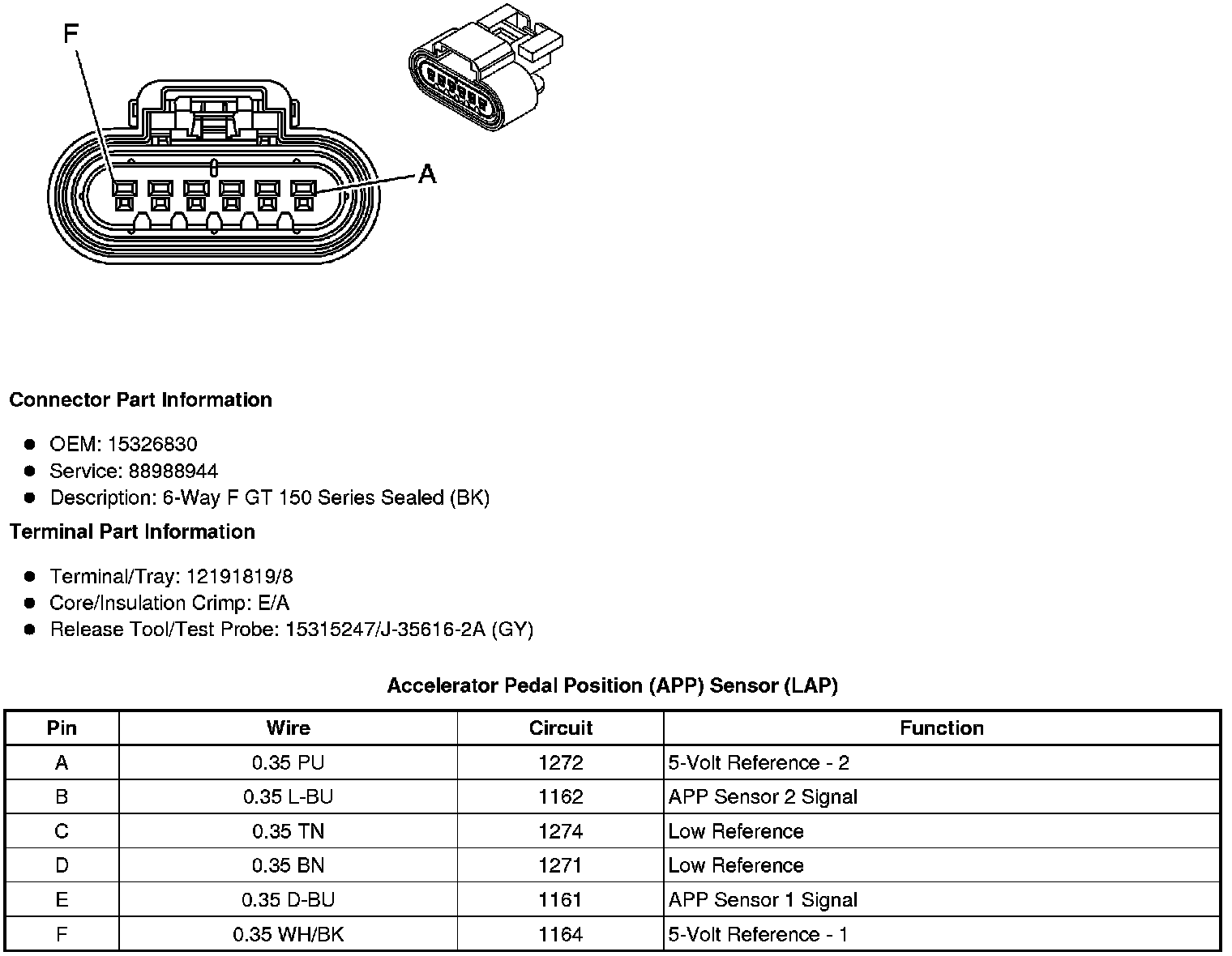

Component Connector End Views
Accelerator Pedal Position (APP) Sensor (LAP)
