Home
>>
Pontiac
>>
2009
>>
G3 L4-1.6L
>>
Repair and Diagnosis
>>
Maintenance
>>
Wheels and Tires
>>
Tire Monitoring System
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

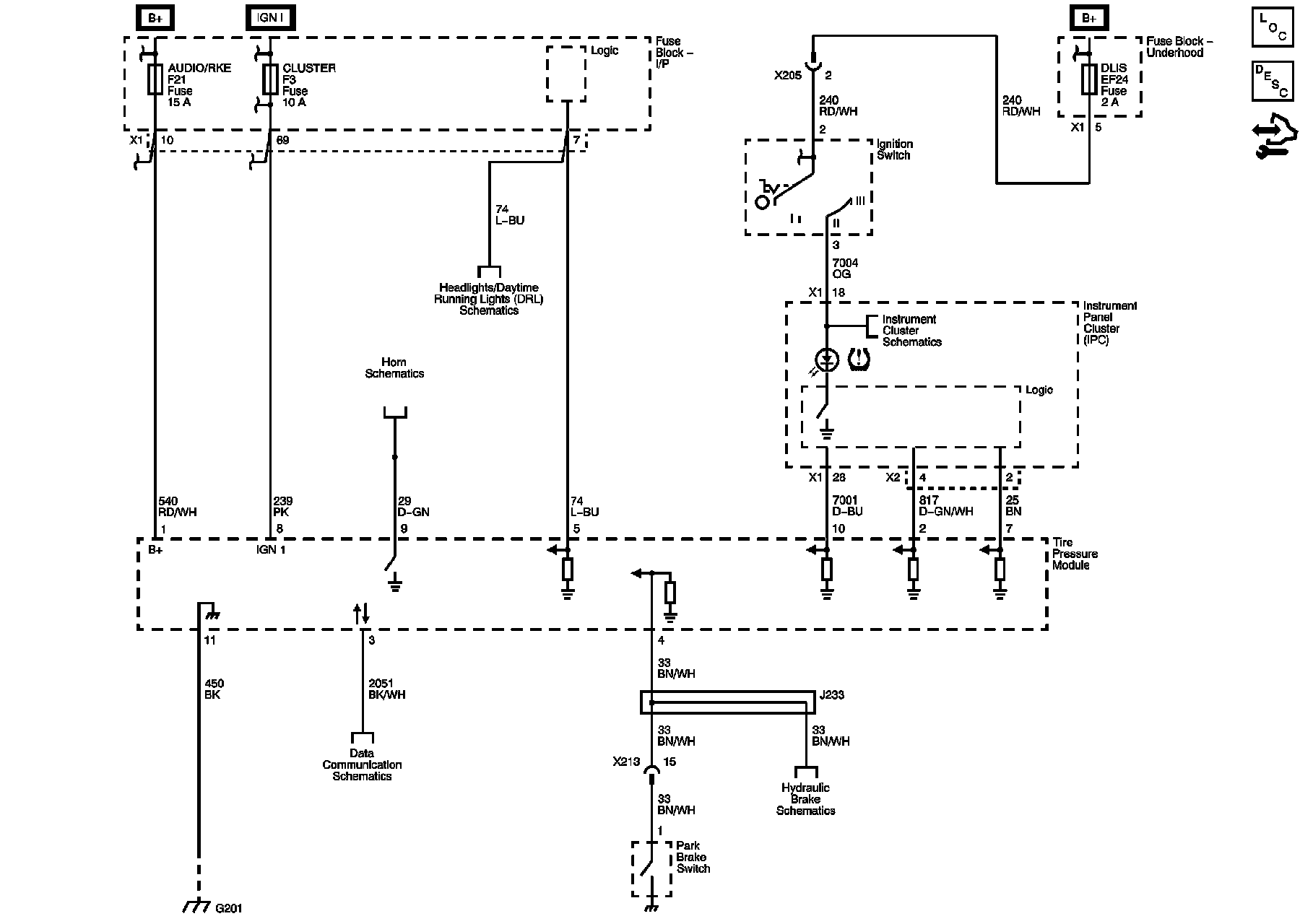

Tire Pressure Monitoring System Schematics
