Sunroof / Moonroof Motor
Sunroof / Moonroof Motor
Component Connector End Views

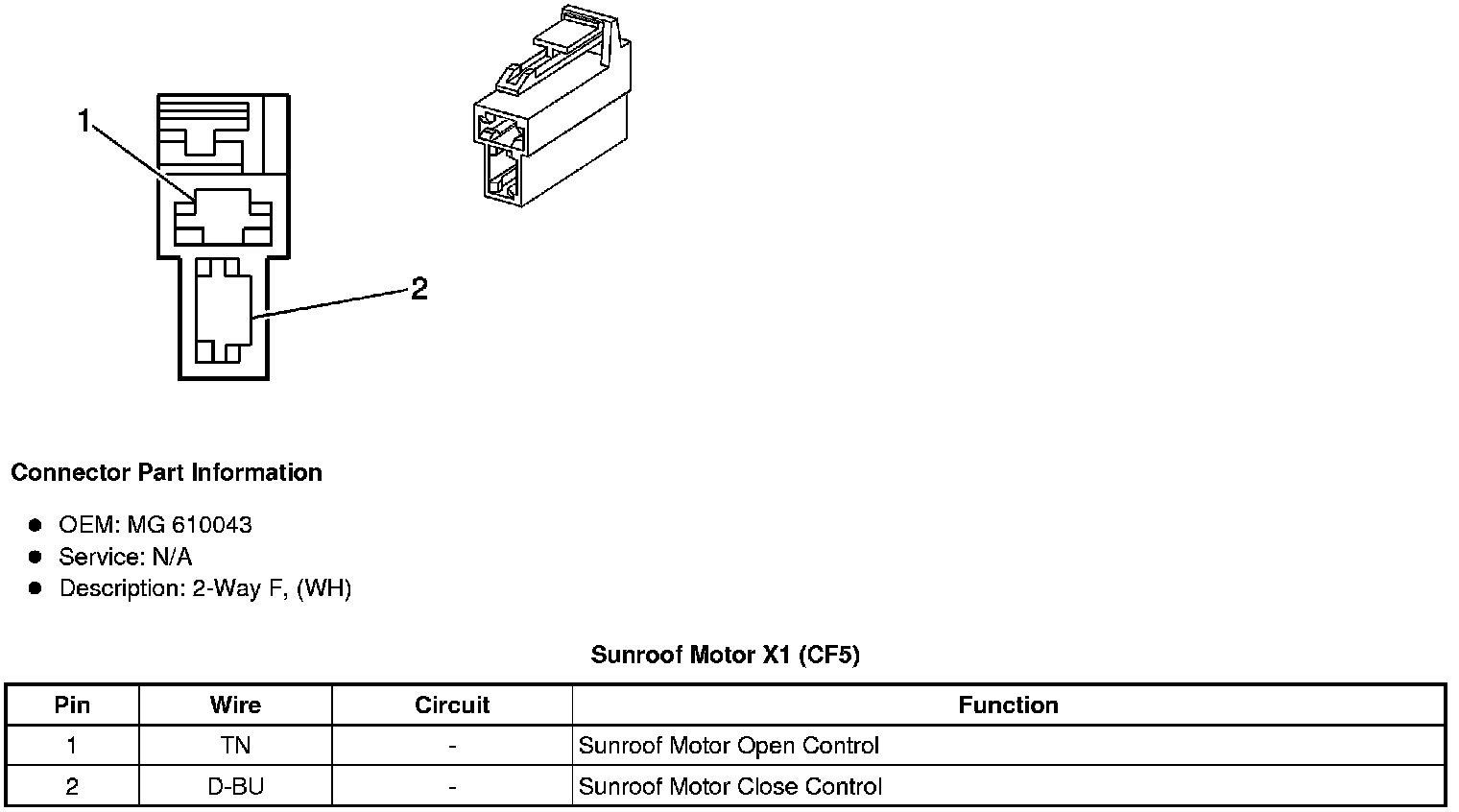

Sunroof Motor X1 (CF5)
Sunroof Motor X2 (CF5)
