Oil Level Sensor
Oil Level Sensor

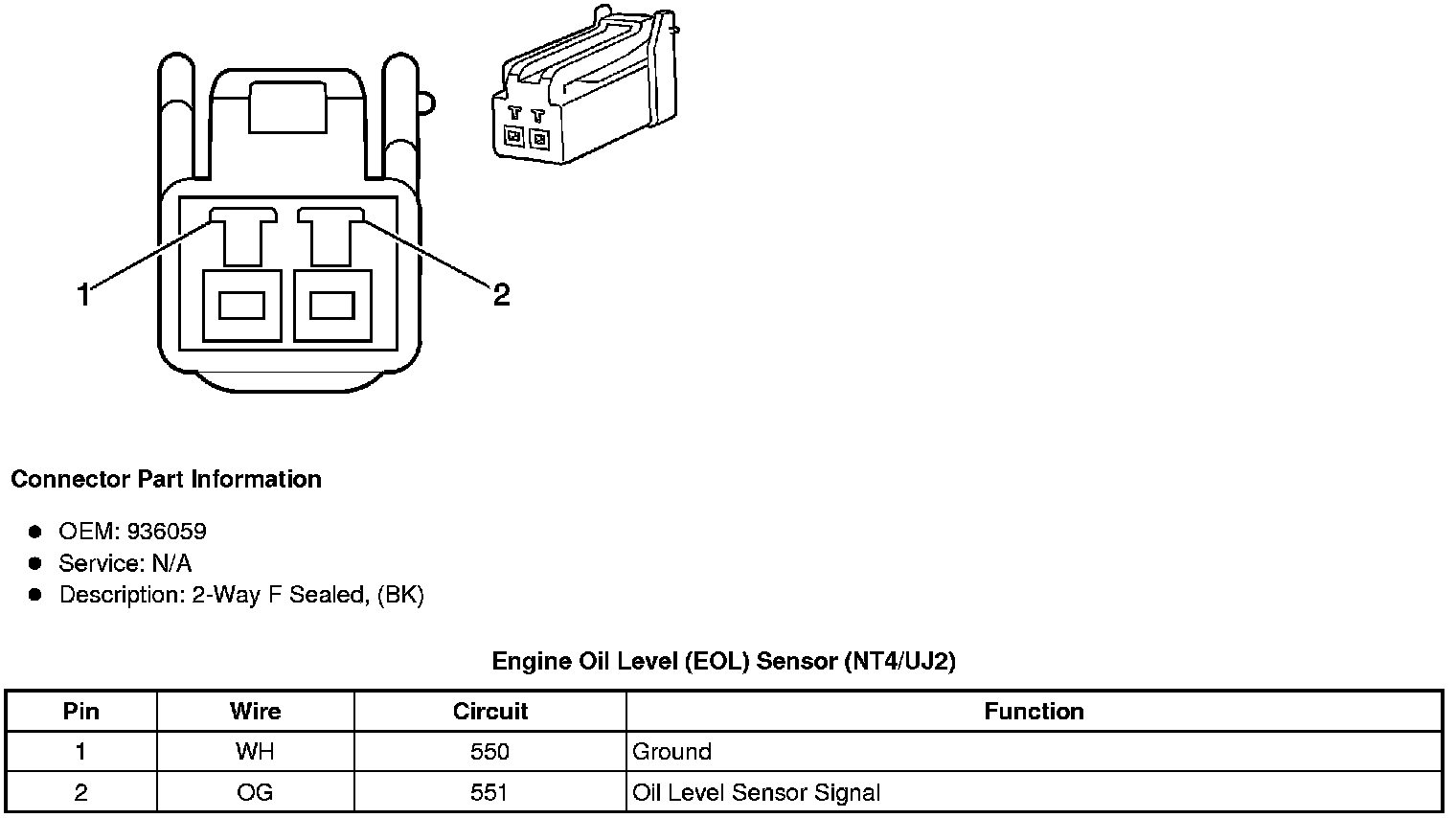

Component Connector End Views
Engine Oil Level (EOL) Sensor (NT4/UJ2)
