Ignition Switch




Component Connector End Views

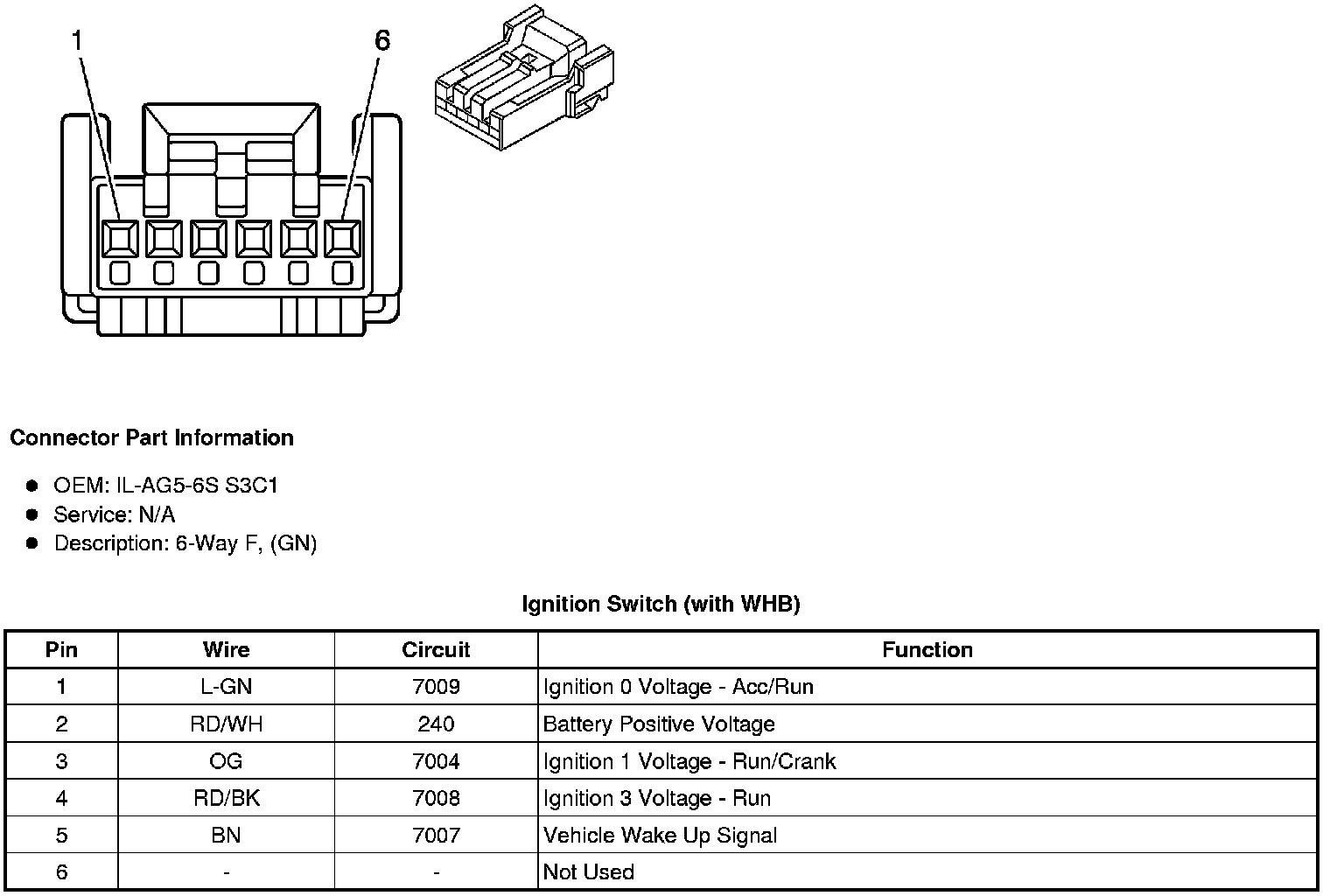

Ignition Switch (with WHB)

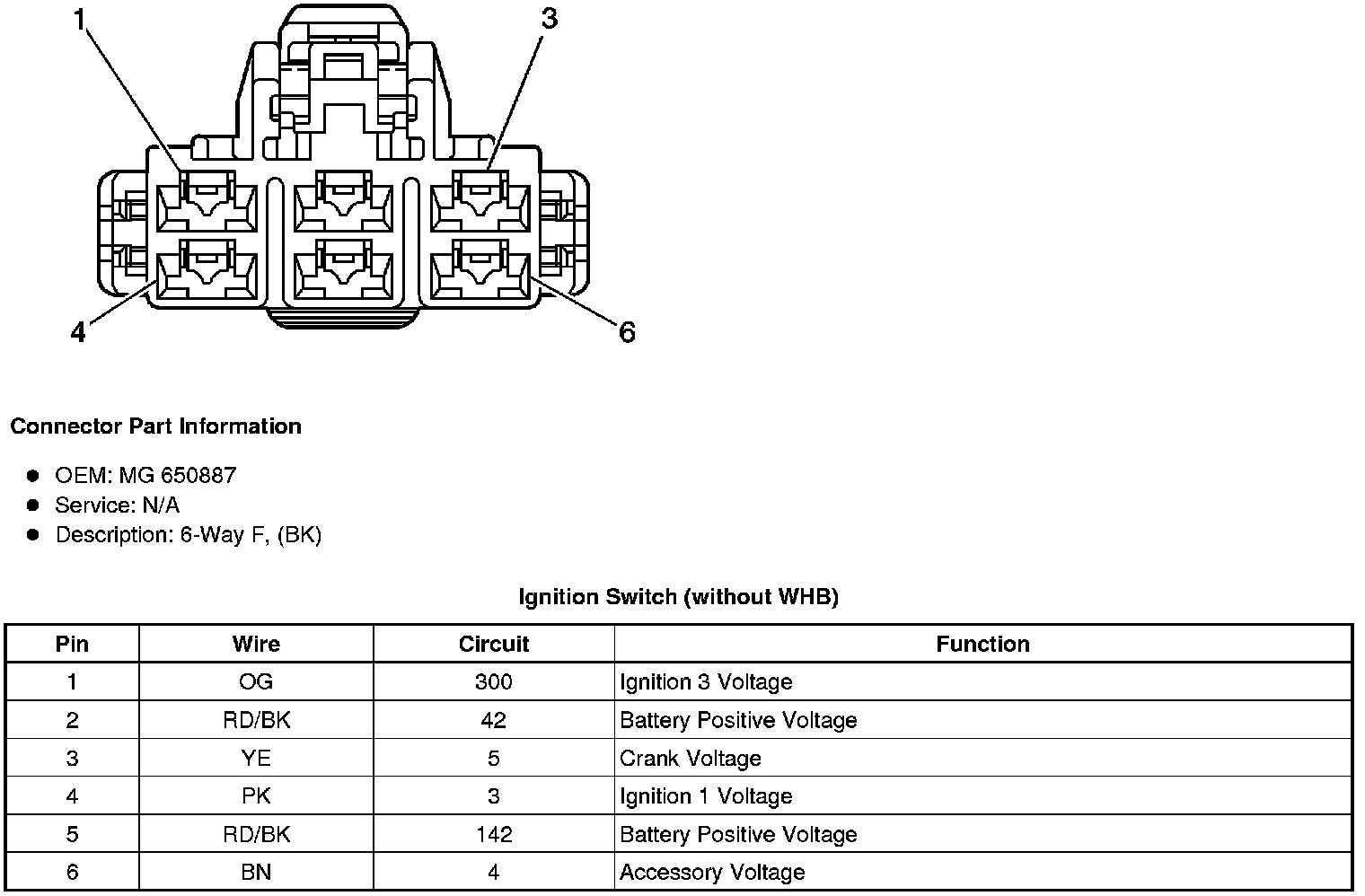

Ignition Switch (without WHB)
