Multiple Junction Connector
>>
X500 - X599
>>
X500
X500

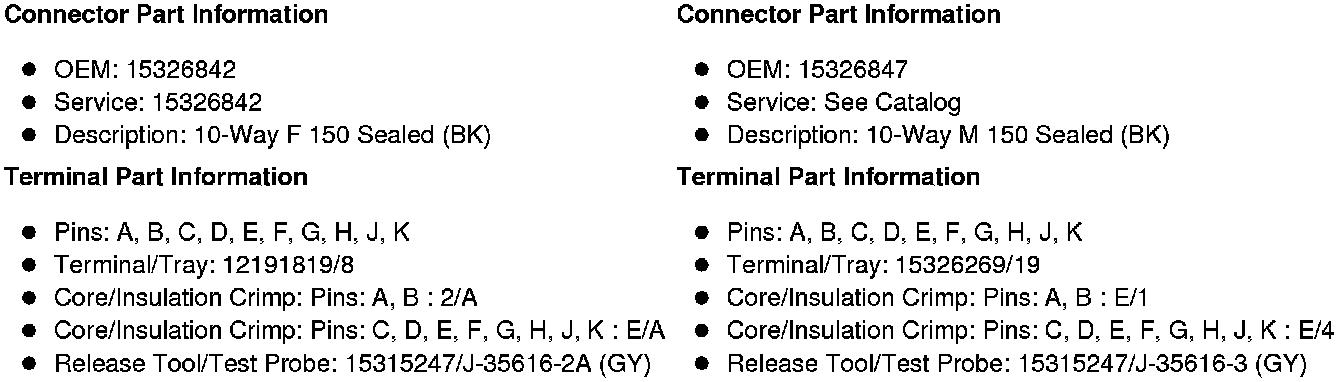

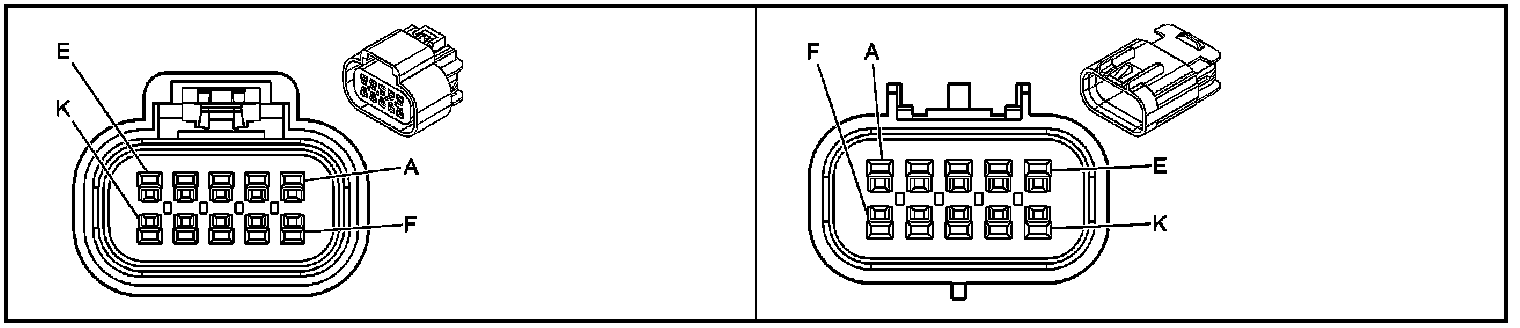

Inline Harness Connector End Views

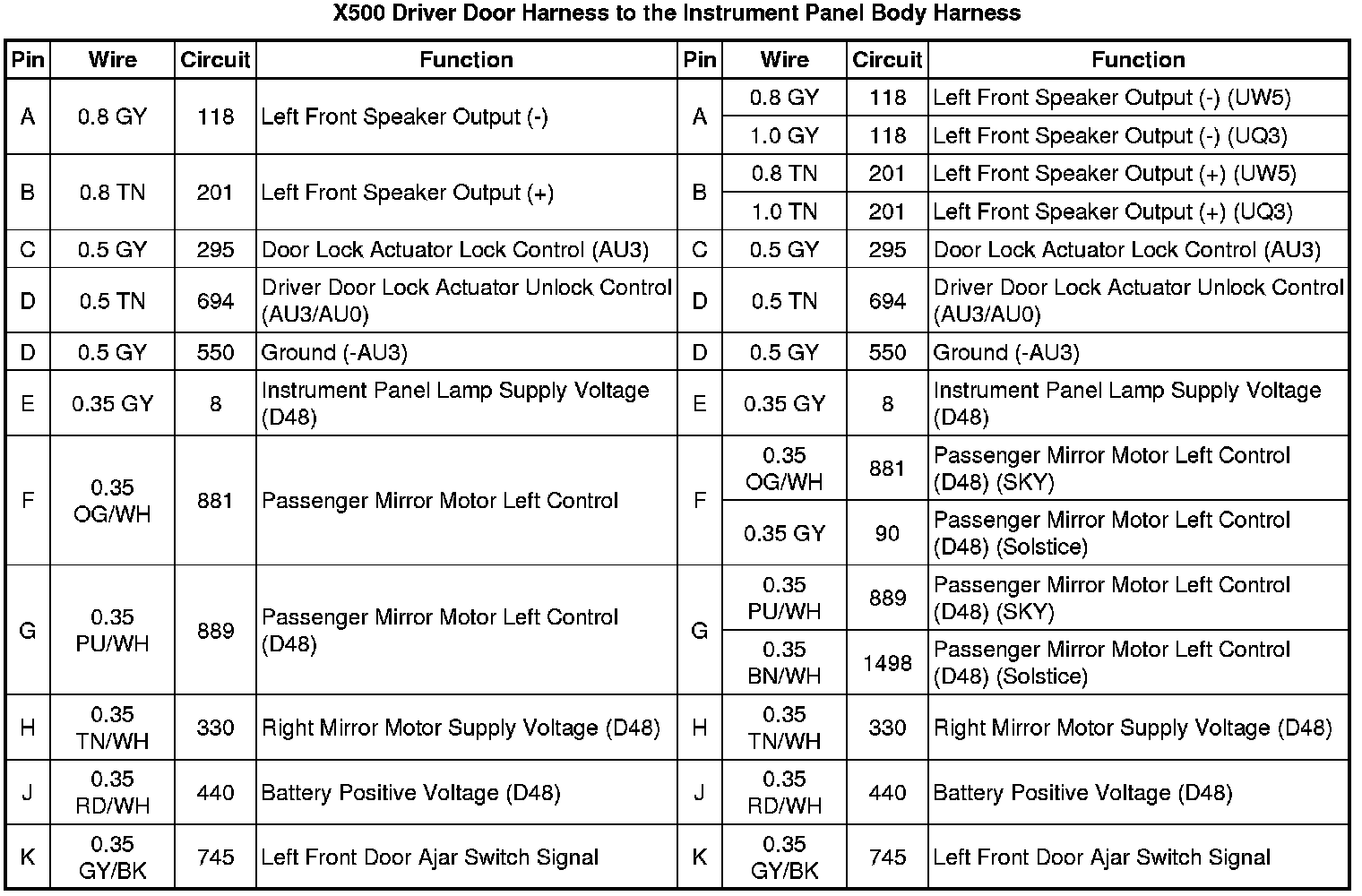

X500 Driver Door Harness to the Instrument Panel Body Harness
