Pontiac
>>
2008
>>
G8 V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seats
>>
System Diagram
>>

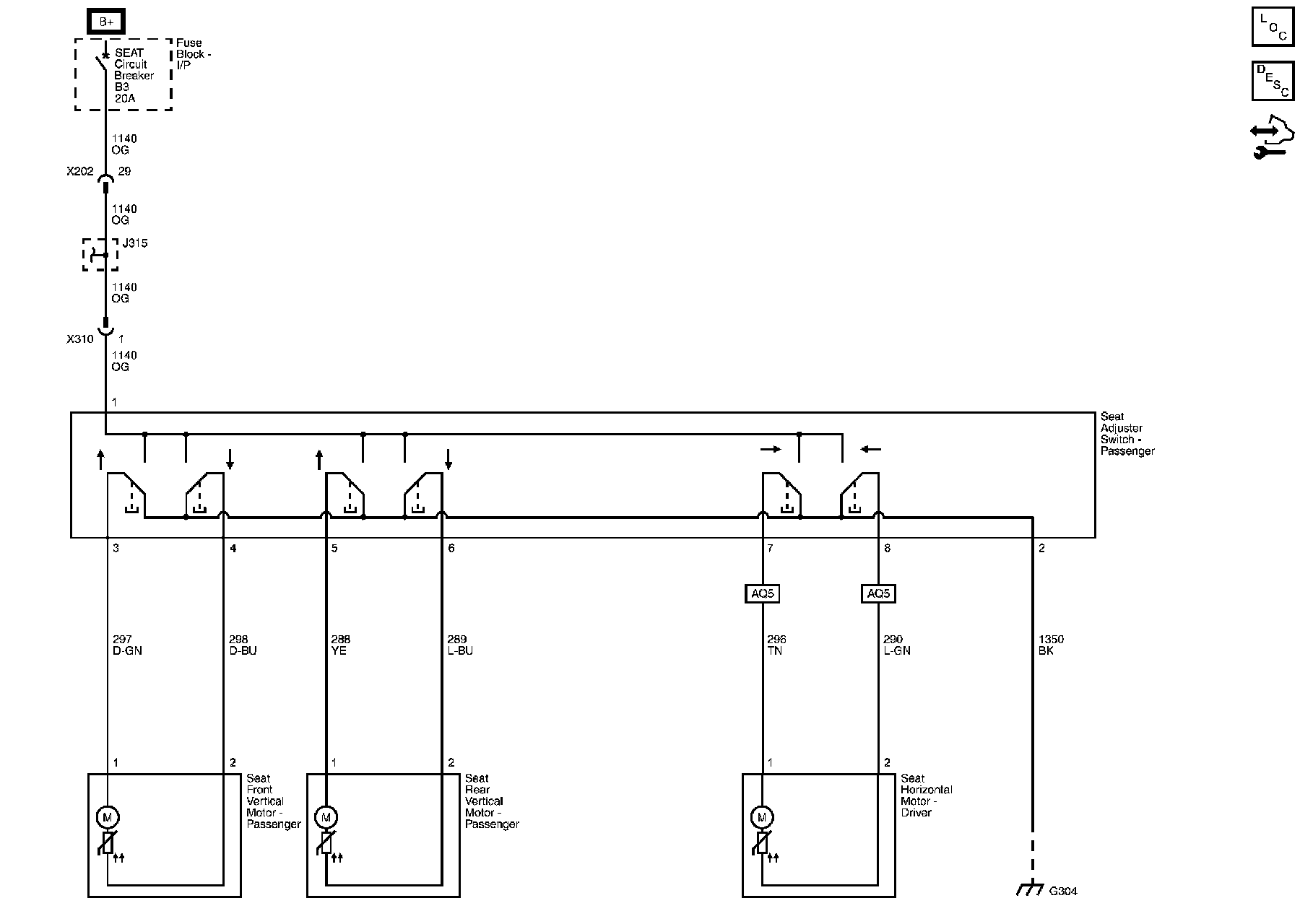

Passenger Seat Schematics
Passenger Seat Schematics
Passenger Seat Schematics
