Multiple Junction Connector
>>
X600 - X699
X600 - X699
Inline Harness Connector End Views

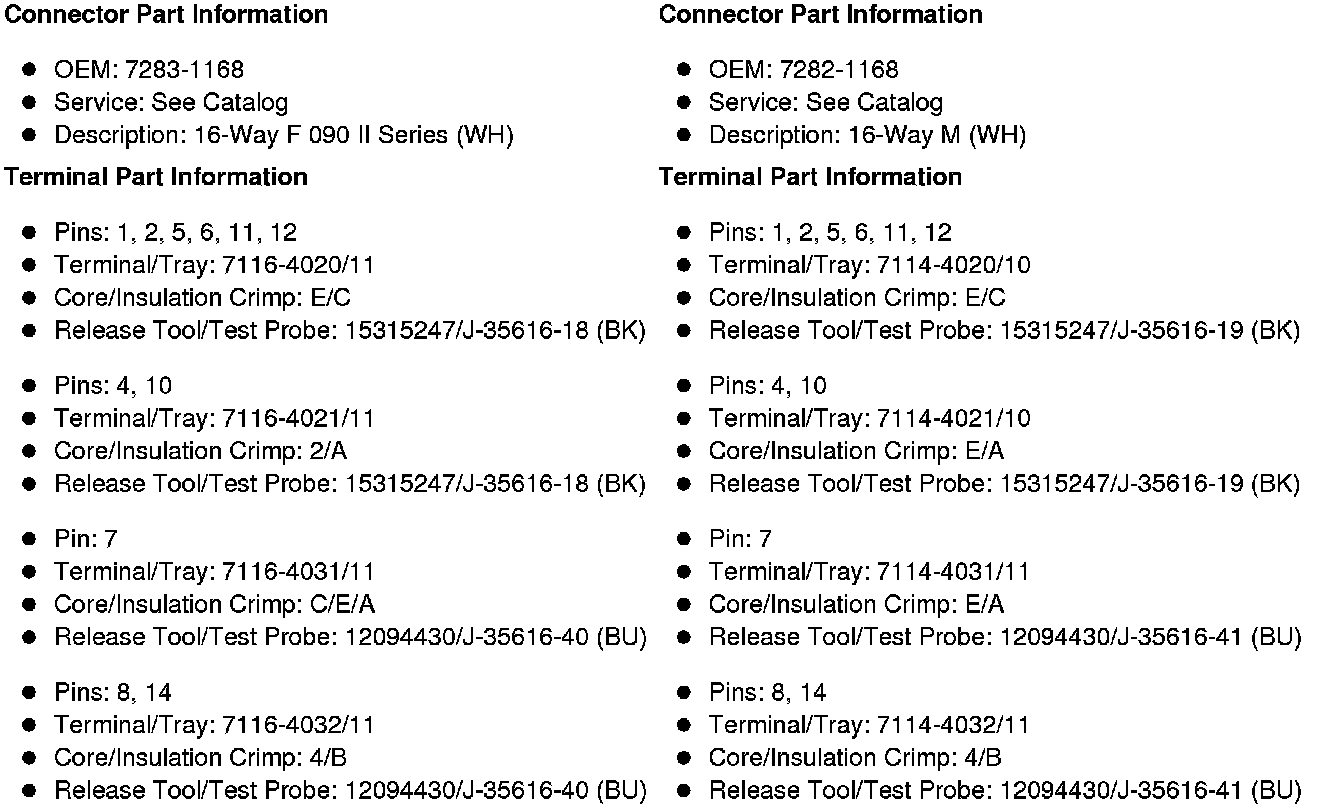

X600 Body Harness to the Right Front Door Harness
