Home
>>
Pontiac
>>
2008
>>
G8 V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Automatic Transmission/Transaxle
>>
Transmission Position Sensor/Switch, A/T
Transmission Position Sensor/Switch, A/T

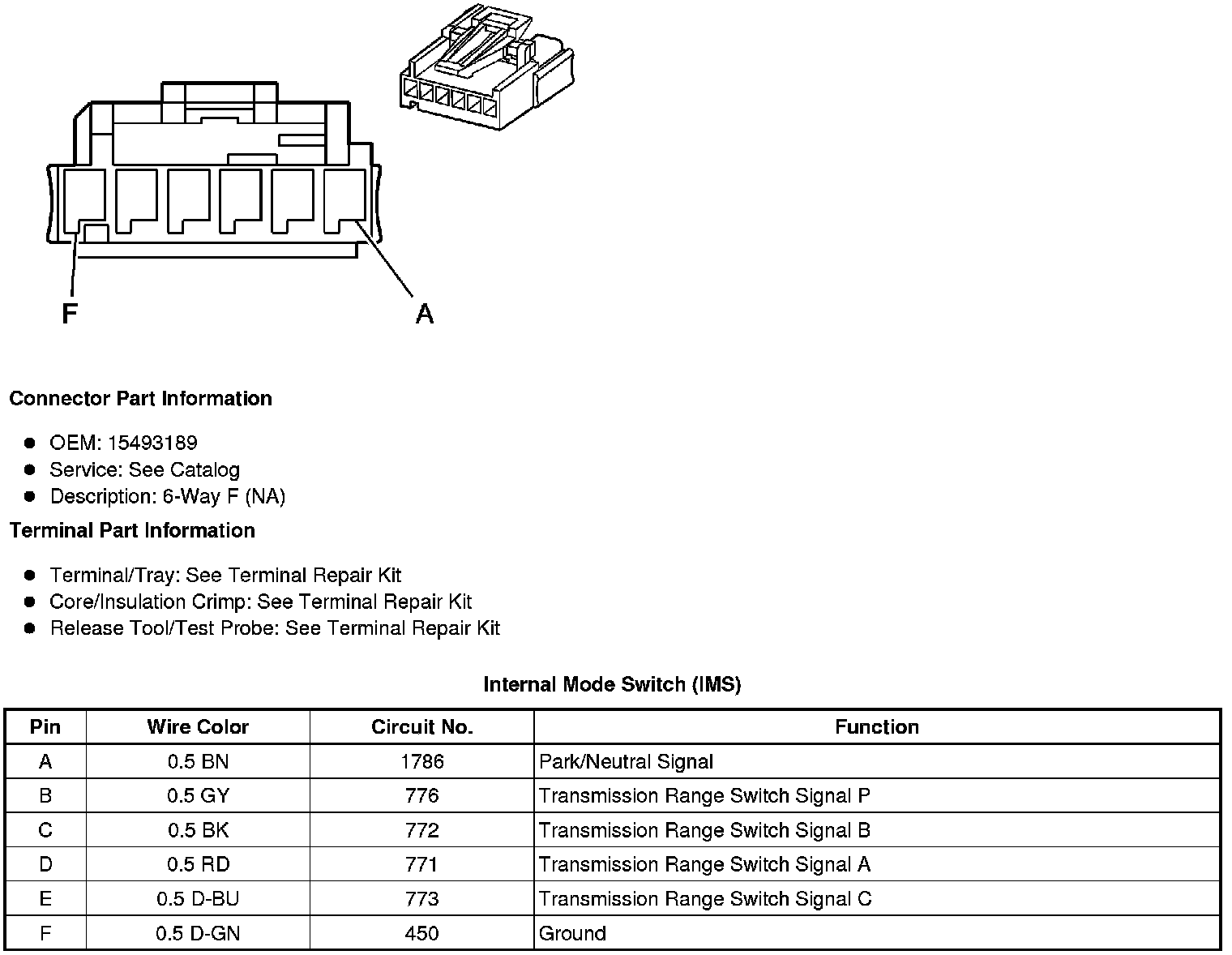

Component Connector End Views
Internal Mode Switch (IMS)
