X104
X104

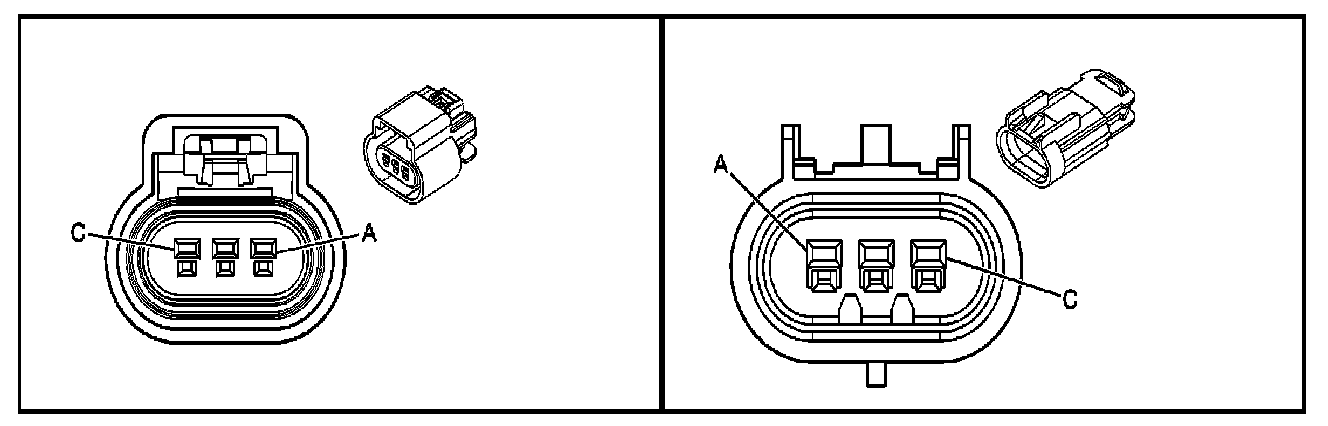

Inline Harness Connector End Views

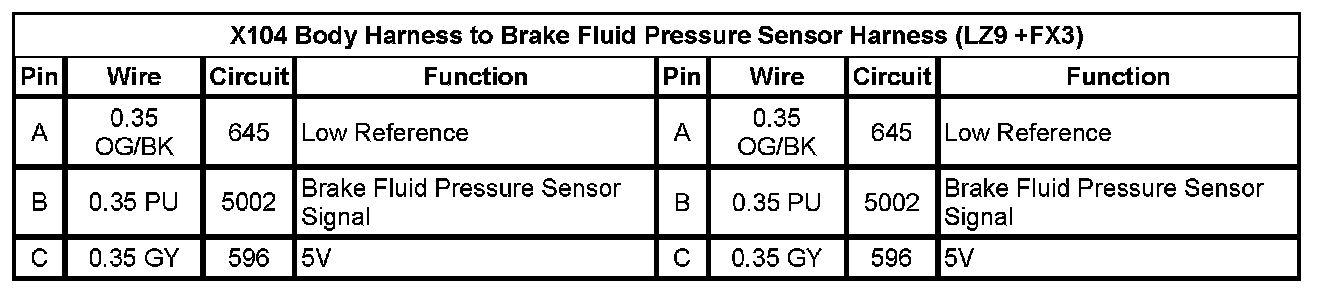

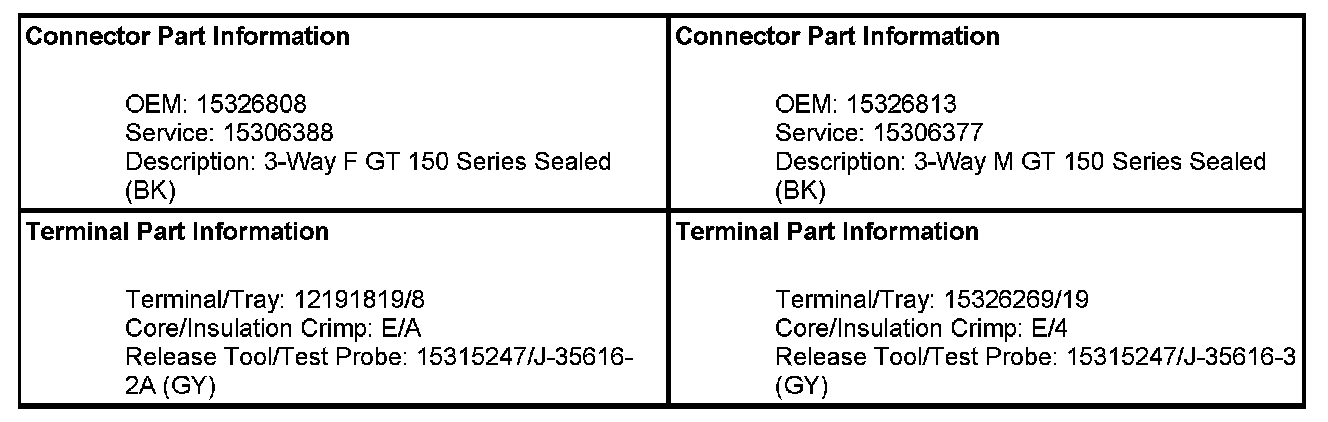

X104 Body Harness to Brake Fluid Pressure Sensor Harness (LZ9 +FX3)
