Home
>>
Pontiac
>>
2008
>>
G6 V6-3.6L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
Diagrams
>>
X100 - X199
>>
X102
X102

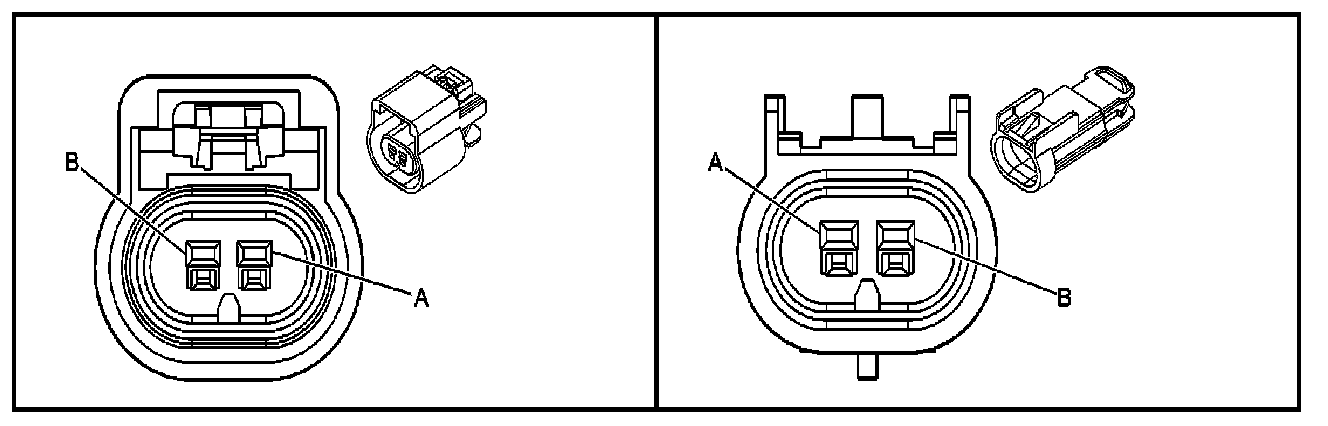

Inline Harness Connector End Views

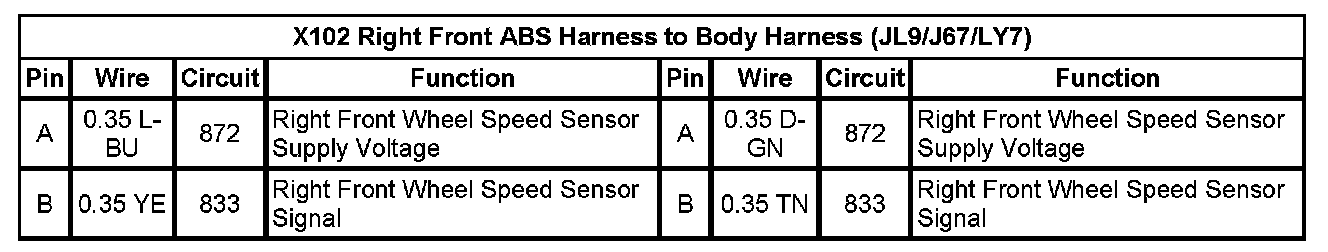

X102 Right Front ABS Harness to Body Harness (JL9/J67/LY7)
