X101
X101

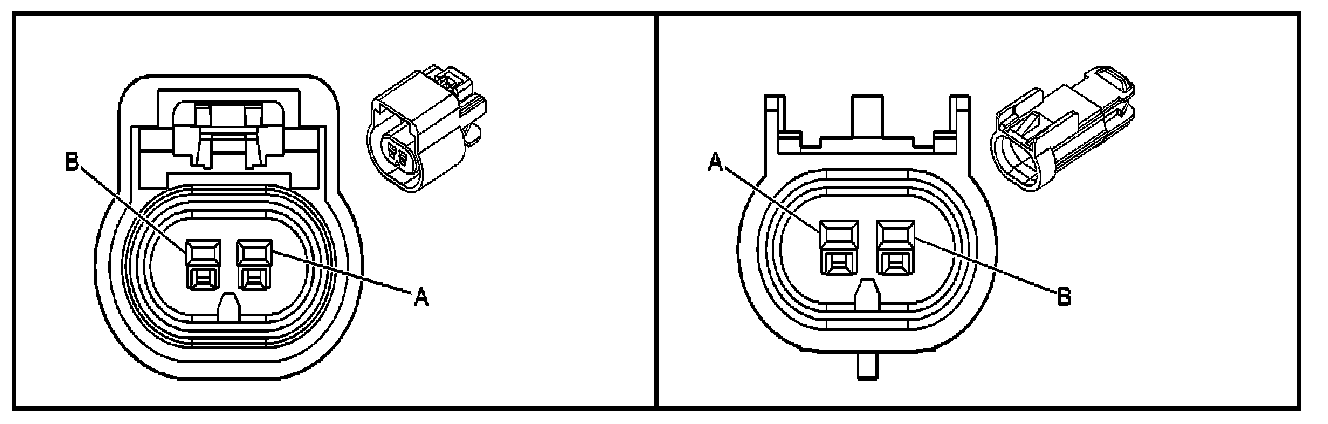

Inline Harness Connector End Views

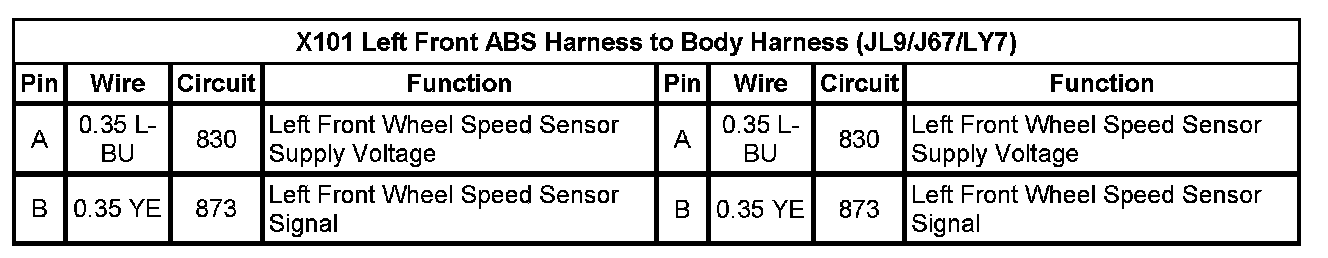

X101 Left Front ABS Harness to Body Harness (JL9/J67/LY7)
