Variable Valve Timing Solenoid

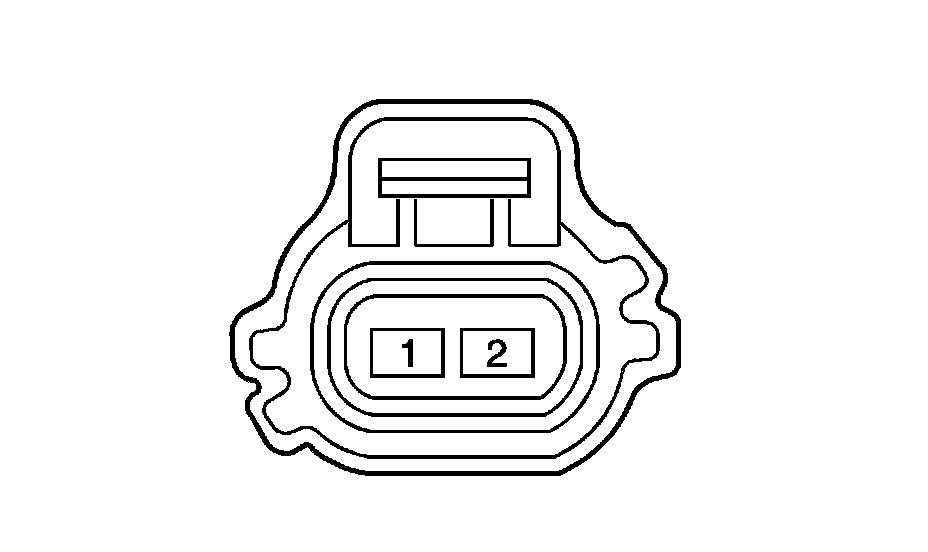

Component Connector End Views

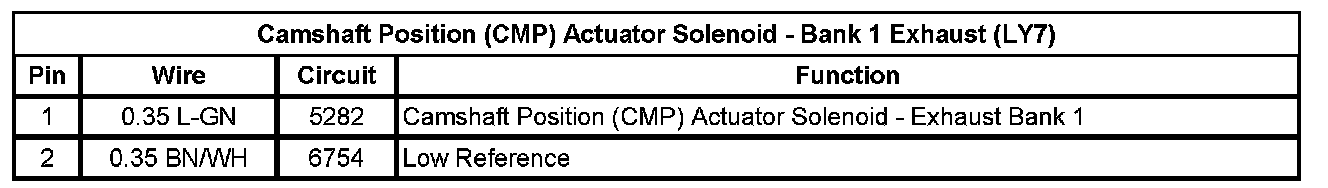

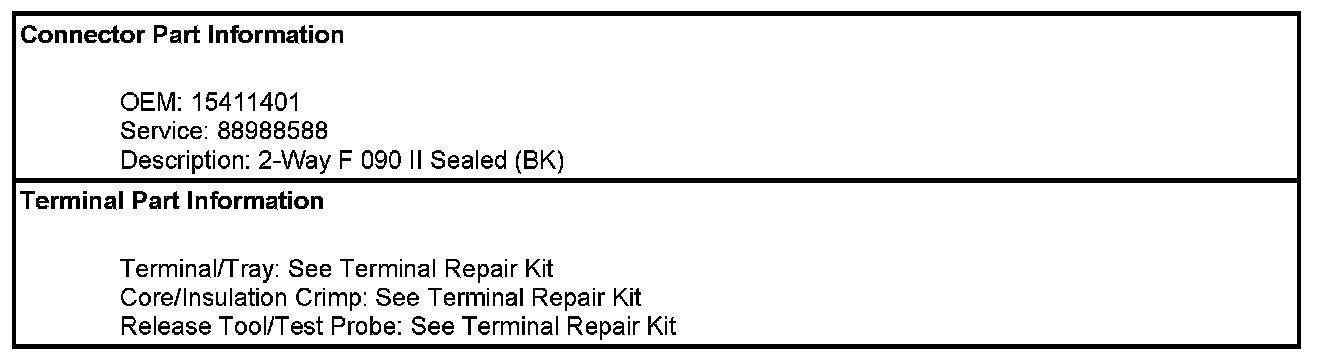

Camshaft Position (CMP) Actuator Solenoid - Bank 1 Exhaust (LY7)

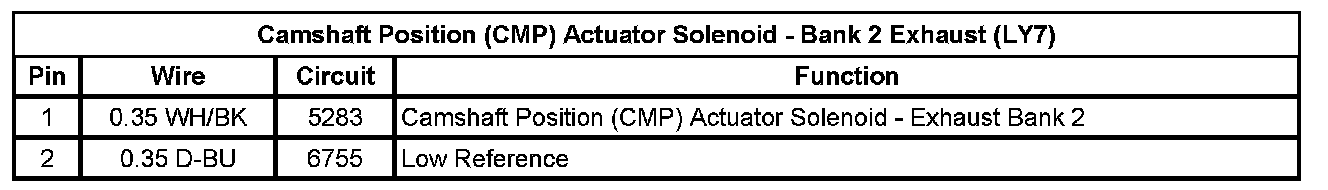

Camshaft Position (CMP) Actuator Solenoid - Bank 2 Exhaust (LY7)

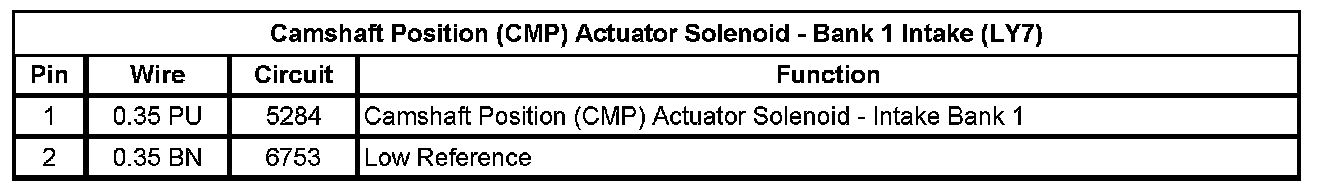

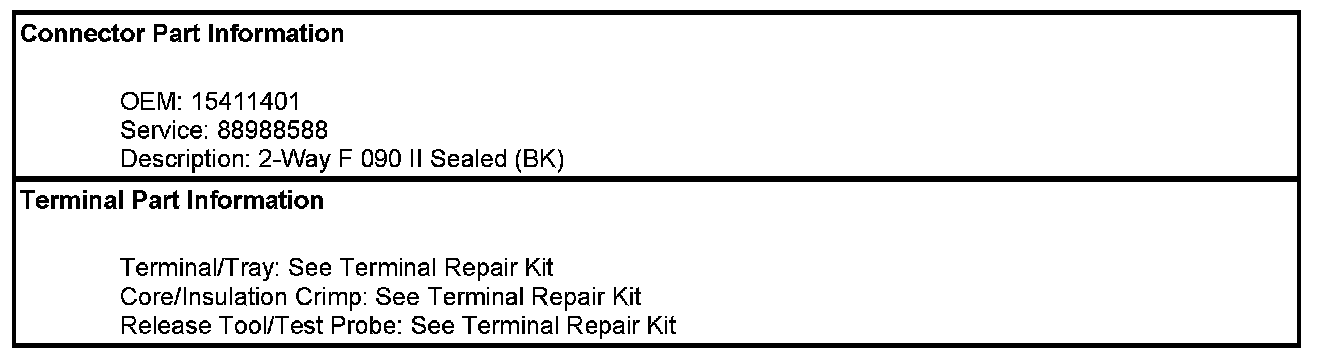

Camshaft Position (CMP) Actuator Solenoid - Bank 1 Intake (LY7)

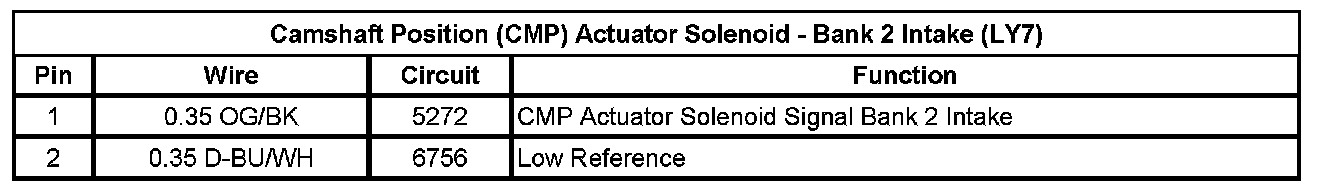

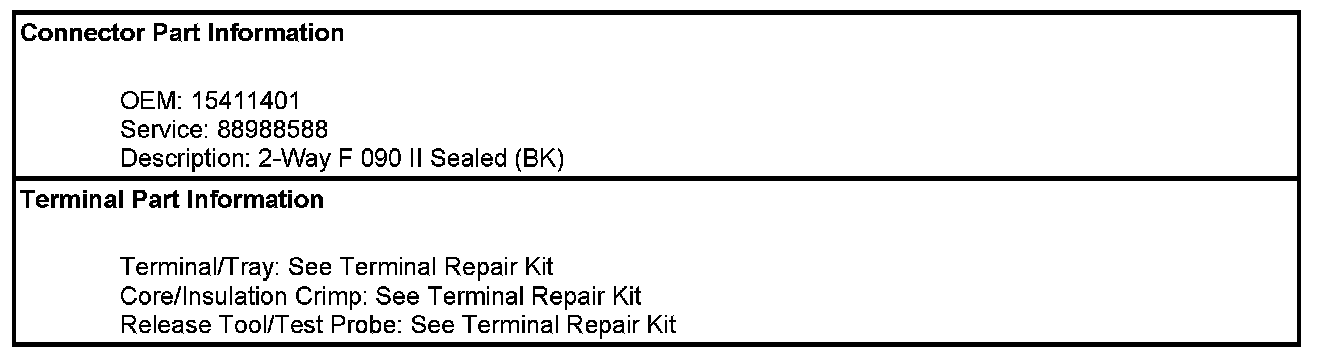

Camshaft Position (CMP) Actuator Solenoid - Bank 2 Intake (LY7)
