Pedal Positioning Sensor
Pedal Positioning Sensor
Component Connector End Views

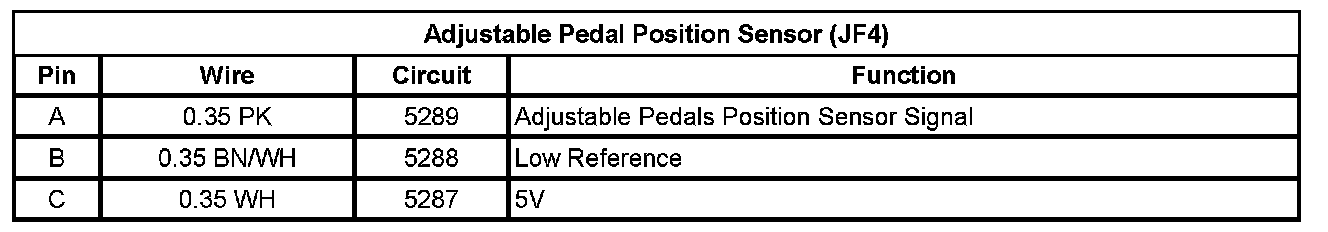

Adjustable Pedal Position Sensor (JF4)

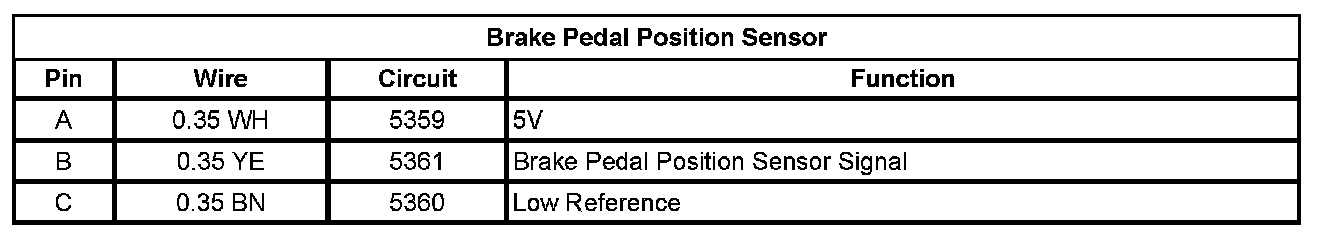

Brake Pedal Position Sensor
