Pontiac
>>
2008
>>
G6 L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cooling System
>>
System Diagram
System Diagram

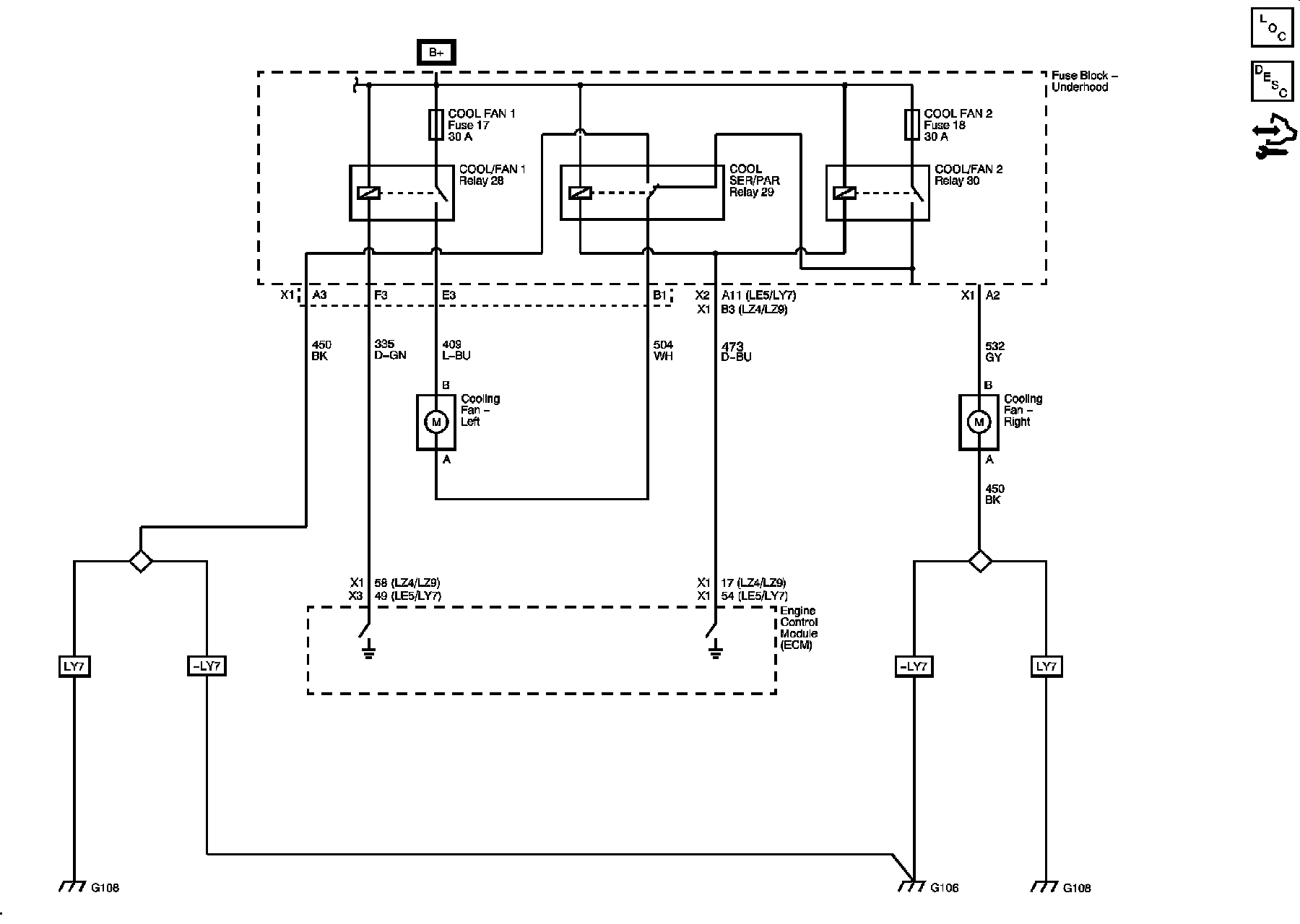

Engine Cooling Schematics
Cooling Fans
