Trunk / Liftgate Latch
Trunk / Liftgate Latch
Component Connector End Views - Continued

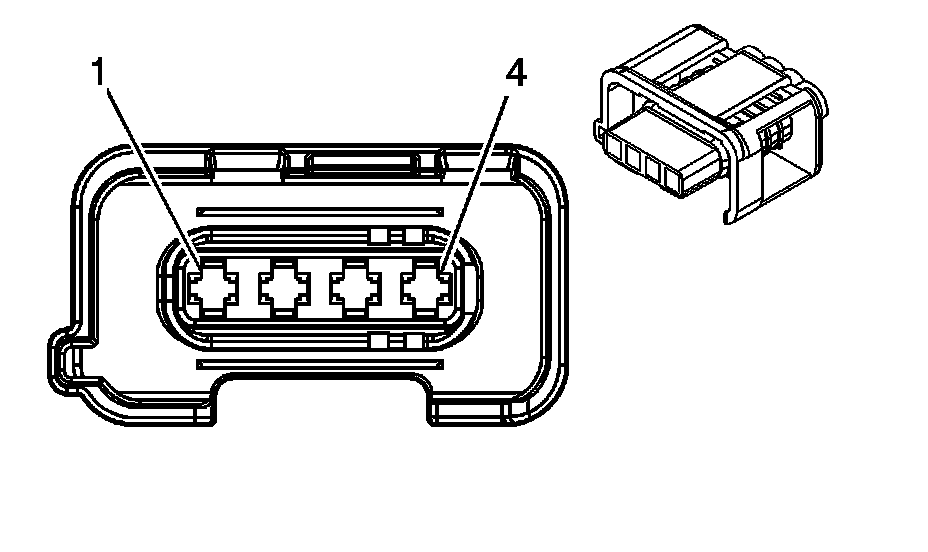

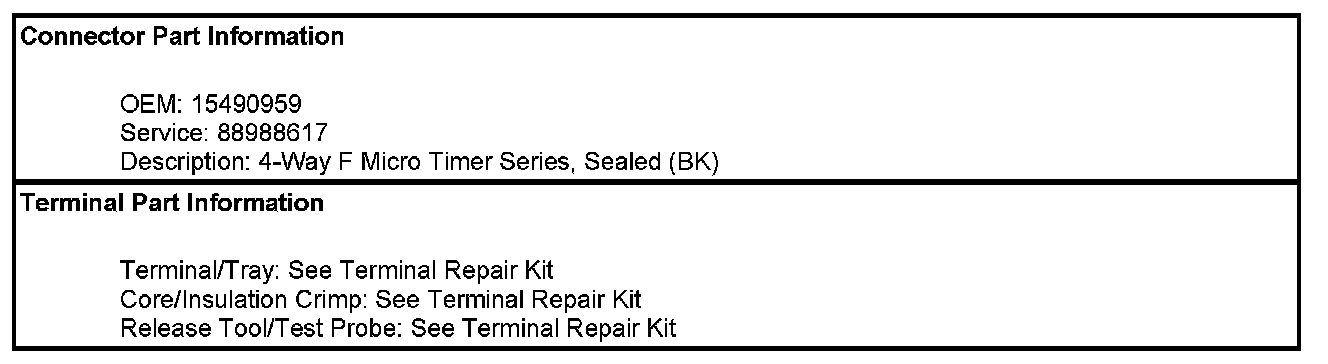

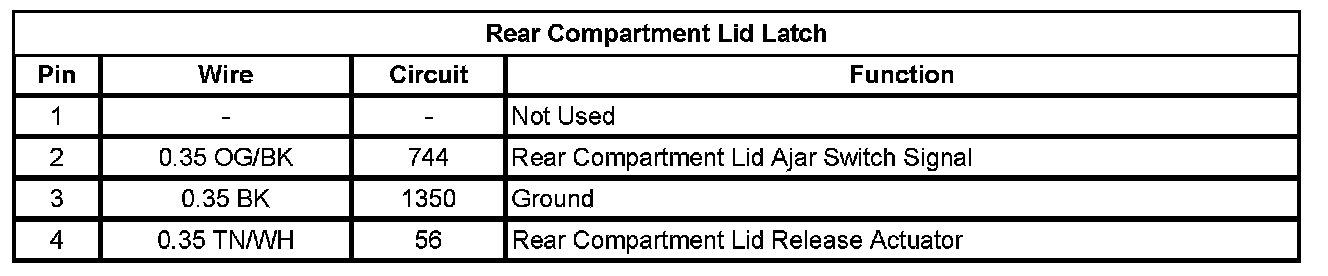

Rear Compartment Lid Latch
