G6 L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
X400 - X499
>>
X413
X413

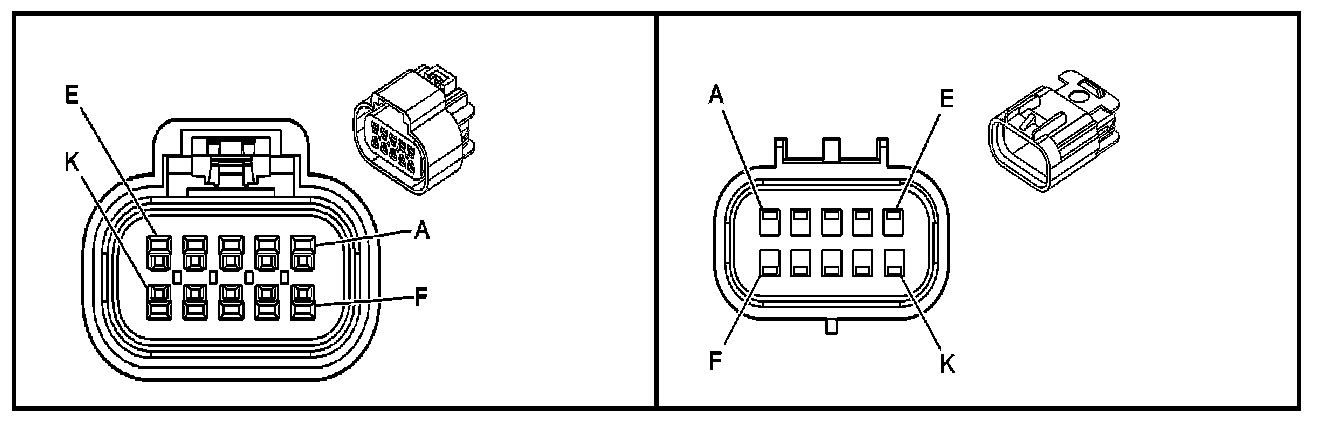

Inline Harness Connector End Views

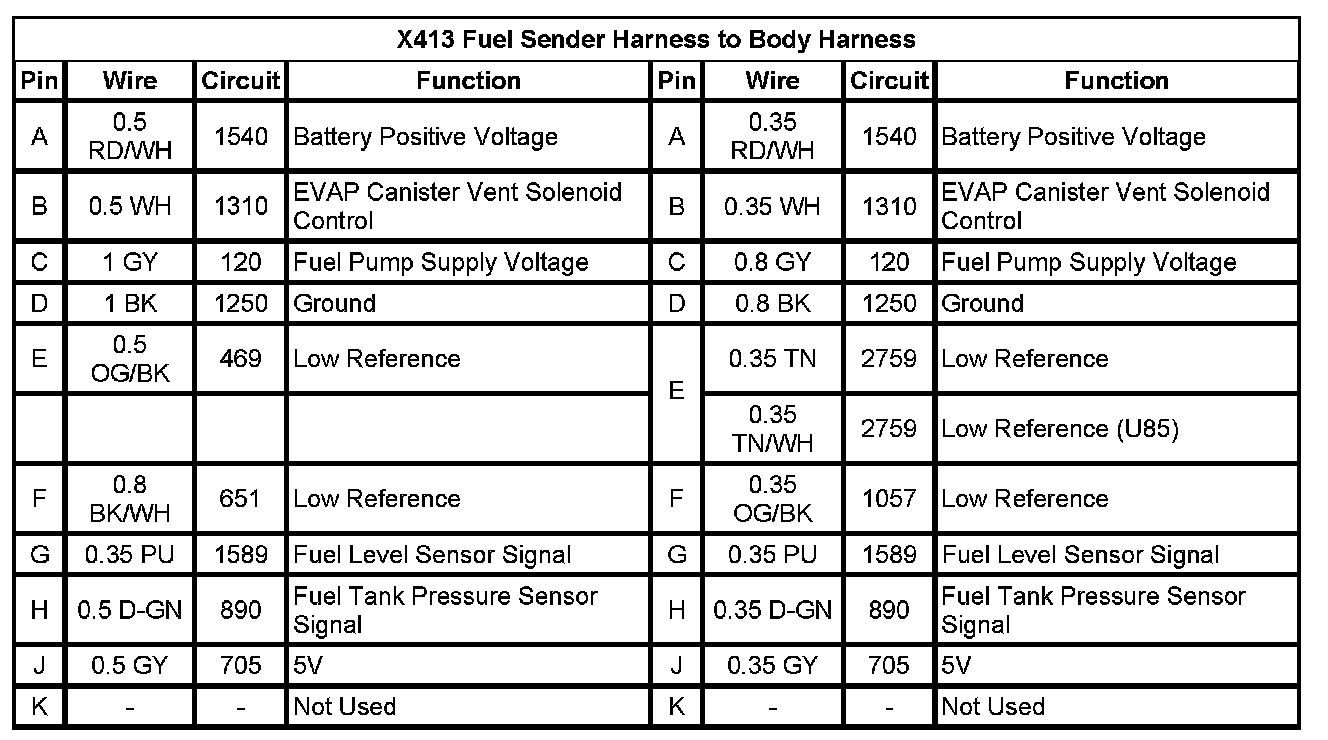

X413 Fuel Sender Harness to Body Harness
