Air Bag Deactivation Indicator: Diagrams

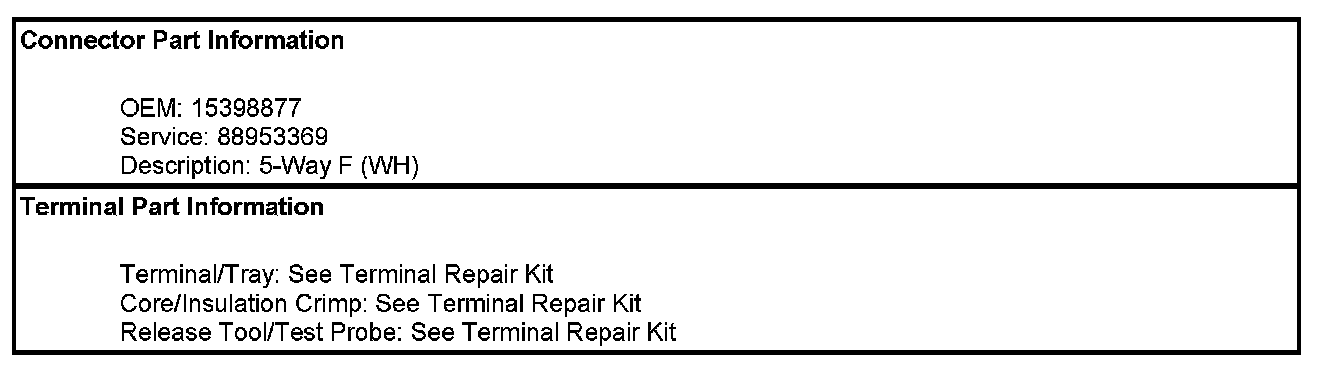

Component Connector End Views - Continued

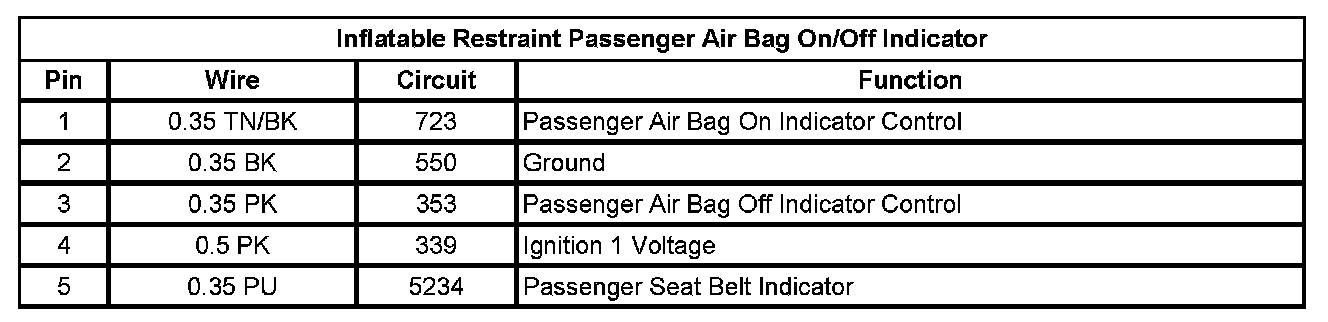

Inflatable Restraint Passenger Air Bag On/Off Indicator
