X202



Inline Harness Connector End Views

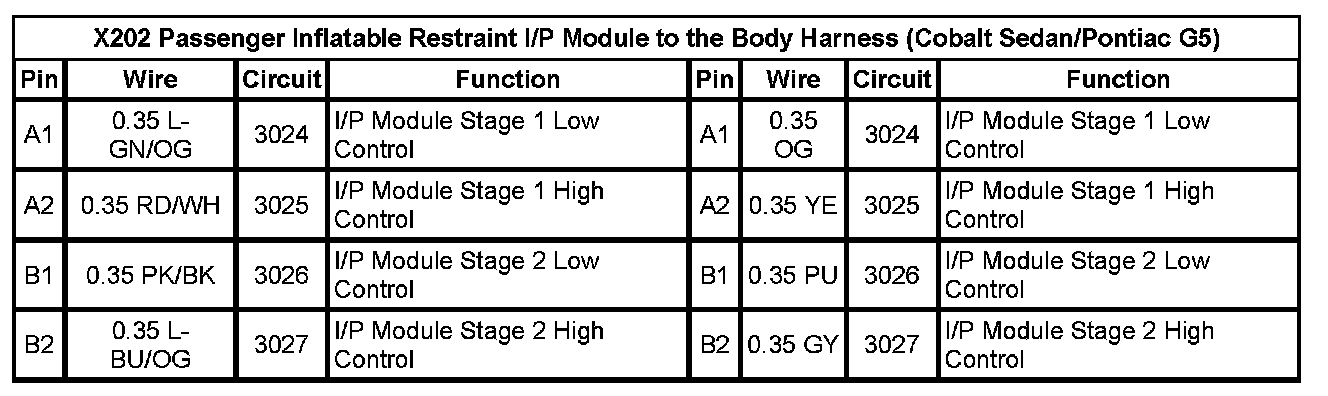

X202 Passenger Inflatable Restraint I/P Module to the Body Harness (Cobalt Sedan/Pontiac G5)
