X494

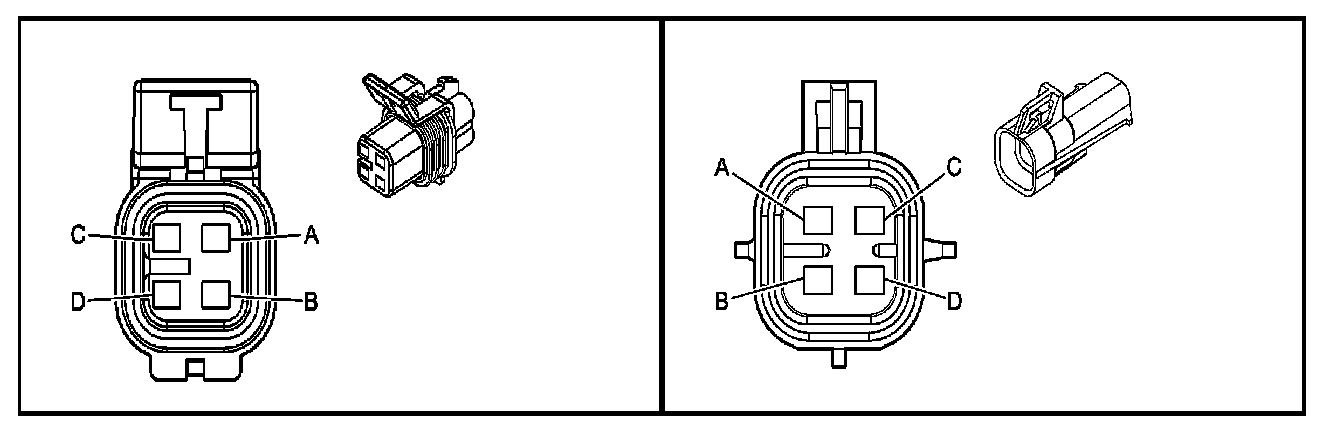

Inline Harness Connector End Views

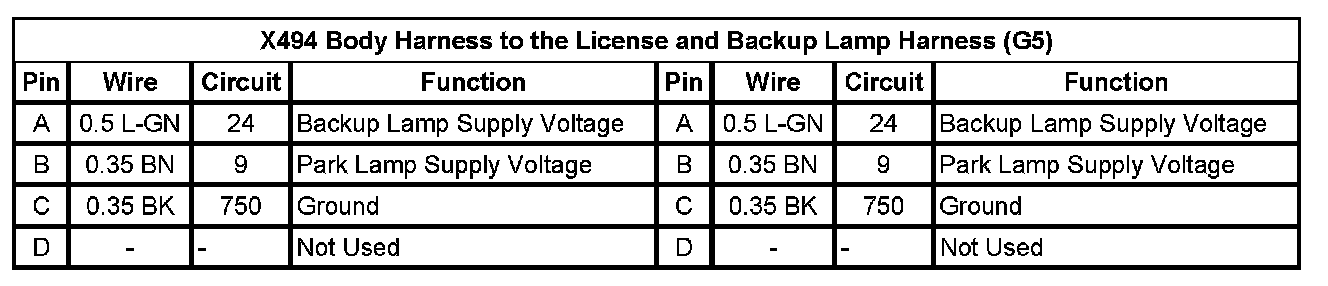

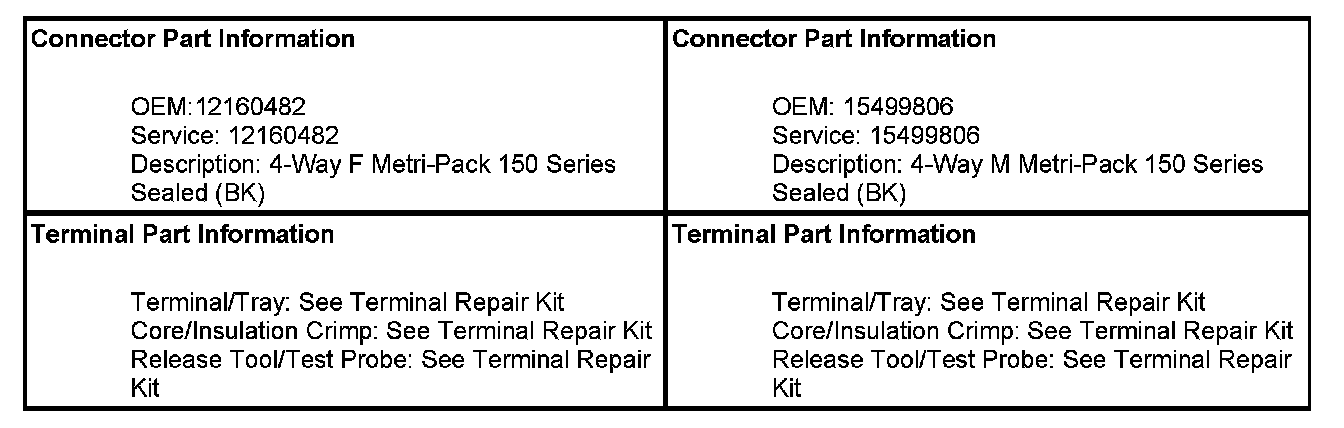

X494 Body Harness to the License and Backup Lamp Harness (G5)
