Multiple Junction Connector
>>
X400 - X499
>>
X495
X495

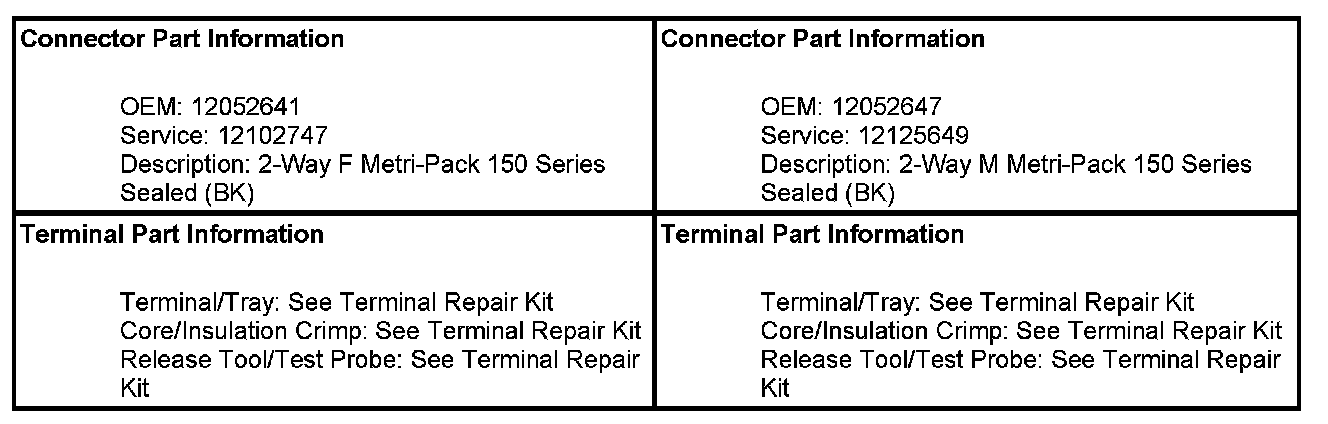

Inline Harness Connector End Views

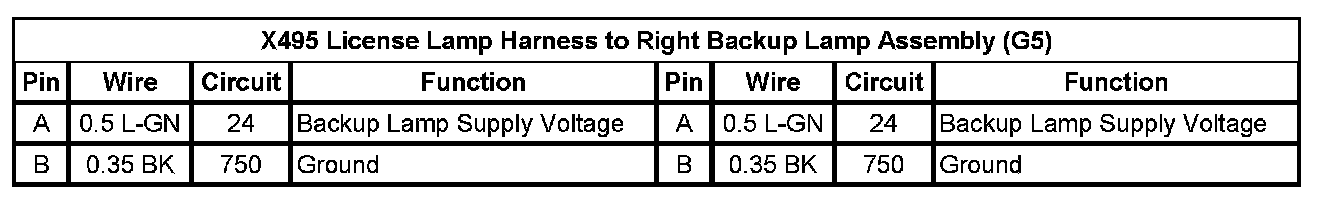

X495 License Lamp Harness to Right Backup Lamp Assembly (G5)
