Pontiac
>>
2008
>>
G5 L4-2.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
X400 - X499
>>
X493
X493

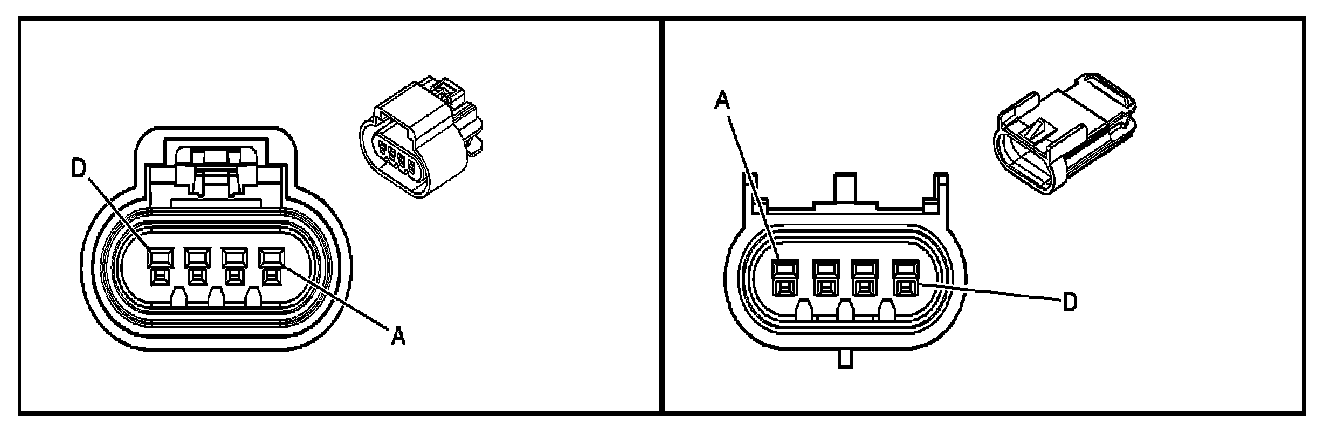

Inline Harness Connector End Views

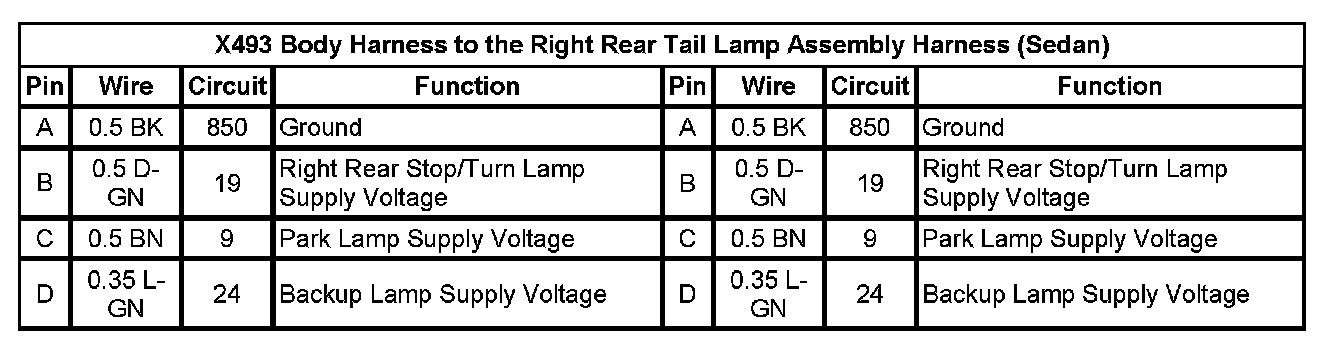

X493 Body Harness to the Right Rear Tail Lamp Assembly Harness (Sedan)
