X492
X492
Inline Harness Connector End Views

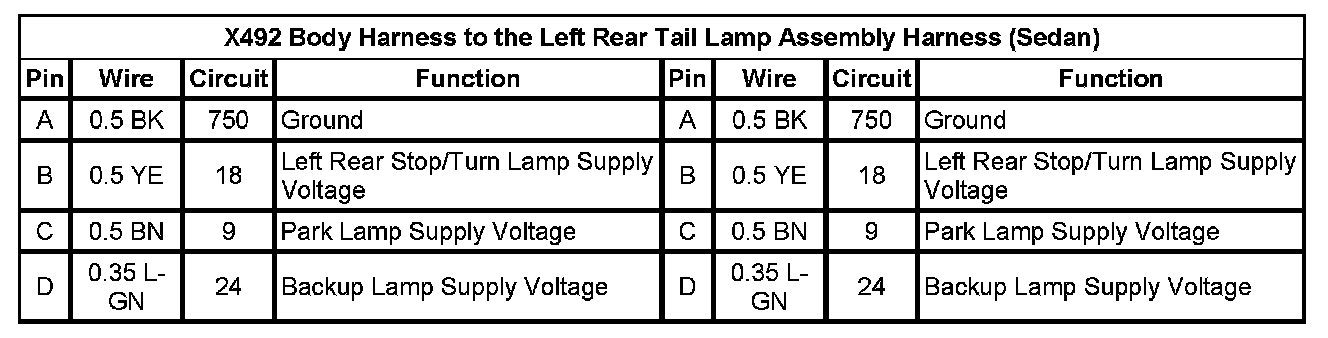

X492 Body Harness to the Left Rear Tail Lamp Assembly Harness (Sedan)
