G5 L4-2.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
X300 - X399
>>
X315
X315

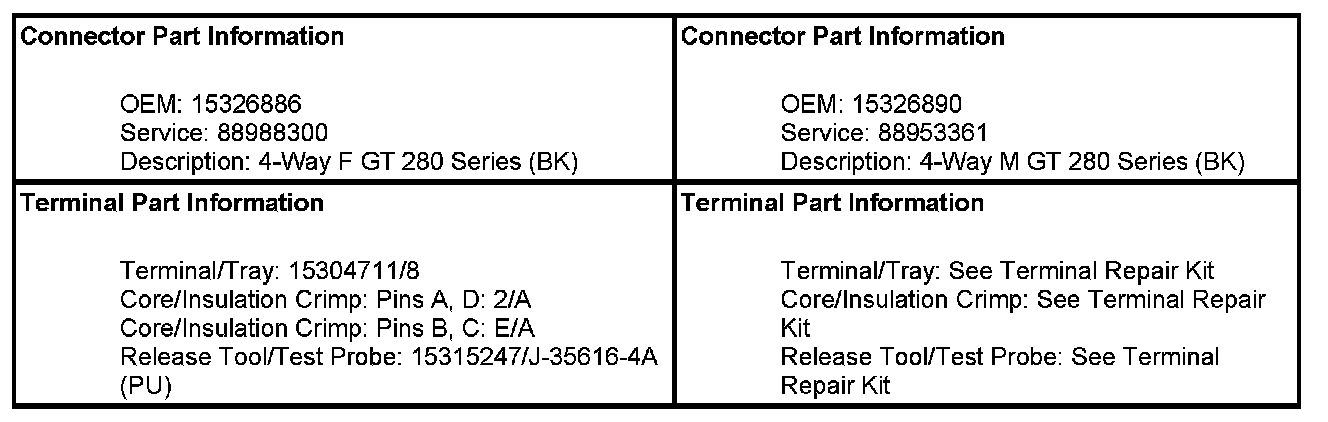

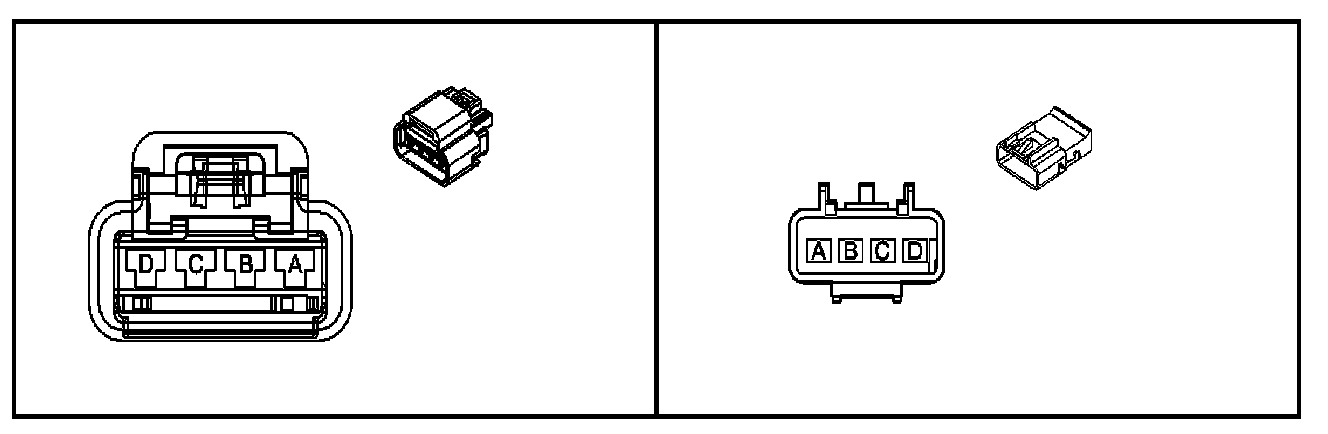

Inline Harness Connector End Views

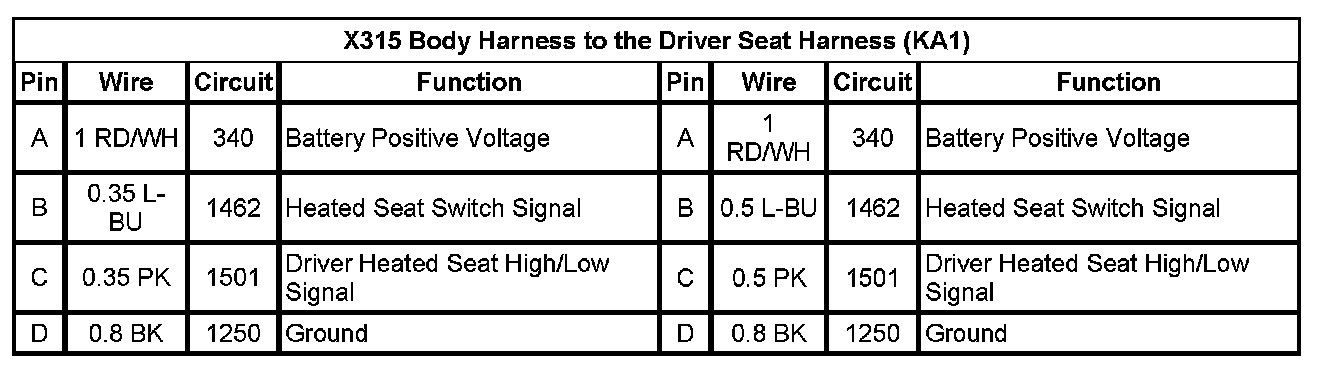

X315 Body Harness to the Driver Seat Harness (KA1)
