Clockspring Assembly / Spiral Cable, Air Bag

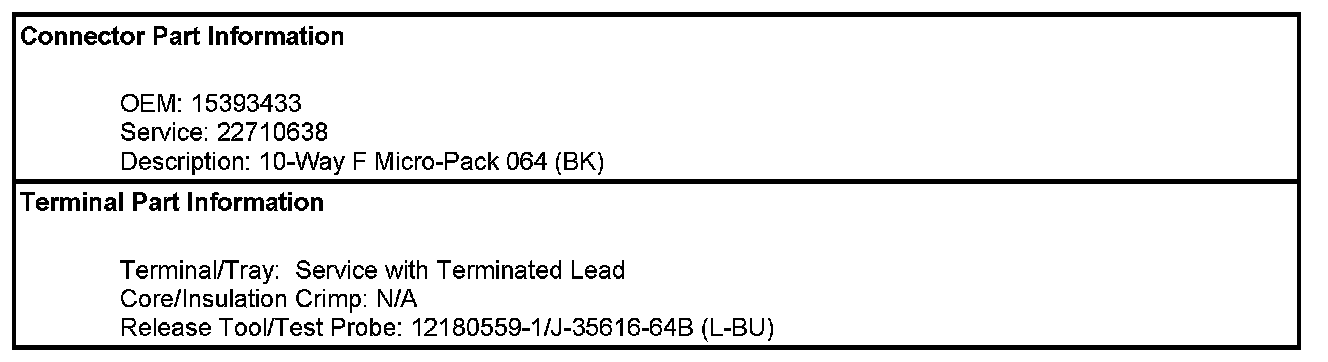

Component Connector End Views - Continued

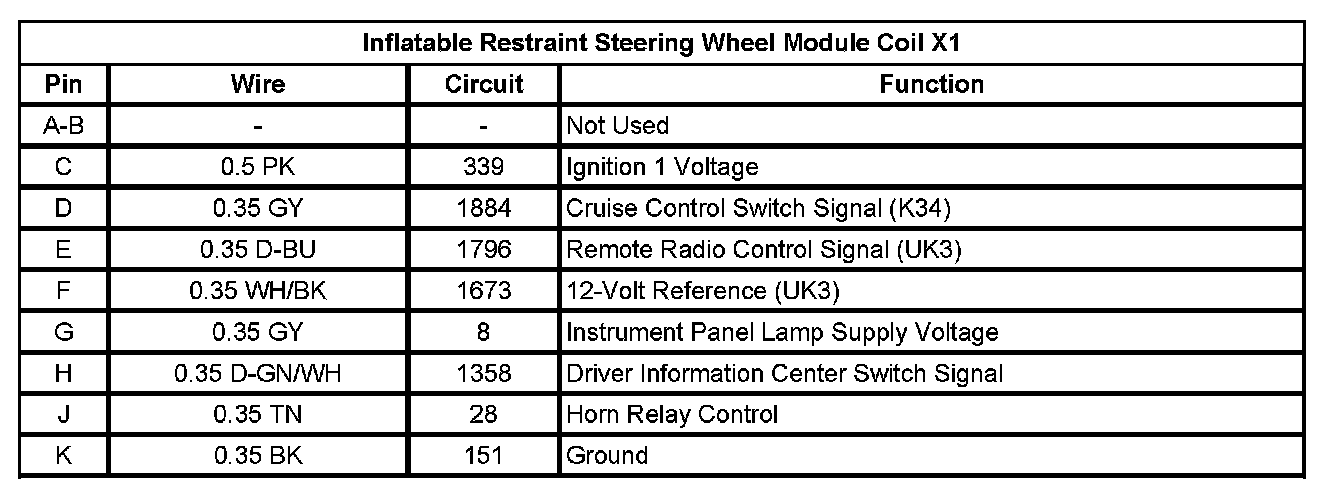

Inflatable Restraint Steering Wheel Module Coil X1

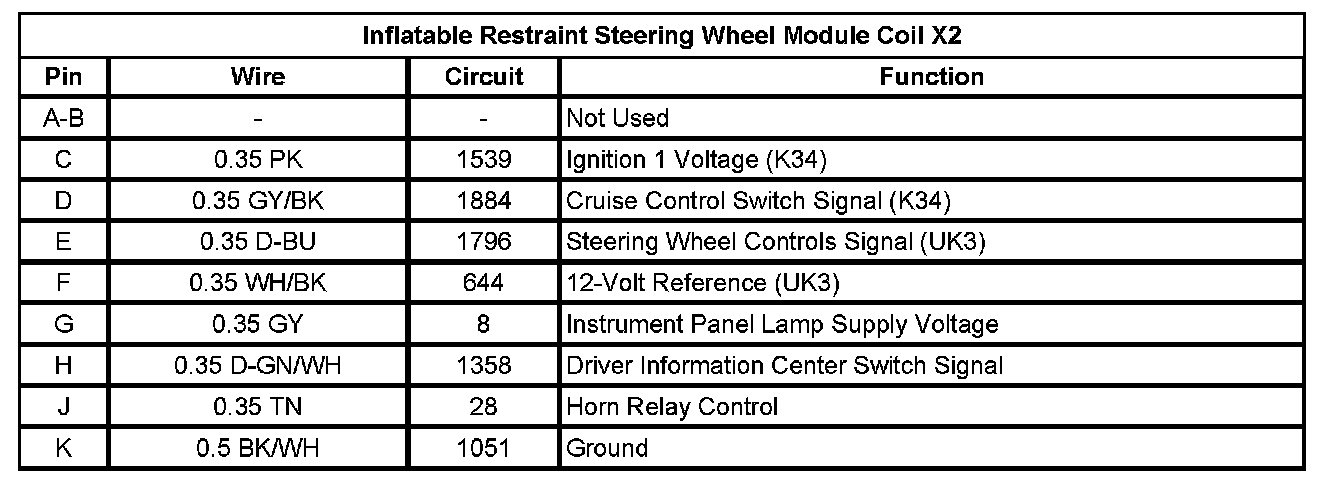

Inflatable Restraint Steering Wheel Module Coil X2
Inflatable Restraint Steering Wheel Module Coil X3
Component Connector End Views - Continued
Inflatable Restraint Steering Wheel Module Coil X1
Inflatable Restraint Steering Wheel Module Coil X2
Inflatable Restraint Steering Wheel Module Coil X3
